37 - WIRING HARNESS - 37.2 - BODY WIRING HARNESS of McLaren McLaren Ultimate Series McLaren Senna

View All

McLaren Ultimate Series McLaren Senna - 37 - WIRING HARNESS - 37.2 - BODY WIRING HARNESS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

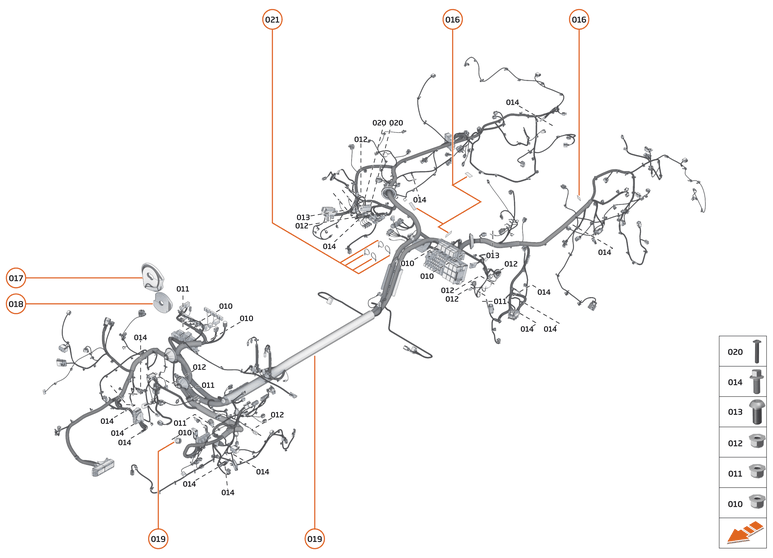

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA011	NUT-HEX HEAD-FLANGE-M6-8	00RA011 NUT-HEX HEAD-FLANGE-M6-8 Row ID: ID_XXXXXXZV_00RA011_ContPgHS;	-	5	Enquire
011	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID_XXXXXXZV_00RA055_ContPgHS;	-	4	Enquire
012	00RA075	NUT - M8-8 - HEX	00RA075 NUT - M8-8 - HEX Row ID: ID_XXXXXXZV_00RA075_ContPgHS;	-	8	Enquire
013	00RA179	SCREW - M6X10-10.9 - BUTTON	00RA179 SCREW - M6X10-10.9 - BUTTON Row ID: ID_XXXXXXZV_00RA179_ContPgHS;	-	1	Enquire
014	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER Row ID: ID_XXXXXXZV_00RA313_ContPgHS;	-	15	Enquire
015	00RB100	P-CLIP - DIA 30 - M6	00RB100 P-CLIP - DIA 30 - M6 Row ID: ID_XXXXXXZY_00RB100_ContPgHS;	-	2	Enquire
016	00RL004		00RL004 FELT TAPE; Row ID: ID_XXXXXXZZ_00RL004_ContPgHS;	-	4	Enquire
017	11M1285CP	NVH PAD - GROMMET - UPPER	11M1285CP NVH PAD - GROMMET - UPPER Row ID: ID_EGCE0112_11M1285CP_ContPgHS;	-	1	Enquire
018	11M2530CP	NVH PAD - GROMMET - LOWER - RHD	11M2530CP NVH PAD - GROMMET - LOWER - RHD Row ID: ID_EGCE0115_11M2530CP_ContPgHS;	-	1	Enquire
018	11M2517CP	NVH PAD - GROMMET - LOWER - LHD	11M2517CP NVH PAD - GROMMET - LOWER - LHD Row ID: ID_EGCE0113_11M2517CP_ContPgHS;	-	1	Enquire
019	15MA448CP	WIRING HARNESS - BODY - HIGH-LINE - COUPE - RHD	15MA448CP WIRING HARNESS - BODY - HIGH-LINE - COUPE - RHD Row ID: ID_EGCE0116_15MA448CP_ContPgHS;	-	1	Enquire
019	15MA447CP	WIRING HARNESS - BODY - HIGH-LINE - COUPE - LHD	15MA447CP WIRING HARNESS - BODY - HIGH-LINE - COUPE - LHD Row ID: ID_EGCE0114_15MA447CP_ContPgHS;	-	1	Enquire
020	00RA595	SCREW - BUTTON HEAD - TORX FLANGED - M3X16	00RA595 SCREW - BUTTON HEAD - TORX FLANGED - M3X16 Row ID: ID_XXXXXXZV_00RA595_ContPgHS;	-	2	Enquire
021	00RL012	CABLE TIE - 300X4.6MM	00RL012 CABLE TIE - 300X4.6MM Row ID: ID_XXXXXXZZ_00RL012_ContPgHS;	-	4	Enquire
