McLaren Ultimate Series McLaren Senna - 9 - GLAZING CLOSURES - 9.3 - DOOR GLAZING - DYNAMIC

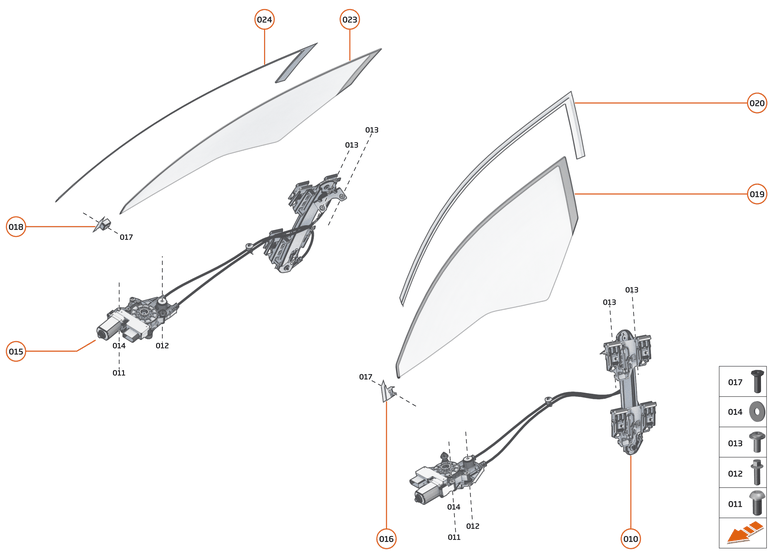

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	15AD053CP	REGULATOR & MOTOR ASSY - DOOR GLASS - LH	15AD053CP REGULATOR & MOTOR ASSY - DOOR GLASS - LH Superseded parts: 15AC507CP; Row ID: ID_EBAH0301_15AD053CP_ContPgHS;	-	1	Enquire
011	00RA465	SCREW - M4X.7X25 - BUTTON HEAD - TORX SOCKET	00RA465 SCREW - M4X.7X25 - BUTTON HEAD - TORX SOCKET Row ID: ID_XXXXXXZV_00RA465_ContPgHS;	-	2	Enquire
012	00RA458	BOLT - M6X10 - FLANGED	00RA458 BOLT - M6X10 - FLANGED Row ID: ID_XXXXXXZV_00RA458_ContPgHS;	-	2	Enquire
013	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK	00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK Row ID: ID_XXXXXXZV_00RA468_ContPgHS;	-	4	Enquire
014	00RC027	WASHER - M4 FORM C - LARGE	00RC027 WASHER - M4 FORM C - LARGE Row ID: ID_XXXXXXZW_00RC027_ContPgHS;	-	2	Enquire
015	15AD054CP	REGULATOR & MOTOR ASSY - DOOR GLASS - RH	15AD054CP REGULATOR & MOTOR ASSY - DOOR GLASS - RH Superseded parts: 15AC508CP; Row ID: ID_EBAH0303_15AD054CP_ContPgHS;	-	1	Enquire
016	15AB612CP	RETAINER - DROP GLASS - LH	15AB612CP RETAINER - DROP GLASS - LH Row ID: ID_EBAH0304_15AB612CP_ContPgHS;	-	1	Enquire
017	00RA399	Screw - M4x12	00RA399 Screw - M4x12 Row ID: ID_EBAH0305_00RA399_ContPgHS;	-	1	Enquire
018	15AB613CP	RETAINER - DROP GLASS - RH	15AB613CP RETAINER - DROP GLASS - RH Row ID: ID_EBAH0306_15AB613CP_ContPgHS;	-	1	Enquire
019	15AD228CP	DOOR GLASS - DROPPING - LH	15AD228CP DOOR GLASS - DROPPING - LH Row ID: ID_EBAH0307_15AD228CP_ContPgHS;	-	1	Enquire
020	15AB743CP	RETAINER - DROP GLASS - LH	15AB743CP RETAINER - DROP GLASS - LH Row ID: ID_EBAH0308_15AB743CP_ContPgHS;	-	1	Enquire
023	15AD229CP	DOOR GLASS - DROPPING - RH	15AD229CP DOOR GLASS - DROPPING - RH Row ID: ID_EBAH0311_15AD229CP_ContPgHS;	-	1	Enquire
024	15AB744CP	RETAINER - DROP GLASS - RH	15AB744CP RETAINER - DROP GLASS - RH Row ID: ID_EBAH0312_15AB744CP_ContPgHS;	-	1	Enquire
