9 - GLAZING CLOSURES - 9.1 - DOOR GLAZING - FIXED of McLaren McLaren Ultimate Series McLaren Senna

View All

McLaren Ultimate Series McLaren Senna - 9 - GLAZING CLOSURES - 9.1 - DOOR GLAZING - FIXED

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

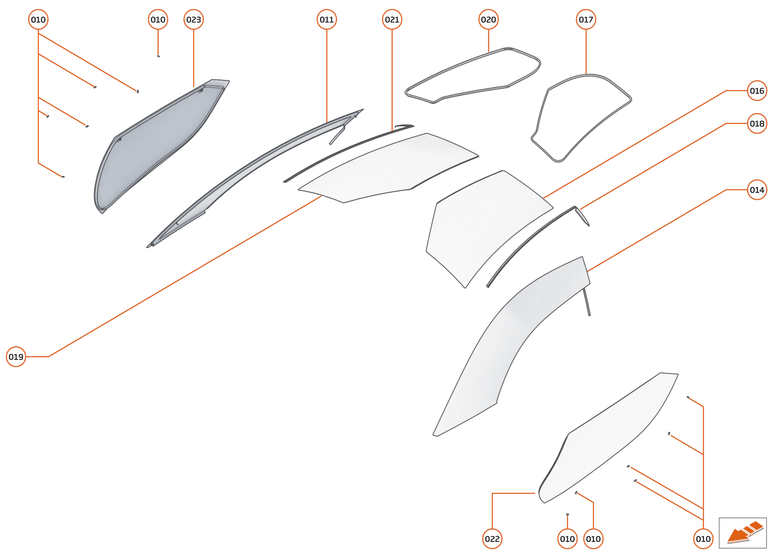

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	11A3464CP	SPACER - BULKHEAD GLASS	11A3464CP SPACER - BULKHEAD GLASS Row ID: ID_EBAH0101_11A3464CP_ContPgHS;	-	12	Enquire
011	15AB156CP	GLASS ASSY - FIXED - DOOR - RH	15AB156CP GLASS ASSY - FIXED - DOOR - RH Row ID: ID_EBAH0102_15AB156CP_ContPgHS;	-	1	Enquire
013	00RA238	SCREW - M6X16 - LOCK BUTTON	00RA238 SCREW - M6X16 - LOCK BUTTON Row ID: ID_XXXXXXZV_00RA238_ContPgHS;	-	4	Enquire
014	15AB155CP	GLASS ASSY - FIXED - DOOR - LH	15AB155CP GLASS ASSY - FIXED - DOOR - LH Row ID: ID_EBAH0104_15AB155CP_ContPgHS;	-	1	Enquire
016	14AC804CP	DOOR GLASS - UPPER - LH	14AC804CP DOOR GLASS - UPPER - LH Superseded parts: 14AC602CP; Row ID: ID_EBAH0106_14AC804CP_ContPgHS;	-	1	Enquire
017	14AB157CP	SEAL - DOOR TO ROOF - INNER - LH	14AB157CP SEAL - DOOR TO ROOF - INNER - LH Row ID: ID_EBAH0107_14AB157CP_ContPgHS;	-	1	Enquire
018	14A4225CP	SEAL - DOOR GLASS - UPPER - LH	14A4225CP SEAL - DOOR GLASS - UPPER - LH Row ID: ID_EBAH0108_14A4225CP_ContPgHS;	-	1	Enquire
019	14AC805CP	DOOR GLASS - UPPER - RH	14AC805CP DOOR GLASS - UPPER - RH Superseded parts: 14AC603CP; Row ID: ID_EBAH0109_14AC805CP_ContPgHS;	-	1	Enquire
020	14AB158CP	SEAL - DOOR TO ROOF - INNER - RH	14AB158CP SEAL - DOOR TO ROOF - INNER - RH Row ID: ID_EBAH0110_14AB158CP_ContPgHS;	-	1	Enquire
021	14A4227CP	SEAL - DOOR GLASS - UPPER - RH	14A4227CP SEAL - DOOR GLASS - UPPER - RH Row ID: ID_EBAH0111_14A4227CP_ContPgHS;	-	1	Enquire
022	15AC930CP	DOOR GLASS - LOWER - LH	15AC930CP DOOR GLASS - LOWER - LH Row ID: ID_EBAH0112_15AC930CP_ContPgHS;	-	1	Enquire
023	15AB175CP	DOOR GLASS - LOWER - RH	15AB175CP DOOR GLASS - LOWER - RH Row ID: ID_EBAH0113_15AB175CP_ContPgHS;	-	1	Enquire
