10 - CLOSURES ANCILLARIES - 10.5 - CLOSURES SEALS of McLaren McLaren Ultimate Series McLaren Senna

View All

McLaren Ultimate Series McLaren Senna - 10 - CLOSURES ANCILLARIES - 10.5 - CLOSURES SEALS

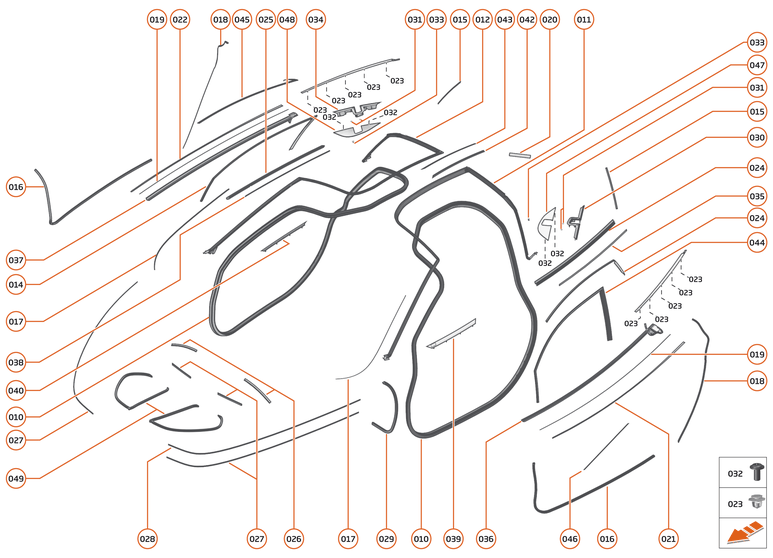

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	14AC659CP	SEAL - DOOR - PRIMARY	14AC659CP SEAL - DOOR - PRIMARY Superseded parts: 14AA418CP; Row ID: ID_EBAH0801_14AC659CP_ContPgHS;	-	2	Enquire
011	15AA379CP	SEAL - DOOR - SECONDARY - UPPER LH	15AA379CP SEAL - DOOR - SECONDARY - UPPER LH Row ID: ID_EBAH0802_15AA379CP_ContPgHS;	-	1	Enquire
012	15AA381CP	SEAL - DOOR - SECONDARY - UPPER RH	15AA381CP SEAL - DOOR - SECONDARY - UPPER RH Row ID: ID_EBAH0803_15AA381CP_ContPgHS;	-	1	Enquire
013	15AB207CP	SEAL DOOR PRIMARY GLASS RUN LH	15AB207CP SEAL DOOR PRIMARY GLASS RUN LH Row ID: ID_EBAH0804_15AB207CP_ContPgHS;	-	1	Enquire
014	15AB208CP	SEAL DOOR PRIMARY GLASS RUN RH	15AB208CP SEAL DOOR PRIMARY GLASS RUN RH Row ID: ID_EBAH0805_15AB208CP_ContPgHS;	-	1	Enquire
015	15AB215CP	SEAL - DOOR - B-PILLAR	15AB215CP SEAL - DOOR - B-PILLAR Row ID: ID_EBAH0806_15AB215CP_ContPgHS;	-	2	Enquire
016	15AB218CP	SEAL - DOOR - A-POST TO - WHEEL ARCH LINER	15AB218CP SEAL - DOOR - A-POST TO - WHEEL ARCH LINER Row ID: ID_EBAH0807_15AB218CP_ContPgHS;	-	2	Enquire
017	14AB162CP	SEAL - A-PILLAR - WINDSCREEN	14AB162CP SEAL - A-PILLAR - WINDSCREEN Row ID: ID_EBAH0808_14AB162CP_ContPgHS;	-	2	Enquire
018	15AB508CP	SEAL - DOP TO - REAR FENDER	15AB508CP SEAL - DOP TO - REAR FENDER Row ID: ID_EBAH0809_15AB508CP_ContPgHS;	-	2	Enquire
019	13A7254GP	FOAM SEAL - CANTRAIL CARRIER - GT	13A7254GP FOAM SEAL - CANTRAIL CARRIER - GT Row ID: ID_EBAH0810_13A7254GP_ContPgHS;	-	2	Enquire
020	13A4205CP	FOAM - REAR FRAME - LOWER	13A4205CP FOAM - REAR FRAME - LOWER Row ID: ID_EBAH0811_13A4205CP_ContPgHS;	-	1	Enquire
021	15AA410CP	FINISHER - DOOR WAIST - LH - GB (GLOSS BLACK)	15AA410CP FINISHER - DOOR WAIST - LH - GB (GLOSS BLACK) Row ID: ID_EBAH0812_15AA410CP_ContPgHS;	-	1	Enquire
022	15AA414CP	FINISHER - DOOR WAIST - RH - GB (GLOSS BLACK)	15AA414CP FINISHER - DOOR WAIST - RH - GB (GLOSS BLACK) Row ID: ID_EBAH0813_15AA414CP_ContPgHS;	-	1	Enquire
023	00RB185	CLIP - CANTRAIL CAPPING PANEL	00RB185 CLIP - CANTRAIL CAPPING PANEL Row ID: ID_XXXXXXZZ_00RB185_ContPgHS;	-	10	Enquire
024	15AA418CP	SEAL - WAIST - DOOR - INNER LH	15AA418CP SEAL - WAIST - DOOR - INNER LH Row ID: ID_EBAH0814_15AA418CP_ContPgHS;	-	1	Enquire
025	15AA420CP	SEAL - WAIST - DOOR - INNER RH	15AA420CP SEAL - WAIST - DOOR - INNER RH Row ID: ID_EBAH0815_15AA420CP_ContPgHS;	-	1	Enquire
026	15AA453CP	SEAL - WIPER COVER PANEL	15AA453CP SEAL - WIPER COVER PANEL Row ID: ID_EBAH0816_15AA453CP_ContPgHS;	-	2	Enquire
027	15AA451CP	SEAL - LOW TEMPERATURE RADIATOR - OUTLET	15AA451CP SEAL - LOW TEMPERATURE RADIATOR - OUTLET Row ID: ID_EBAH0817_15AA451CP_ContPgHS;	-	2	Enquire
028	15AB074CP	SEAL - CLAM INNER TO - OUTER	15AB074CP SEAL - CLAM INNER TO - OUTER Row ID: ID_EBAH0818_15AB074CP_ContPgHS;	-	2	Enquire
029	11A9876RP	Seal - Wheelhouse Closing - LH	11A9876RP Seal - Wheelhouse Closing - LH Row ID: ID_EBAH0819_11A9876RP_ContPgHS;	-	1	Enquire
030	14AA501CP	SEAL - UPPER HINGE - CAPPING - LH	14AA501CP SEAL - UPPER HINGE - CAPPING - LH Row ID: ID_EBAH0820_14AA501CP_ContPgHS;	-	1	Enquire
031	00RA427	Starlock - Diameter 6mm Shaft - 8024	00RA427 Starlock - Diameter 6mm Shaft - 8024 Row ID: ID_XXXXXXZW_00RA427_ContPgHS;	-	4	Enquire
032	00RA601	SCREW - M6X1X12	00RA601 SCREW - M6X1X12 Row ID: ID_XXXXXXZV_00RA601_ContPgHS;	-	4	Enquire
033	00RB012	CLIP - 2MM - TRIM PANEL	00RB012 CLIP - 2MM - TRIM PANEL Row ID: ID_XXXXXXZZ_00RB012_ContPgHS;	-	2	Enquire
034	14AA503CP	SEAL - UPPER HINGE - CAPPING - RH	14AA503CP SEAL - UPPER HINGE - CAPPING - RH Row ID: ID_EBAH0821_14AA503CP_ContPgHS;	-	1	Enquire
035	15AB011CP	SEAL - DROP GLASS - LH	15AB011CP SEAL - DROP GLASS - LH Row ID: ID_EBAH0822_15AB011CP_ContPgHS;	-	1	Enquire
036	15AA411CP	SEAL - WAIST - DOOR - OUTER LH	15AA411CP SEAL - WAIST - DOOR - OUTER LH Row ID: ID_EBAH0823_15AA411CP_ContPgHS;	-	1	Enquire
037	15AA415CP	SEAL - WAIST - DOOR - OUTER RH	15AA415CP SEAL - WAIST - DOOR - OUTER RH Row ID: ID_EBAH0824_15AA415CP_ContPgHS;	-	1	Enquire
038	15AC179CP	SEAL - DROP GLASS - RH	15AC179CP SEAL - DROP GLASS - RH Row ID: ID_EBAH0825_15AC179CP_ContPgHS;	-	1	Enquire
039	15AB608CP	SEAL CARRIER - LH	15AB608CP SEAL CARRIER - LH Row ID: ID_EBAH0826_15AB608CP_ContPgHS;	-	1	Enquire
040	15AB610CP	SEAL CARRIER - RH	15AB610CP SEAL CARRIER - RH Row ID: ID_EBAH0827_15AB610CP_ContPgHS;	-	1	Enquire
041	13A6726CP	FOAM - CANTRAIL SEAL CARRIER	13A6726CP FOAM - CANTRAIL SEAL CARRIER Row ID: ID_EBAH0828_13A6726CP_ContPgHS;	-	-	Enquire
042	14AB157CP	SEAL - DOOR TO ROOF - INNER - LH	14AB157CP SEAL - DOOR TO ROOF - INNER - LH Row ID: ID_EBAH0829_14AB157CP_ContPgHS;	-	1	Enquire
043	14AB158CP	SEAL - DOOR TO ROOF - INNER - RH	14AB158CP SEAL - DOOR TO ROOF - INNER - RH Row ID: ID_EBAH0830_14AB158CP_ContPgHS;	-	1	Enquire
044	14A4225CP	SEAL - DOOR GLASS - UPPER - LH	14A4225CP SEAL - DOOR GLASS - UPPER - LH Row ID: ID_EBAH0831_14A4225CP_ContPgHS;	-	1	Enquire
045	14A4227CP	SEAL - DOOR GLASS - UPPER - RH	14A4227CP SEAL - DOOR GLASS - UPPER - RH Row ID: ID_EBAH0832_14A4227CP_ContPgHS;	-	1	Enquire
046	15AD250CP	SEAL WAIST FINISHER TO QTR PANEL	15AD250CP SEAL WAIST FINISHER TO QTR PANEL Row ID: ID__15AD250CP_ContPgHS;	-	1	Enquire
047	14AD270CP	PNL UPPER HINGE COVER LH	14AD270CP PNL UPPER HINGE COVER LH Row ID: ID__14AD270CP_ContPgHS;	-	1	Enquire
048	14AD271CP	PNL UPPER HINGE COVER RH	14AD271CP PNL UPPER HINGE COVER RH Row ID: ID__14AD271CP_ContPgHS;	-	1	Enquire
049	15AB074CP	SEAL - CLAM INNER TO - OUTER	15AB074CP SEAL - CLAM INNER TO - OUTER Row ID: ID_EBAH0818_15AB074CP_ContPgHS;	-	2	Enquire
