14 - WIPERS AND WASHER SYSTEM - 14.2 - WINDSCREEN WIPER ARMS of McLaren McLaren Ultimate Series McLaren Senna

View All

McLaren Ultimate Series McLaren Senna - 14 - WIPERS AND WASHER SYSTEM - 14.2 - WINDSCREEN WIPER ARMS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

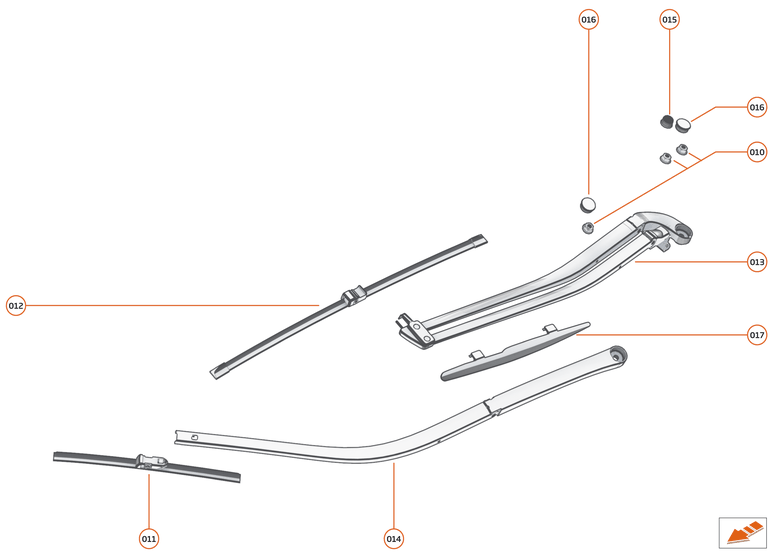

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA269	NUT - M10 - HEX	00RA269 NUT - M10 - HEX Row ID: ID_XXXXXXZV_00RA269_ContPgHS;	-	3	Enquire
011	13A4037CP	WIPER BLADE - PASSENGER - LHD	13A4037CP WIPER BLADE - PASSENGER - LHD Row ID: ID_EBAM0205_13A4037CP_ContPgHS;	-	1	Enquire
011	13A4042CP	WIPER BLADE - PASSENGER - RHD	13A4042CP WIPER BLADE - PASSENGER - RHD Row ID: ID_EBAM0201_13A4042CP_ContPgHS;	-	1	Enquire
012	14A0290CP	WIPER BLADE - DRIVER - LHD	14A0290CP WIPER BLADE - DRIVER - LHD Row ID: ID_EBAM0206_14A0290CP_ContPgHS;	-	1	Enquire
012	14A0296CP	WIPER BLADE - DRIVER - RHD	14A0296CP WIPER BLADE - DRIVER - RHD Row ID: ID_EBAM0202_14A0296CP_ContPgHS;	-	1	Enquire
013	14AB958CP	WIPER ARM - DRIVER - LHD	14AB958CP WIPER ARM - DRIVER - LHD Row ID: ID_EBAM0207_14AB958CP_ContPgHS;	-	1	Enquire
013	14AB956CP	WIPER ARM - DRIVER - RHD	14AB956CP WIPER ARM - DRIVER - RHD Row ID: ID_EBAM0203_14AB956CP_ContPgHS;	-	1	Enquire
014	14AB959CP	WIPER ARM - PASSENGER - LHD	14AB959CP WIPER ARM - PASSENGER - LHD Row ID: ID_EBAM0208_14AB959CP_ContPgHS;	-	1	Enquire
014	14AB957CP	WIPER ARM - PASSENGER - RHD	14AB957CP WIPER ARM - PASSENGER - RHD Row ID: ID_EBAM0204_14AB957CP_ContPgHS;	-	1	Enquire
015	13A1329CP	CAP - WIPER ARM - LOWER	13A1329CP CAP - WIPER ARM - LOWER Row ID: ID_EBAM0209_13A1329CP_ContPgHS;	-	1	Enquire
016	13A1330CP	CAP - WIPER ARM - UPPER	13A1330CP CAP - WIPER ARM - UPPER Row ID: ID_EBAM0210_13A1330CP_ContPgHS;	-	2	Enquire
017	14AB961CP	WIPER - AEROFOIL - RHD	14AB961CP WIPER - AEROFOIL - RHD Row ID: ID_EBAM0212_14AB961CP_ContPgHS;	-	1	Enquire
017	14AB960CP	WIPER - AEROFOIL - LHD	14AB960CP WIPER - AEROFOIL - LHD Row ID: ID_EBAM0211_14AB960CP_ContPgHS;	-	1	Enquire
