33 - ENGINE - 33.4 - INLET MANIFOLD of McLaren McLaren Super Series McLaren 720S Spider

View All

McLaren Super Series McLaren 720S Spider - 33 - ENGINE - 33.4 - INLET MANIFOLD

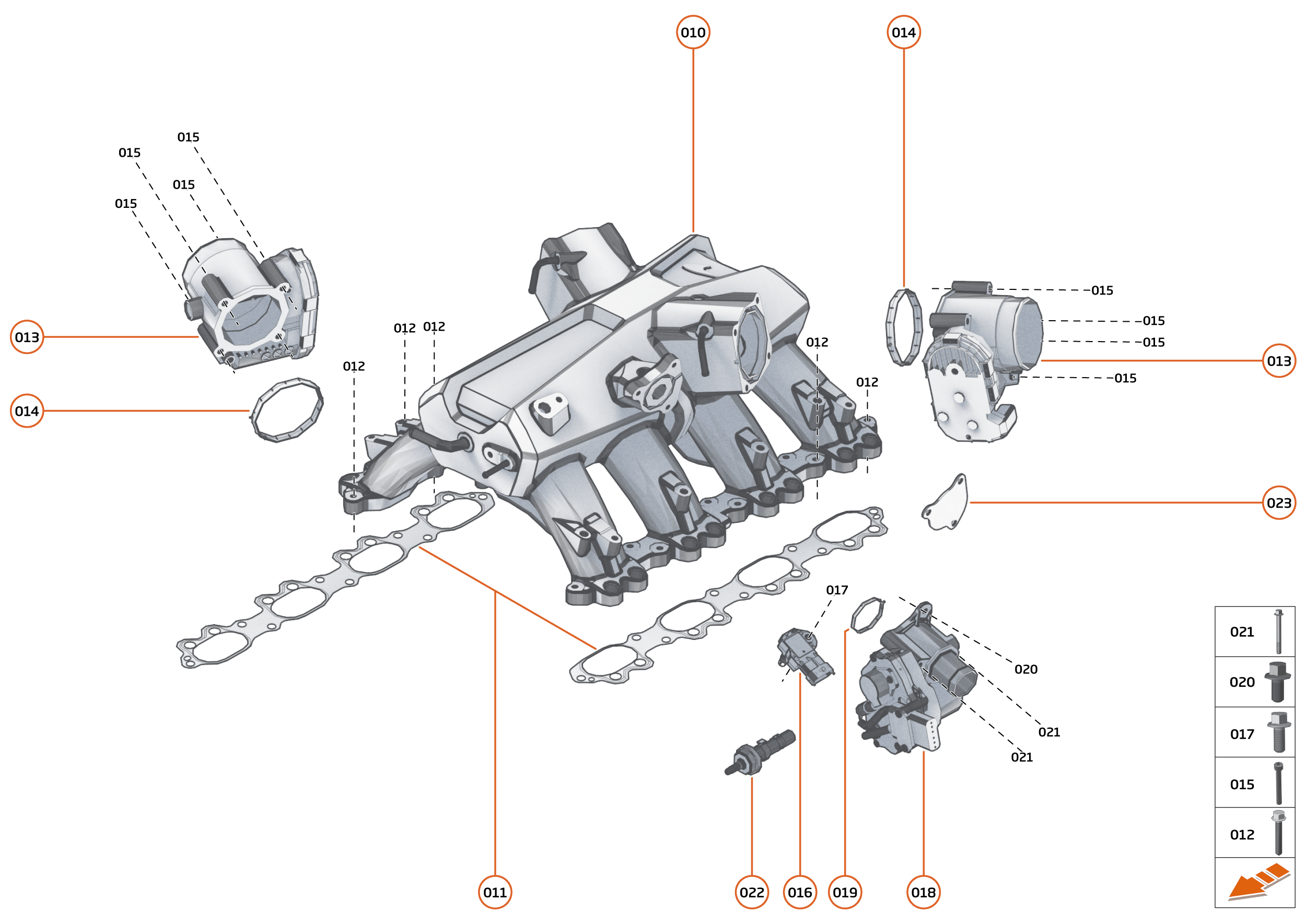

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	14F0674CP	INLET MANIFOLD ASSY - ENGINE	14F0674CP INLET MANIFOLD ASSY - ENGINE Row ID: ID_DEFA0130_14F0674CP_ContPgHS;	-	1	Enquire
011	14F0360CP	GASKET - INLET MANIFOLD - ENGINE	14F0360CP GASKET - INLET MANIFOLD - ENGINE Row ID: ID_DEFA0131_14F0360CP_ContPgHS;	-	2	Enquire
012	11F1776CP	BOLT - M6X30 - HEX	11F1776CP BOLT - M6X30 - HEX Superseded parts: 11F0824CP; Row ID: ID_DEFA0106_11F1776CP_ContPgHS;	-	16	Enquire
013	11F1740CP	THROTTLE BODY - ENGINE	11F1740CP THROTTLE BODY - ENGINE Superseded parts: 11F0407CP; Row ID: ID_DEFA0132_11F1740CP_ContPgHS;	-	2	Enquire
014	11F2289CP	SEAL - THROTTLE BODY - ENGINE	11F2289CP SEAL - THROTTLE BODY - ENGINE Superseded parts: 11F0969CP; Row ID: ID_DEFA0133_11F2289CP_ContPgHS;	-	2	Enquire
015	11F1797CP	SCREW - CAP HEAD - M6X45	11F1797CP SCREW - CAP HEAD - M6X45 Row ID: ID_DEFA0134_11F1797CP_ContPgHS;	-	2	Enquire
016	14F0322CP	SENSOR - TMAP - INLET MANIFOLD - ENGINE	14F0322CP SENSOR - TMAP - INLET MANIFOLD - ENGINE Row ID: ID_DEFA0135_14F0322CP_ContPgHS;	-	1	Enquire
017	11F1793CP	BOLT - M6X20 - HEX	11F1793CP BOLT - M6X20 - HEX Superseded parts: 11F0825CP; Row ID: ID_DEFA0136_11F1793CP_ContPgHS;	-	1	Enquire
018	14F0780CP	INTAKE SOUND GENERATOR - THROTTLE	14F0780CP INTAKE SOUND GENERATOR - THROTTLE Row ID: ID_DEFA0137_14F0780CP_ContPgHS;	-	1	Enquire
019	11F2290CP	SEAL - INTAKE SOUND GENERATOR - THROTTLE BODY - ENGINE	11F2290CP SEAL - INTAKE SOUND GENERATOR - THROTTLE BODY - ENGINE Superseded parts: 11F0968CP; Row ID: ID_DEFA0138_11F2290CP_ContPgHS;	-	1	Enquire
020	11F1792CP	BOLT - M6X16 - ENGINE	11F1792CP BOLT - M6X16 - ENGINE Row ID: ID_DEFA0115_11F1792CP_ContPgHS;	-	1	Enquire
021	11F1799CP	BOLT - M6X60 - HEX	11F1799CP BOLT - M6X60 - HEX Row ID: ID_DEFA0139_11F1799CP_ContPgHS;	-	2	Enquire
022	14F0766CP	ASSY - BRAKE BOOST - HOSE - INLET MANIFOLD	14F0766CP ASSY - BRAKE BOOST - HOSE - INLET MANIFOLD Row ID: ID_DEFA0140_14F0766CP_ContPgHS;	-	1	Enquire
023	14F0666CP	BLANK - THROTTLE - INTAKE SOUND GENERATOR	14F0666CP BLANK - THROTTLE - INTAKE SOUND GENERATOR Row ID: ID_DEFA0141_14F0666CP_ContPgHS;	-	1	Enquire
