32 - HEAT INSULATION - 32.1 - HEATSHIELDS - VEHICLE MOUNTED of McLaren McLaren Super Series McLaren 720S Spider

View All

McLaren Super Series McLaren 720S Spider - 32 - HEAT INSULATION - 32.1 - HEATSHIELDS - VEHICLE MOUNTED

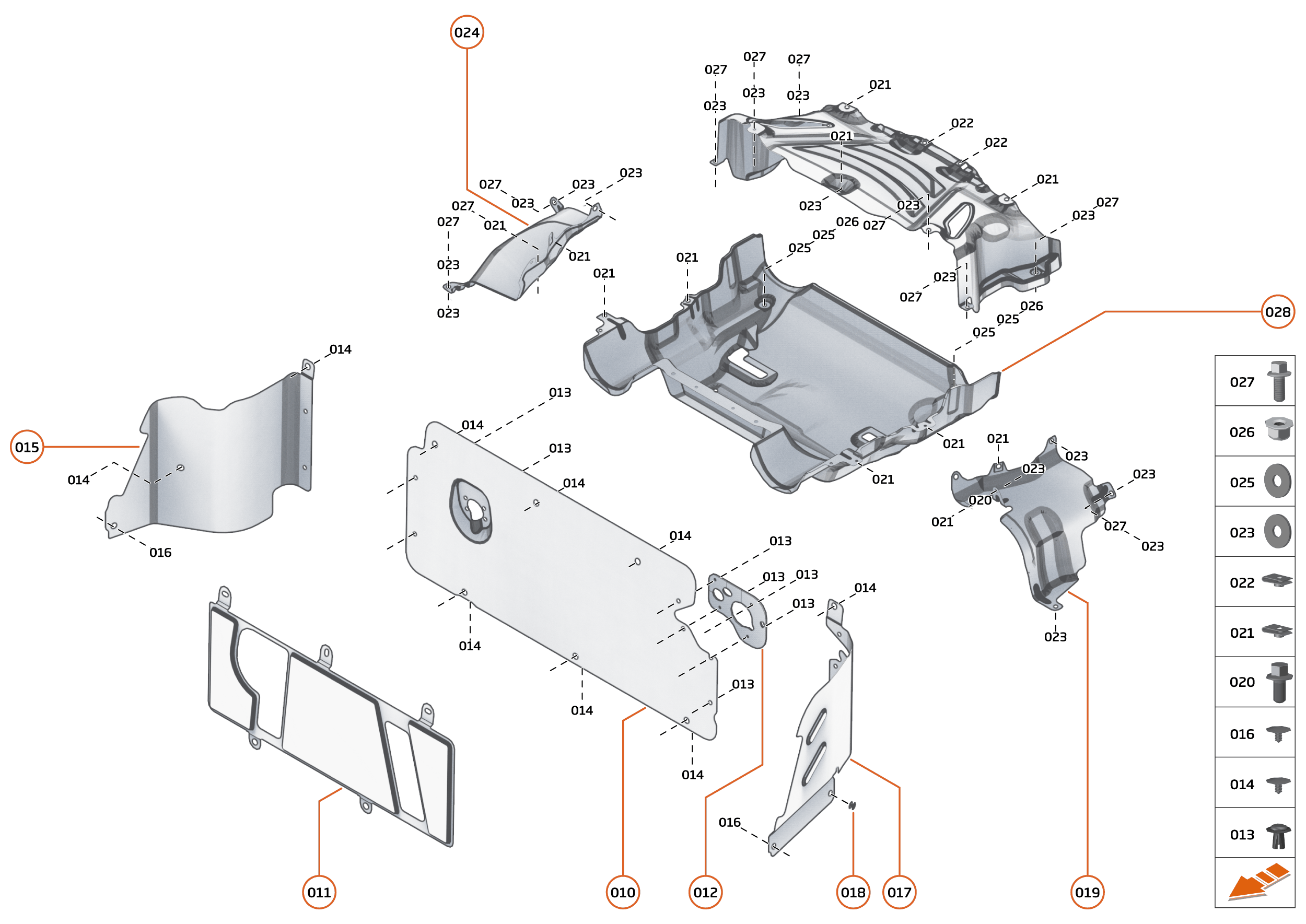

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	14E0025CP	HEATSHIELD - BULKHEAD - CENTRE - HEATSHIELD CTR-BULKHEAD	14E0025CP HEATSHIELD - BULKHEAD - CENTRE - HEATSHIELD CTR-BULKHEAD Row ID: ID_DEEA0208_14E0025CP_ContPgHS;	-	1	Enquire
011	14E0074CP	NVH - BULKHEAD - CENTRE	14E0074CP NVH - BULKHEAD - CENTRE Row ID: ID_DEEA0201_14E0074CP_ContPgHS;	-	1	Enquire
012	14H0083CP	GASKET - BULKHEAD	14H0083CP GASKET - BULKHEAD Row ID: ID_DEEA0203_14H0083CP_ContPgHS;	-	1	Enquire
013	00RA146	SCRIVET - DIA 8 X 14	00RA146 SCRIVET - DIA 8 X 14 Row ID: ID_XXXXXXZV_00RA146_ContPgHS;	-	7	Enquire
014	00RG003	FIRTREE 7.2X15X24	00RG003 FIRTREE 7.2X15X24 Row ID: ID_XXXXXXZZ_00RG003_ContPgHS;	-	9	Enquire
015	14E0066CP	HEATSHIELD - BULKHEAD - RH	14E0066CP HEATSHIELD - BULKHEAD - RH Row ID: ID_DEEA0204_14E0066CP_ContPgHS;	-	1	Enquire
016	00RG054	CLIP - FIRTREE - 8X14	00RG054 CLIP - FIRTREE - 8X14 Row ID: ID_XXXXXXZZ_00RG054_ContPgHS;	-	2	Enquire
017	15EA014CP	HEATSHIELD - BULKHEAD - LH	15EA014CP HEATSHIELD - BULKHEAD - LH Row ID: ID_DEEA0210_15EA014CP_ContPgHS;	-	1	Enquire
018	00RM005	ANIXTER RIVET - BLACK	00RM005 ANIXTER RIVET - BLACK Row ID: ID_XXXXXXZZ_00RM005_ContPgHS;	-	2	Enquire
019	14E0044CP	HEATSHIELD - AIR GUIDE - FRONT - LH	14E0044CP HEATSHIELD - AIR GUIDE - FRONT - LH Row ID: ID_DEEA0206_14E0044CP_ContPgHS;	-	1	Enquire
020	00RX003	BOLT - M6X1X12 - HEX	00RX003 BOLT - M6X1X12 - HEX Row ID: ID_XXXXXXZV_00RX003_ContPgHS;	-	2	Enquire
021	00RB183	CLIP - U NUT - M6	00RB183 CLIP - U NUT - M6 Row ID: ID_XXXXXXZV_00RB183_ContPgHS;	-	10	Enquire
022	00RA301	Clip - Spier - M5 - 0.5/2.1-SS	00RA301 Clip - Spier - M5 - 0.5/2.1-SS Row ID: ID_DEEA0213_00RA301_ContPgHS;	-	2	Enquire
023	00RC077	WASHER - M6X18X1.6 - STAINLESS STEEL	00RC077 WASHER - M6X18X1.6 - STAINLESS STEEL Row ID: ID_XXXXXXZW_00RC077_ContPgHS;	-	17	Enquire
024	14E0045CP	HEATSHIELD - AIR GUIDE - FRONT - LH	14E0045CP HEATSHIELD - AIR GUIDE - FRONT - LH Row ID: ID_DEEA0207_14E0045CP_ContPgHS;	-	1	Enquire
025	00RC060	Washer - M5X25X1.3	00RC060 Washer - M5X25X1.3 Row ID: ID_XXXXXXZW_00RC060_ContPgHS;	-	4	Enquire
026	00RA582	NUT - M5 - HEX	00RA582 NUT - M5 - HEX Row ID: ID_XXXXXXZV_00RA582_ContPgHS;	-	2	Enquire
027	00RA556	BOLT - HEX - FLANGED - M6X16	00RA556 BOLT - HEX - FLANGED - M6X16 Superseded parts: 00RA313; Row ID: ID_XXXXXXZV_00RA556_ContPgHS;	-	10	Enquire
028	14EA011CP	HEATSHIELD MUFFLER LWR	14EA011CP HEATSHIELD MUFFLER LWR Row ID: ID__14EA011CP_ContPgHS;	-	1	Enquire
