McLaren Super Series McLaren 720S Spider - 33 - ENGINE - 33.11 - ENGINE WATER PUMP & WATER CIRCUIT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

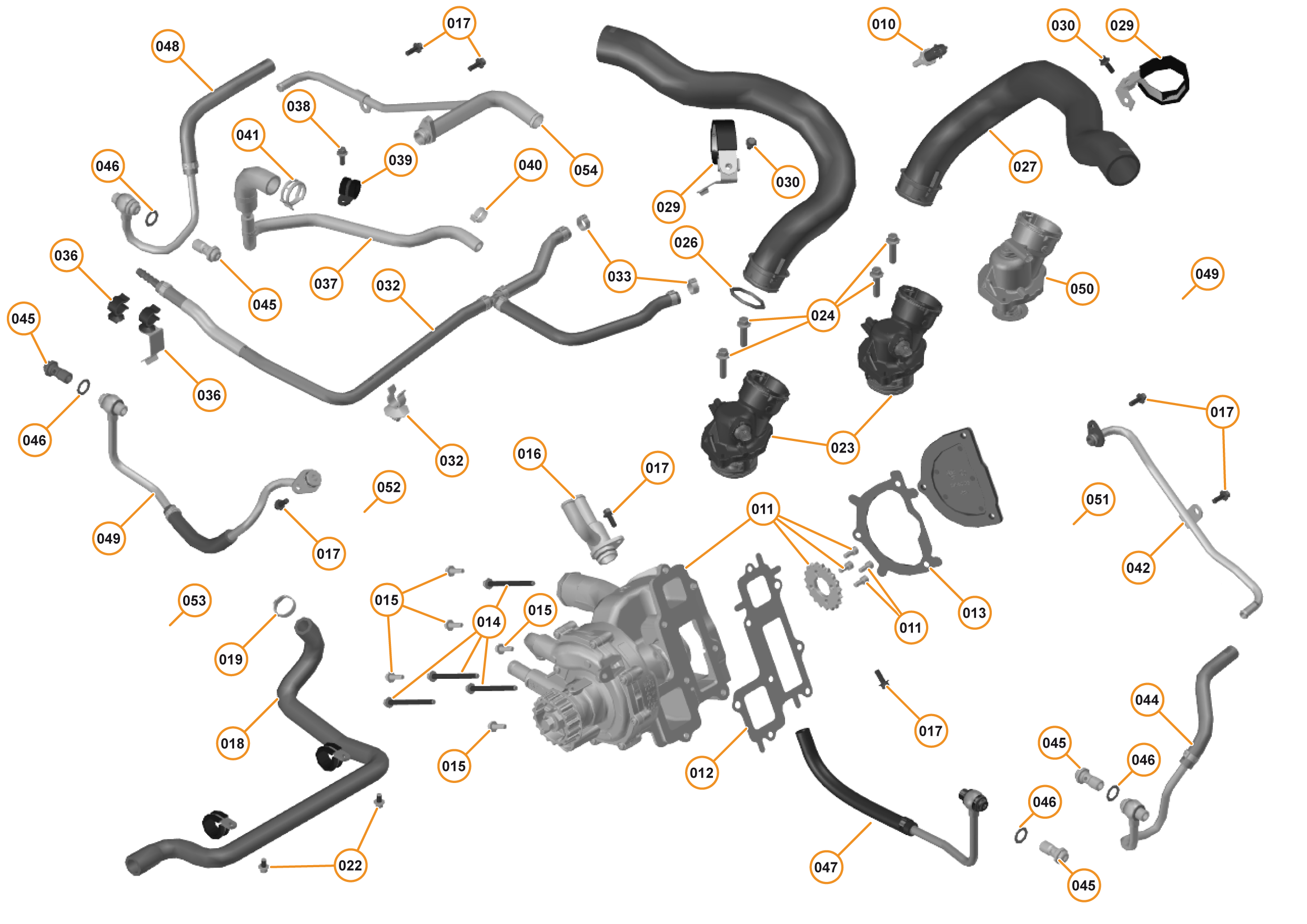

33 - ENGINE - 33.11 - ENGINE WATER PUMP & WATER CIRCUIT of McLaren McLaren Super Series McLaren 720S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11F2418CP
SENSOR - HEAD TEMPERATURE
Superseded parts: 11F0739CP; Row ID: ID_DEFD0101_11F2418CP_ContPgHS; 		- 1 Enquire
011 14FA182CP
WATER PUMP
Superseded parts: 14FA021CP; Row ID: ID_DEFD0102_14FA182CP_ContPgHS;
IN STOCK 		$1,611.30 1
012 11F0686CP
ENGINE WATER PUMP GASKET
Row ID: ID_DEFD0103_11F0686CP_ContPgHS;
IN STOCK 		$30.44 1
013 11F2434CP
GASKET SERVICE COVER WATER PUMP
Row ID: ID_DEFD0104_11F2434CP_ContPgHS;
IN STOCK 		$15.21 1
014 11F1784CP
BOLT - M6X80 - HEX
Row ID: ID_DEFD0105_11F1784CP_ContPgHS; 		- 4 Enquire
015 11F1793CP
BOLT - M6X20 - HEX
Row ID: ID_DEFD0106_11F1793CP_ContPgHS; 		- 8 Enquire
016 11F0802CP
Heater Return Stub - Engine - Water Pump
Row ID: ID_DEFD0107_11F0802CP_ContPgHS; 		- 1 Enquire
017 11F0822CP
Bolt - M6x16 - Engine
Row ID: ID_DEFD0108_11F0822CP_ContPgHS; 		- 7 Enquire
018 13F0866CP
COOLANT HOSE - FEED - CLUTCH COOLER
Row ID: ID_DEFD0109_13F0866CP_ContPgHS; 		- 1 Enquire
019 11F1859CP
OETIKER CLAMP - 24.1MM
Row ID: ID_DEFD0110_11F1859CP_ContPgHS; 		- 1 Enquire
022 11F1791CP
SCREW - HEX HEAD - FLANGE - M6X10
Row ID: ID_DEFD0113_11F1791CP_ContPgHS; 		- 2 Enquire
023 13FA050CP
THERMOSTAT
Row ID: ID_DEFD0114_13FA050CP_ContPgHS;
IN STOCK 		$243.70 2
024 11F1783CP
BOLT - M8X30 - HEX
Row ID: ID_DEFD0115_11F1783CP_ContPgHS; 		- 4 Enquire
027 14F0654CP
TOP HOSE - ENGINE RADIATOR - LH
Row ID: ID_DEFD0118_14F0654CP_ContPgHS; 		- 1 Enquire
028 14F0655CP
TOP HOSE - ENGINE RADIATOR - RH
Row ID: ID_DEFD0119_14F0655CP_ContPgHS; 		- 1 Enquire
029 11F0704CP
ENGINE COOLANT TOP24OSE SUPPOR
Row ID: ID_DEFD0120_11F0704CP_ContPgHS; 		$25.37 1
030 11F1782CP
BOLT - M6X10 - HEX
Row ID: ID_DEFD0121_11F1782CP_ContPgHS; 		- 2 Enquire
032 14F0573CP
ASSY - HOSE - COOLANT DEGAS - ENGINE
Row ID: ID_DEFD0123_14F0573CP_ContPgHS; 		- 1 Enquire
033 11F1863CP
OETIKER CLIP - 14.1-16.6
Row ID: ID_DEFD0124_11F1863CP_ContPgHS; 		- 2 Enquire
035 14F0411CP
BRACKET - DEGAS HOSE
Row ID: ID_DEFD0126_14F0411CP_ContPgHS; 		- 1 Enquire
036 14F0414CP
PLUG IN CLIP - RAYMOND - 15MM
Row ID: ID_DEFD0127_14F0414CP_ContPgHS; 		- 1 Enquire
037 14F0636CP
ASSY - HOSE - COOLANT DEGAS - VEHICLE
Row ID: ID_DEFD0128_14F0636CP_ContPgHS; 		- 1 Enquire
038 00RA556
BOLT - HEX - FLANGED - M6X16
Superseded parts: 00RA313; Row ID: ID_XXXXXXZV_00RA556_ContPgHS; 		- 1 Enquire
039 00RB005
P CLIP - DIA 16
Row ID: ID_XXXXXXZY_00RB005_ContPgHS; 		- 1 Enquire
040 00RB093
OETIKER CLIP - 16.6
Row ID: ID_XXXXXXZX_00RB093_ContPgHS; 		- 1 Enquire
041 00RB204
CLAMP - SPRING BAND - 27X12
Row ID: ID_XXXXXXZX_00RB204_ContPgHS; 		- 1 Enquire
042 13F0831CP
ASSY PIPE TURBOCHARGER WATER RETURN - UPPER RH
Row ID: ID_DEFD0129_13F0831CP_ContPgHS; 		- 1 Enquire
044 14F0569CP
PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - RH
Row ID: ID_DEFD0130_14F0569CP_ContPgHS; 		- 1 Enquire
045 12F0684CP
Banjo Bolt - M14x1.5
Row ID: ID_DEFD0131_12F0684CP_ContPgHS; 		- 4 Enquire
046 12F0685CP
Washer - Sealing - M14
Row ID: ID_DEFD0132_12F0685CP_ContPgHS; 		- 4 Enquire
047 14FA043CP
PIPE - HOSE - TURBOCHARGER WATER FEED - INC CLIPS - RH
Row ID: ID_DEFD0133_14FA043CP_ContPgHS; 		- 1 Enquire
048 14F0568CP
PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - LH
Row ID: ID_DEFD0134_14F0568CP_ContPgHS; 		- 1 Enquire
049 14FA044CP
PIPE - HOSE - TURBOCHARGER WATER FEED - INC CLIPS - LH
Row ID: ID_DEFD0135_14FA044CP_ContPgHS; 		- 1 Enquire
050 13FA050CP
THERMOSTAT
Row ID: ID__13FA050CP_ContPgHS;
IN STOCK 		$243.70 1
051 14F0569CP
PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - RH
Row ID: ID__14F0569CP_ContPgHS; 		- 1 Enquire
052 13F0828CP
ASSY PIPE STUB TURBOCHARGER WATER FEED - RH
Row ID: ID__13F0828CP_ContPgHS; 		- 1 Enquire
053 13F0829CP
ASSY PIPE STUB TURBO WTR FEED LH
Row ID: ID__13F0829CP_ContPgHS; 		- 1 Enquire
054 11F2167CP
Pipe - Heater Feed Stub
Row ID: ID__11F2167CP_ContPgHS; 		- 1 Enquire
