33 - Engine - 33.13 - Secondary Air System

McLaren Super Series McLaren 720S Spider

Find Your Part

McLaren Super Series McLaren 720S Spider - 33 - ENGINE - 33.13 - SECONDARY AIR SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

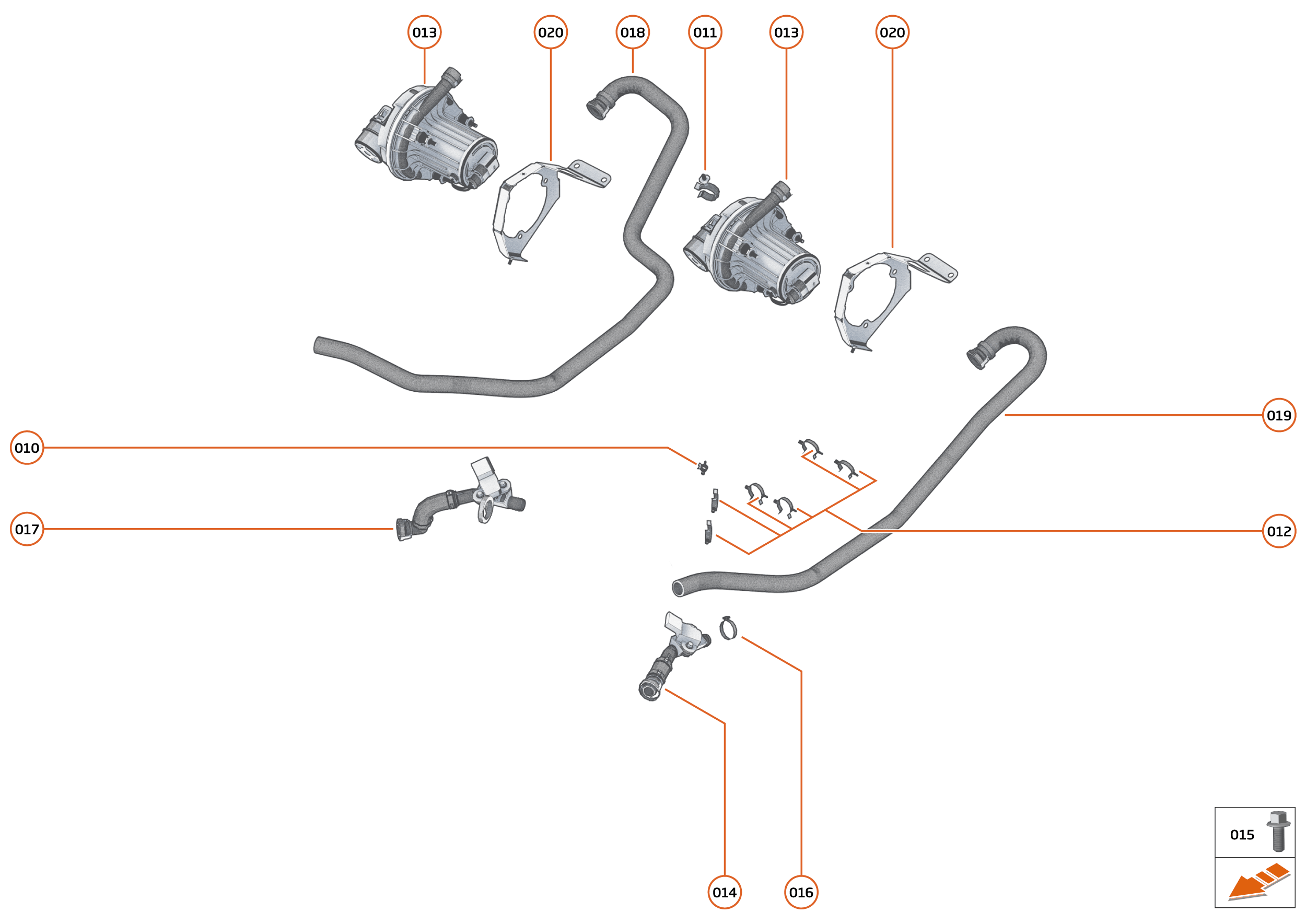

33 - ENGINE - 33.13 - SECONDARY AIR SYSTEM of McLaren McLaren Super Series McLaren 720S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RB047
Swivel Clip - 9-9.5 - Male-Female
Row ID: ID_XXXXXXZY_00RB047_ContPgHS; 		- 1 Enquire
011 00RG017
Firtree C Clip - 25-27mm
Row ID: ID_XXXXXXZZ_00RG017_ContPgHS; 		- 1 Enquire
012 00RG028
CLIP - SWIVEL TYPE - MALE+FEMALE - 23.5-25
Row ID: ID_XXXXXXZY_00RG028_ContPgHS; 		- 6 Enquire
013 12F0750CP
PUMP - SECONDARY AIR
Row ID: ID_DEFA0312_12F0750CP_ContPgHS; 		- 2 Enquire
014 13F0335CP
HOSE - SECONDARY AIR INJECTION - INC SENSOR - LH
Row ID: ID_DEFA0308_13F0335CP_ContPgHS; 		- 1 Enquire
015 11F1785CP
BOLT - HEX - M5X10
Row ID: ID_DEFA0310_11F1785CP_ContPgHS; 		- 2 Enquire
016 11F1862CP
OETIKER CLIP - 26.9 - 30.1MM
Row ID: ID_DEFA0314_11F1862CP_ContPgHS; 		- 1 Enquire
017 13F0336CP
HOSE - SECONDARY AIR INJECTION - INC SENSOR - RH
Row ID: ID_DEFA0307_13F0336CP_ContPgHS; 		- 1 Enquire
018 14F0101CP
HOSE - SECONDARY AIR PUMP - RH
Row ID: ID_DEFA0301_14F0101CP_ContPgHS; 		- 1 Enquire
019 14F0189CP
HOSE - SECONDARY AIR PUMP - LH
Row ID: ID_DEFA0311_14F0189CP_ContPgHS; 		- 1 Enquire
020 14FA073CP
BRACKET - SECONDARY AIR PUMP
Row ID: ID_DEFA0313_14FA073CP_ContPgHS; 		- 2 Enquire
