40 - ACCESSORIES - ELECTRICAL - 39.1 - SOUND SYSTEM of McLaren McLaren GT McLaren GT

View All

McLaren GT McLaren GT - 40 - ACCESSORIES - ELECTRICAL - 39.1 - SOUND SYSTEM

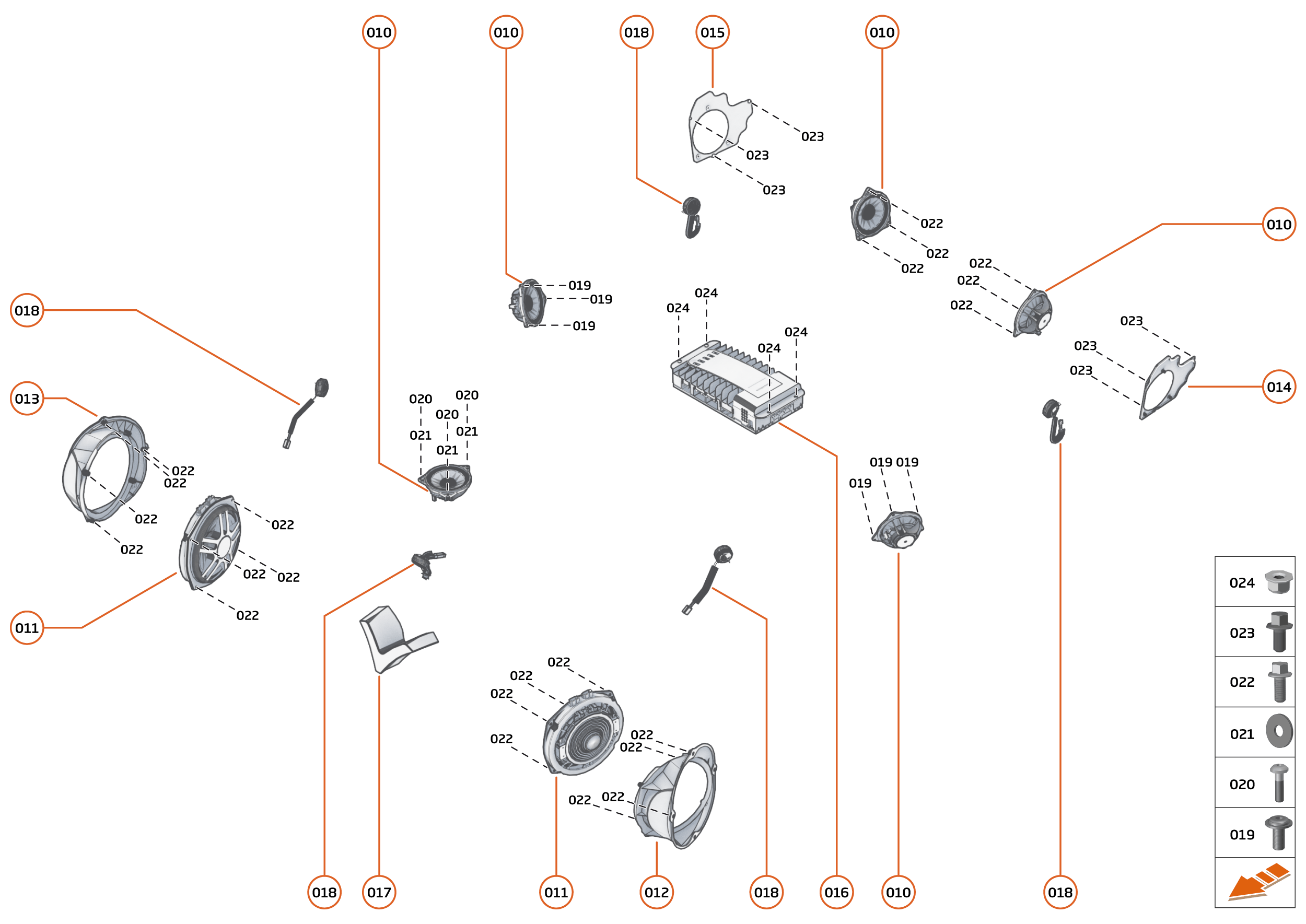

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	00RC017	WASHER - M5X15X1.2	00RC017 WASHER - M5X15X1.2 Row ID: ID__00RC017_ContPgHS;	-	14	Enquire
000	00RA574	SCREW - M5X25 - TORX	00RA574 SCREW - M5X25 - TORX Row ID: ID__00RA574_ContPgHS;	-	2	Enquire
000	00RG026	CABLE TIE - ROTATABLE - EDGE PANEL	00RG026 CABLE TIE - ROTATABLE - EDGE PANEL Row ID: ID__00RG026_ContPgHS;	-	1	Enquire
000	11C0593CP	TAPE ADHESIVE - COROPLAST - 837X - 19X100MM	11C0593CP TAPE ADHESIVE - COROPLAST - 837X - 19X100MM Row ID: ID__11C0593CP_ContPgHS;	-	2	Enquire
000	00RL004		00RL004 FELT TAPE; Row ID: ID__00RL004_ContPgHS;	-	1	Enquire
010	13MA267CP	100MM - HIGH-LINE	13MA267CP 100MM - HIGH-LINE Superseded parts: 13M1025CP; Row ID: ID__13MA267CP_ContPgHS;	-	1	Enquire
011	13M1029CP	SPEAKER - 165MM	13M1029CP SPEAKER - 165MM Row ID: ID__13M1029CP_ContPgHS;	-	2	Enquire
011	13M1024CP	SPEAKER - 200MM - HIGH-LINE	13M1024CP SPEAKER - 200MM - HIGH-LINE Row ID: ID__13M1024CP_ContPgHS;	-	2	Enquire
012	13M1079CP	SPEAKER BRACKET - DOOR - LH - 165MM	13M1079CP SPEAKER BRACKET - DOOR - LH - 165MM Row ID: ID__13M1079CP_ContPgHS;	-	1	Enquire
012	13M1068CP	SPEAKER BRACKET - DOOR - LH - 200MM	13M1068CP SPEAKER BRACKET - DOOR - LH - 200MM Row ID: ID__13M1068CP_ContPgHS;	-	1	Enquire
013	13M1081CP	SPEAKER BRACKET - DOOR - RH - 165MM	13M1081CP SPEAKER BRACKET - DOOR - RH - 165MM Row ID: ID__13M1081CP_ContPgHS;	-	1	Enquire
013	13M1069CP	SPEAKER BRACKET - DOOR - RH - 200MM	13M1069CP SPEAKER BRACKET - DOOR - RH - 200MM Row ID: ID__13M1069CP_ContPgHS;	-	1	Enquire
014	13M1073CP	BRACKET - REAR QUARTER - 100MM - LH	13M1073CP BRACKET - REAR QUARTER - 100MM - LH Row ID: ID__13M1073CP_ContPgHS;	-	1	Enquire
015	13M1076CP	BRACKET - REAR QUARTER - 100MM - RH	13M1076CP BRACKET - REAR QUARTER - 100MM - RH Row ID: ID__13M1076CP_ContPgHS;	-	1	Enquire
016	22MA481GP	AUDIO AMPLIFIER 16CH	22MA481GP AUDIO AMPLIFIER 16CH Row ID: ID__22MA481GP_ContPgHS;	-	1	Enquire
017	22MA451GP	SOUND ABSORPTION FOAM FACIA	22MA451GP SOUND ABSORPTION FOAM FACIA Row ID: ID__22MA451GP_ContPgHS;	-	1	Enquire
018	13M1028CP	SPEAKER - 25MM	13M1028CP SPEAKER - 25MM Row ID: ID__13M1028CP_ContPgHS;	-	2	Enquire
018	14MA003CP	TWEETER - 25MM - HIGH LINE	14MA003CP TWEETER - 25MM - HIGH LINE Row ID: ID__14MA003CP_ContPgHS;	-	1	Enquire
019	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Row ID: ID__00RA432_ContPgHS;	-	14	Enquire
020	00RA491	SCREW - TORX - 3X20	00RA491 SCREW - TORX - 3X20 Row ID: ID__00RA491_ContPgHS;	-	3	Enquire
021	00RC027	WASHER - M4 FORM C - LARGE	00RC027 WASHER - M4 FORM C - LARGE Row ID: ID__00RC027_ContPgHS;	-	2	Enquire
022	00RX001	BOLT - M5X16 - HEX	00RX001 BOLT - M5X16 - HEX Row ID: ID__00RX001_ContPgHS;	-	2	Enquire
023	00RA165	BOLT - M5X8 - HEX	00RA165 BOLT - M5X8 - HEX Row ID: ID__00RA165_ContPgHS;	-	2	Enquire
024	00RA582	NUT - M5 - HEX	00RA582 NUT - M5 - HEX Row ID: ID__00RA582_ContPgHS;	-	2	Enquire
025	13MA267CP	100MM - HIGH-LINE	13MA267CP 100MM - HIGH-LINE Superseded parts: 13M1025CP; Row ID: ID__13MA267CP_ContPgHS;	-	1	Enquire
