37 - ELECTRICAL SYSTEMS - 37.4 - ALARM SYSTEM of McLaren McLaren GT McLaren GT

View All

McLaren GT McLaren GT - 37 - ELECTRICAL SYSTEMS - 37.4 - ALARM SYSTEM

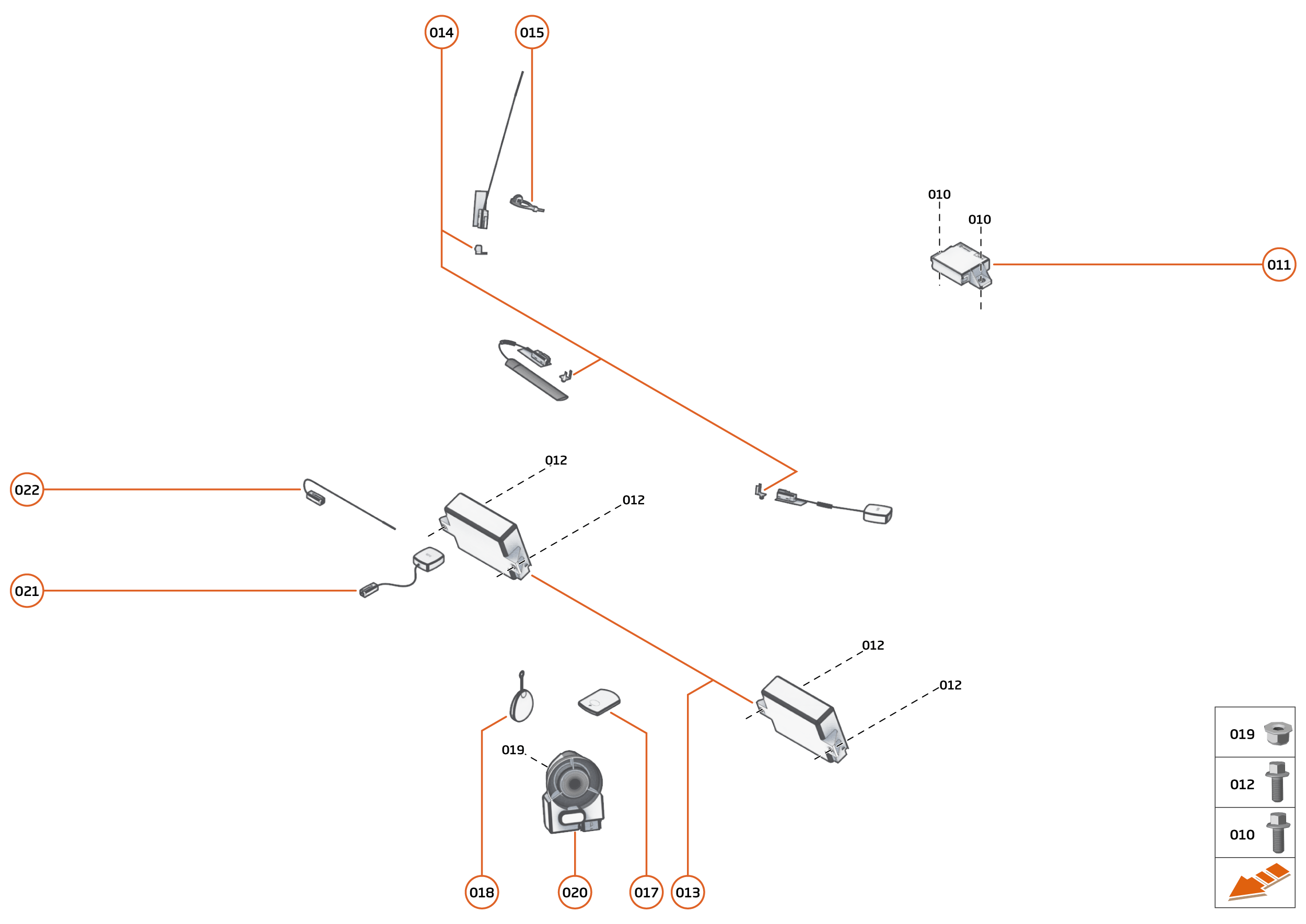

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	13M1514CP	NVH - CONTROL UNIT - ALARM & SIREN	13M1514CP NVH - CONTROL UNIT - ALARM & SIREN Row ID: ID__13M1514CP_ContPgHS;	-	1	Enquire
000	00RL004		00RL004 FELT TAPE; Row ID: ID__00RL004_ContPgHS;	-	1	Enquire
010	00RA556	BOLT - HEX - FLANGED - M6X16	00RA556 BOLT - HEX - FLANGED - M6X16 Row ID: ID__00RA556_ContPgHS;	-	2	Enquire
011	11M1077CP	SENSOR - ALARM ANTI-TOW	11M1077CP SENSOR - ALARM ANTI-TOW Row ID: ID__11M1077CP_ContPgHS;	-	1	Enquire
012	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER Row ID: ID__00RA313_ContPgHS;	-	3	Enquire
013	13M0604CP	CONTROL UNIT - SATELLITE TRACKING ALARM	13M0604CP CONTROL UNIT - SATELLITE TRACKING ALARM Row ID: ID__13M0604CP_ContPgHS;	-	1	Enquire
014	12M0555CP	CONNECTOR HOLDER - SINGLE	12M0555CP CONNECTOR HOLDER - SINGLE Row ID: ID__12M0555CP_ContPgHS;	-	1	Enquire
016	00RL001	CABLE TIE - FIRTREE BASE	00RL001 CABLE TIE - FIRTREE BASE Row ID: ID__00RL001_ContPgHS;	-	5	Enquire
017	11M0777CP	DRIVER CARD - SATELLITE TRACKING - RF	11M0777CP DRIVER CARD - SATELLITE TRACKING - RF Row ID: ID__11M0777CP_ContPgHS;	-	1	Enquire
018	11M1079CP	KEY FOB - TRACKER - BELGIUM	11M1079CP KEY FOB - TRACKER - BELGIUM Row ID: ID__11M1079CP_ContPgHS;	-	1	Enquire
019	00RA075	NUT - M8-8 - HEX	00RA075 NUT - M8-8 - HEX Row ID: ID__00RA075_ContPgHS;	-	2	Enquire
020	11M1927CP	CONTROL UNIT - ALARM & SIREN	11M1927CP CONTROL UNIT - ALARM & SIREN Row ID: ID__11M1927CP_ContPgHS;	-	1	Enquire
021	11M0066CP	ANTENNA - SATELLITE TRACKING - VDL - GPS	11M0066CP ANTENNA - SATELLITE TRACKING - VDL - GPS Row ID: ID__11M0066CP_ContPgHS;	-	1	Enquire
022	11M0776CP	ANTENNA - SATELLITE TRACKING - RF	11M0776CP ANTENNA - SATELLITE TRACKING - RF Row ID: ID__11M0776CP_ContPgHS;	-	1	Enquire
022	11M1076CP	ANTENNA - SATELLITE TRACKING - GSM	11M1076CP ANTENNA - SATELLITE TRACKING - GSM Row ID: ID__11M1076CP_ContPgHS;	-	1	Enquire
