36 - Wiring Harness - 36.3 - Non-Body Wiring Harness

McLaren GT McLaren GT

Find Your Part

McLaren GT McLaren GT - 36 - WIRING HARNESS - 36.3 - NON-BODY WIRING HARNESS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

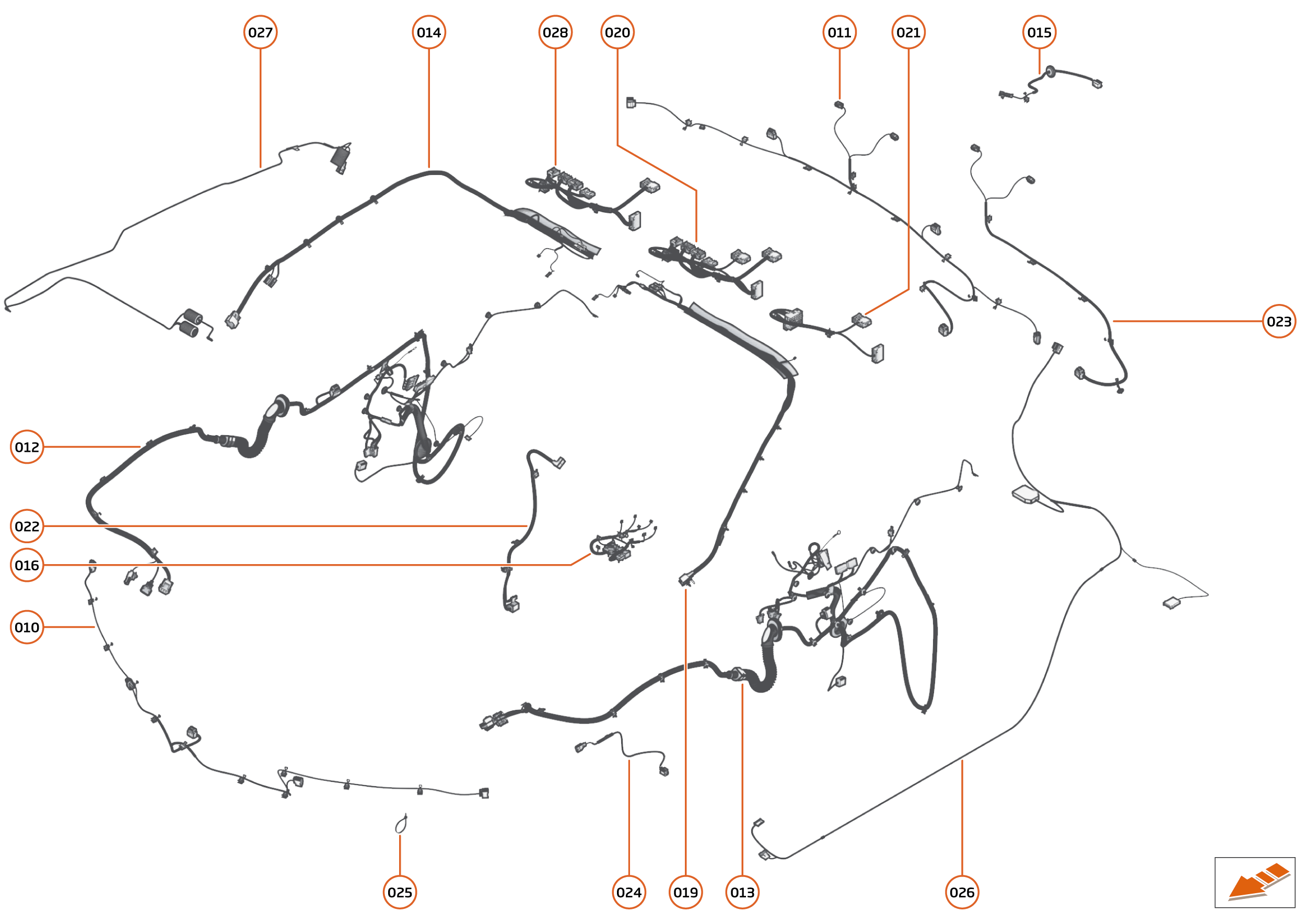

36 - WIRING HARNESS - 36.3 - NON-BODY WIRING HARNESS of McLaren McLaren GT McLaren GT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 22MA068GP
HARNESS FRONT BUMPER PDC
Row ID: ID__22MA068GP_ContPgHS; 		- 1 Enquire
011 22MA070GP
HARNESS REAR BUMPER PDC
Row ID: ID__22MA070GP_ContPgHS; 		- 1 Enquire
012 22MA581GP
HARNESS PASS DOOR LHD
Row ID: ID__22MA581GP_ContPgHS; 		- 1 Enquire
012 22MA580GP
HARNESS DRV DOOR RHD
Row ID: ID__22MA580GP_ContPgHS; 		- 1 Enquire
013 22MA578GP
HARNESS DRV DOOR LHD
Row ID: ID__22MA578GP_ContPgHS; 		- 1 Enquire
013 22MA579GP
HARNESS PASS DOOR RHD
Row ID: ID__22MA579GP_ContPgHS; 		- 1 Enquire
014 13MA095CP
WIRING HARNESS - ROOF - COUPE - GT - RHD
Row ID: ID__13MA095CP_ContPgHS; 		- 1 Enquire
014 22MA293GP
HARNESS ROOF RHD
Row ID: ID__22MA293GP_ContPgHS; 		- 1 Enquire
015 22MA371GP
HARNESS GT CHMSL FLY LEAD
Row ID: ID__22MA371GP_ContPgHS; 		- 1 Enquire
016 22MA032CP
P22 GT CONSOLE HARNESS
Row ID: ID__22MA032CP_ContPgHS; 		- 1 Enquire
017 22MA216GP
TAILGATE HARNESS
Row ID: ID__22MA216GP_ContPgHS; 		- 1 Enquire
018 22MA291GP
HARNESS ROOF LHD
Row ID: ID__22MA291GP_ContPgHS; 		- 1 Enquire
019 13MA096CP
WIRING HARNESS - ROOF - COUPE - GT - LHD
Row ID: ID__13MA096CP_ContPgHS; 		- 1 Enquire
020 22MA439GP
AUDIO 12-SPKR FLY LEAD
Row ID: ID__22MA439GP_ContPgHS; 		- 1 Enquire
021 22MA440GP
AUDIO 4-SPKR FLY LEAD
Row ID: ID__22MA440GP_ContPgHS; 		- 1 Enquire
022 22MA374GP
HARNESS CENTRE DISPLAY
Row ID: ID__22MA374GP_ContPgHS; 		- 1 Enquire
023 22MA391GP
HARNESS REAR BUMPER NON-PDC
Row ID: ID__22MA391GP_ContPgHS; 		- 1 Enquire
024 14MA249CP
HARNESS - HUB LEAD
Row ID: ID__14MA249CP_ContPgHS; 		- 1 Enquire
025 00RL012
CABLE TIE - 300X4.6MM
Row ID: ID__00RL012_ContPgHS; 		- 2 Enquire
026 22MA024MP
EC ROOF BODY HARNESS
Row ID: ID__22MA024MP_ContPgHS; 		- 1 Enquire
027 22MA020MP
SMART GLASS ROOF HARNESS
Row ID: ID__22MA020MP_ContPgHS; 		- 1 Enquire
028 22MA533GP
AUDIO 12-SPKR FLY LEAD
Row ID: ID__22MA533GP_ContPgHS; 		- 1 Enquire
