38 - ELECTRICAL HARDWARE - 38.2 - BRACKETS GROMMETS & FIXINGS of McLaren McLaren GT McLaren GT

View All

McLaren GT McLaren GT - 38 - ELECTRICAL HARDWARE - 38.2 - BRACKETS GROMMETS & FIXINGS

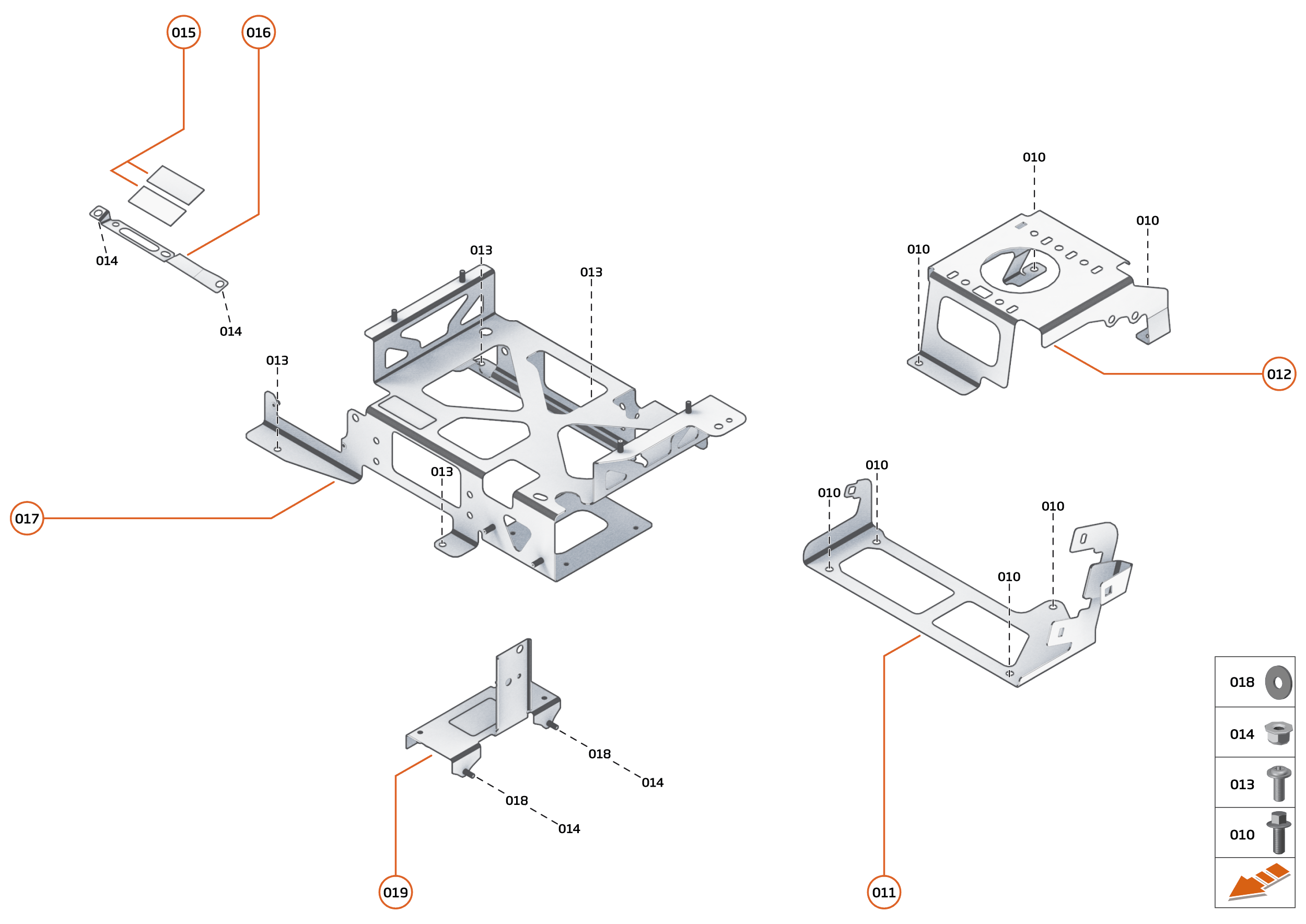

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA064	BOLT - M5X12 - HEX	00RA064 BOLT - M5X12 - HEX Row ID: ID__00RA064_ContPgHS;	-	2	Enquire
011	11M0502CP	BRACKET - INTERIOR FUSEBOX - REAR	11M0502CP BRACKET - INTERIOR FUSEBOX - REAR Row ID: ID__11M0502CP_ContPgHS;	-	1	Enquire
012	22MA276GP	ORC WIRING SUPPORT BRACKET	22MA276GP ORC WIRING SUPPORT BRACKET Row ID: ID__22MA276GP_ContPgHS;	-	1	Enquire
013	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Row ID: ID__00RA432_ContPgHS;	-	14	Enquire
014	00RA555	NUT - M5X0.8 - HEX LOCKED	00RA555 NUT - M5X0.8 - HEX LOCKED Row ID: ID__00RA555_ContPgHS;	-	1	Enquire
015	00RL004		00RL004 FELT TAPE; Row ID: ID__00RL004_ContPgHS;	-	1	Enquire
016	13M1311CP	AM/FM AMP BRACKET	13M1311CP AM/FM AMP BRACKET Row ID: ID__13M1311CP_ContPgHS;	-	1	Enquire
017	22MA449GP	BRKT-INFOTAINMENT ECU-HIGH AUDIO	22MA449GP BRKT-INFOTAINMENT ECU-HIGH AUDIO Row ID: ID__22MA449GP_ContPgHS;	-	1	Enquire
017	22MA365GP	BRKT-INFOTAINMENT ECU-HIGH AUDIO	22MA365GP BRKT-INFOTAINMENT ECU-HIGH AUDIO Row ID: ID__22MA365GP_ContPgHS;	-	1	Enquire
017	22MA448GP	BRKT-INFOTAINMENT ECU-BASE AUDIO	22MA448GP BRKT-INFOTAINMENT ECU-BASE AUDIO Row ID: ID__22MA448GP_ContPgHS;	-	1	Enquire
017	22MA364GP	BRKT-INFOTAINMENT ECU-BASE AUDIO	22MA364GP BRKT-INFOTAINMENT ECU-BASE AUDIO Row ID: ID__22MA364GP_ContPgHS;	-	1	Enquire
018	00RC016	WASHER - M6X12.5X1.8	00RC016 WASHER - M6X12.5X1.8 Row ID: ID__00RC016_ContPgHS;	-	4	Enquire
019	22MA452GP	BRKT- RADIO TUNER MODULE B2	22MA452GP BRKT- RADIO TUNER MODULE B2 Row ID: ID__22MA452GP_ContPgHS;	-	1	Enquire
019	22MA400GP	BRKT- RADIO TUNER MODULE	22MA400GP BRKT- RADIO TUNER MODULE Row ID: ID__22MA400GP_ContPgHS;	-	1	Enquire
