19 - SUSPENSION - 19.7 - TRANSVERSE LINKS REAR of McLaren McLaren McLaren Artura

View All

McLaren McLaren Artura - 19 - SUSPENSION - 19.7 - TRANSVERSE LINKS REAR

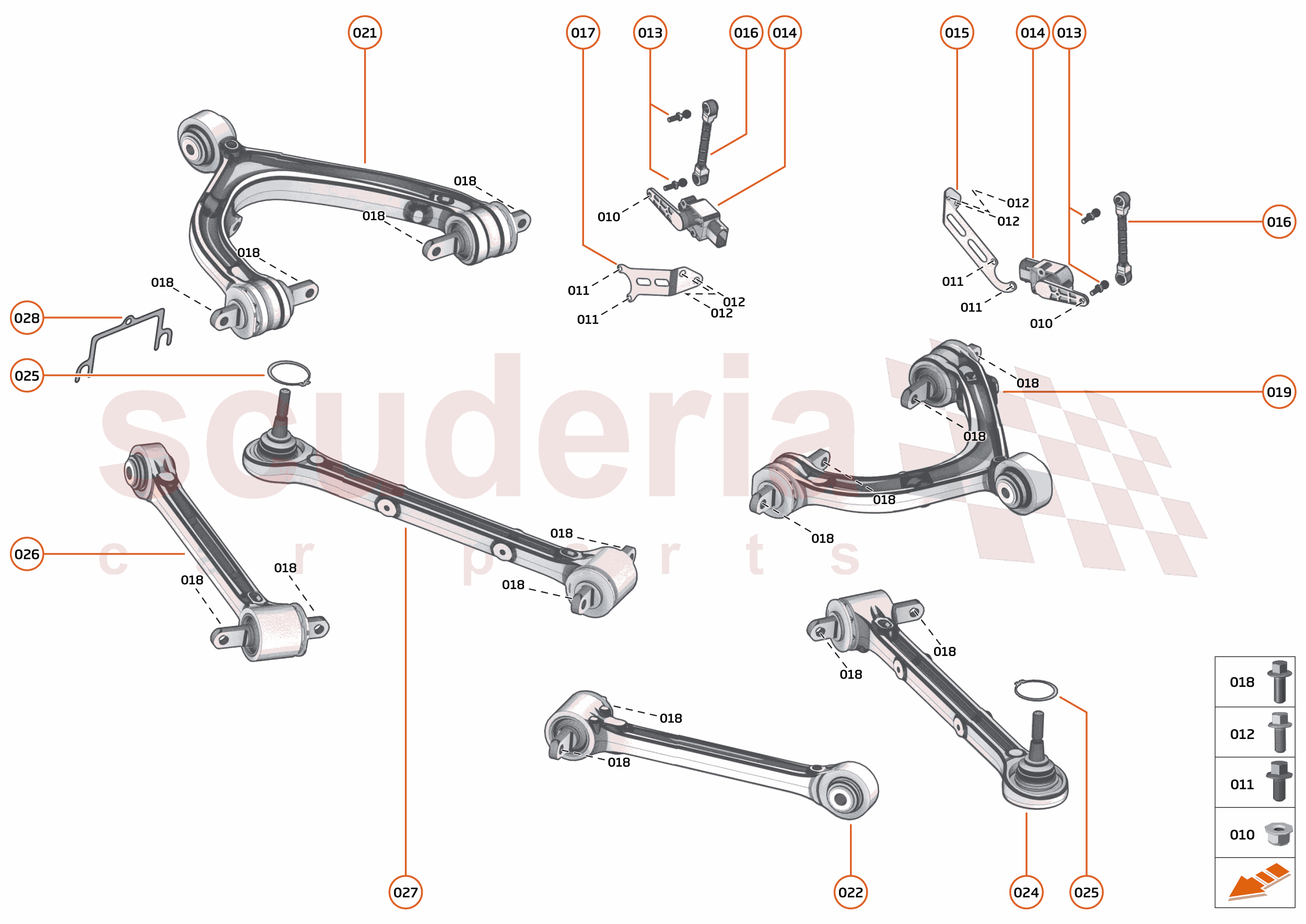

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RA055	NUT - M6 - LOCKING - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA087	SCREW - M5X10 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
			Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14B0545CP	BALL STUD - DISPLACEMENT SENSOR	$11.10	To Order

Photo	Part No	Description	Price (each)	Stock
	13B0681CP	SENSOR - DISPLACEMENT	$103.72	To Order

Photo	Part No	Description	Price (each)	Stock
	16B0021CP	BRKT WBONE DISPL SNSR RR LH	$31.21	To Order

Photo	Part No	Description	Price (each)	Stock
	14B0494CP	BALL SCKT SENSOR DISPLACEMENT - GIMBAL	$29.86	To Order

Photo	Part No	Description	Price (each)	Stock
	16B0024CP	BRKT WBONE DISPL SNSR RR RH	$31.21	To Order

Photo	Part No	Description	Price (each)	Stock
	00RX053	BOLT - WISHBONE - M10X1.5X35	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16BB042CP	ASSY WISHBONE UPR RR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16BB043CP	ASSY WISHBONE UPR RR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16BA566CP	ASSY LINK LWR FORE LH	$306.04	To Order

Photo	Part No	Description	Price (each)	Stock
	16BA563CP	ASSY LINK LWR AFT LH	$306.04	To Order

Photo	Part No	Description	Price (each)	Stock
	00RD007	CLIP-CIRCLIP-42-SS-00	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16BA567CP	ASSY LINK LWR FORE RH	$306.04	To Order

Photo	Part No	Description	Price (each)	Stock
	16BA564CP	ASSY LINK LWR AFT RH	$306.04	To Order

Photo	Part No	Description	Price (each)	Stock
	16BA304CP	CAMBER ADJUSTMENT SHIM 1MM	$13.75	To Order
	16BA305CP	CAMBER ADJUSTMENT SHIM 2MM	$9.20	To Order
	16BA306CP	CAMBER ADJUSTMENT SHIM 3MM	$13.29	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID__00RA055_ContPgHS; Resolution: Available;	-	1	Enquire
011	00RA087	SCREW - M5X10 - HEX	00RA087 SCREW - M5X10 - HEX Row ID: ID__00RA087_ContPgHS; Resolution: Available;	-	2	Enquire
012	-		Row ID: ID__00RA083_ContPgHS; Resolution: Available;	-	2	Enquire
013	14B0545CP	BALL STUD - DISPLACEMENT SENSOR	14B0545CP BALL STUD - DISPLACEMENT SENSOR Row ID: ID__14B0545CP_ContPgHS; Resolution: Available;	$11.10	2
014	13B0681CP	SENSOR - DISPLACEMENT	13B0681CP SENSOR - DISPLACEMENT Row ID: ID__13B0681CP_ContPgHS; Resolution: Available;	$103.72	1
015	16B0021CP	BRKT WBONE DISPL SNSR RR LH	16B0021CP BRKT WBONE DISPL SNSR RR LH Row ID: ID__16B0021CP_ContPgHS; Resolution: Available;	$31.21	1
016	14B0494CP	BALL SCKT SENSOR DISPLACEMENT - GIMBAL	14B0494CP BALL SCKT SENSOR DISPLACEMENT - GIMBAL Row ID: ID__14B0494CP_ContPgHS; Resolution: Available;	$29.86	1
017	16B0024CP	BRKT WBONE DISPL SNSR RR RH	16B0024CP BRKT WBONE DISPL SNSR RR RH Row ID: ID__16B0024CP_ContPgHS; Resolution: Available;	$31.21	1
018	00RX053	BOLT - WISHBONE - M10X1.5X35	00RX053 BOLT - WISHBONE - M10X1.5X35 Row ID: ID__00RX053_ContPgHS; Resolution: Available;	-	4	Enquire
019	16BB042CP	ASSY WISHBONE UPR RR LH	16BB042CP ASSY WISHBONE UPR RR LH Row ID: ID__16BB042CP_ContPgHS; Resolution: Available;	-	1	Enquire
021	16BB043CP	ASSY WISHBONE UPR RR RH	16BB043CP ASSY WISHBONE UPR RR RH Row ID: ID__16BB043CP_ContPgHS; Resolution: Available;	-	1	Enquire
022	16BA566CP	ASSY LINK LWR FORE LH	16BA566CP ASSY LINK LWR FORE LH Row ID: ID__16BA566CP_ContPgHS; Resolution: Available;	$306.04	1
024	16BA563CP	ASSY LINK LWR AFT LH	16BA563CP ASSY LINK LWR AFT LH Row ID: ID__16BA563CP_ContPgHS; Resolution: Available;	$306.04	1
025	00RD007	CLIP-CIRCLIP-42-SS-00	00RD007 CLIP-CIRCLIP-42-SS-00 Row ID: ID__00RD007_ContPgHS; Resolution: Available;	-	1	Enquire
026	16BA567CP	ASSY LINK LWR FORE RH	16BA567CP ASSY LINK LWR FORE RH Row ID: ID__16BA567CP_ContPgHS; Resolution: Available;	$306.04	1
027	16BA564CP	ASSY LINK LWR AFT RH	16BA564CP ASSY LINK LWR AFT RH Row ID: ID__16BA564CP_ContPgHS; Resolution: Available;	$306.04	1
028	16BA304CP	CAMBER ADJUSTMENT SHIM 1MM	16BA304CP CAMBER ADJUSTMENT SHIM 1MM Row ID: ID__16BA304CP_ContPgHS; Resolution: Available;	$13.75	1
028	16BA305CP	CAMBER ADJUSTMENT SHIM 2MM	16BA305CP CAMBER ADJUSTMENT SHIM 2MM Row ID: ID__16BA305CP_ContPgHS; Resolution: Available;	$9.20	4
028	16BA306CP	CAMBER ADJUSTMENT SHIM 3MM	16BA306CP CAMBER ADJUSTMENT SHIM 3MM Row ID: ID__16BA306CP_ContPgHS; Resolution: Available;	$13.29	1
028	16BA497CP	CAMBER ADJUSTMENT SHIM 4MM	16BA497CP CAMBER ADJUSTMENT SHIM 4MM Row ID: ID__16BA497CP_ContPgHS; Resolution: Available;	$14.34	1
