21 - Steering - 21.1 - Steering Fluid System

McLaren McLaren Artura

Find Your Part

McLaren McLaren Artura - 21 - STEERING - 21.1 - STEERING FLUID SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16DA028CP ASSY HOSE FEED MANIFOLD TO - RACK LHD $291.11 To Order
16DA036CP ASSY-HOSE-FEED-MANIFOLD TO - RACK-RHD $194.06 To Order
Photo Part No Description Price (each) Stock
00RA002 BOLT - M8X20 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RB046 CLIP - 8-9MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB042 SWIVEL PIPE CLIP Enquire To Order
Photo Part No Description Price (each) Stock
00RA540 SCREW - CAP HEAD - M8X1.25X20-10.9-72 Enquire To Order
Photo Part No Description Price (each) Stock
16DA029CP ASSY HOSE-FEED-PUMP TO RACK - LHD $182.79 To Order
16DA044CP ASSY HOSE-FEED-PUMP TO RACK - RHD $182.79 To Order
Photo Part No Description Price (each) Stock
00RB019 CLIP - 90DEG - FEMALE - 10-12MM Enquire To Order
Photo Part No Description Price (each) Stock
00RB045 CLIP - 9.5-10MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB110 OETIKER CLIP - 19.2 Enquire To Order
Photo Part No Description Price (each) Stock
16DA031CP HOSE-RACK TO FILTER-LHD Enquire To Order
16DA033CP HOSE-RACK TO FILTER-RHD $101.53 To Order
Photo Part No Description Price (each) Stock
16DA030CP HOSE-RESERVOIR TO FILTER PUMP $240.35 To Order
Photo Part No Description Price (each) Stock
16DA115CP FILTER-25 MICRON Enquire To Order
Photo Part No Description Price (each) Stock
00RB143 CLAMP - 25.6-706R Enquire To Order
Photo Part No Description Price (each) Stock
16DA128CP RESERVOIR-PAS FLUID $134.89 To Order
Photo Part No Description Price (each) Stock
00RA116 SCREW - M6X10 - BUTTON - 8.8 Enquire To Order
Photo Part No Description Price (each) Stock
16DA035CP ASSY-HOSE-FEED-PUMP TO LIFT - BLOCK $198.55 To Order
Photo Part No Description Price (each) Stock
16DA160CP RACK TO VALVE BLOCK PUSH-FIT - O-RING 11.210MM OD - VITON SHORE 75 BLACK Enquire To Order
Photo Part No Description Price (each) Stock
11C0502CP CAP-EHPAS RESERVOIR $114.20 To Order
View All

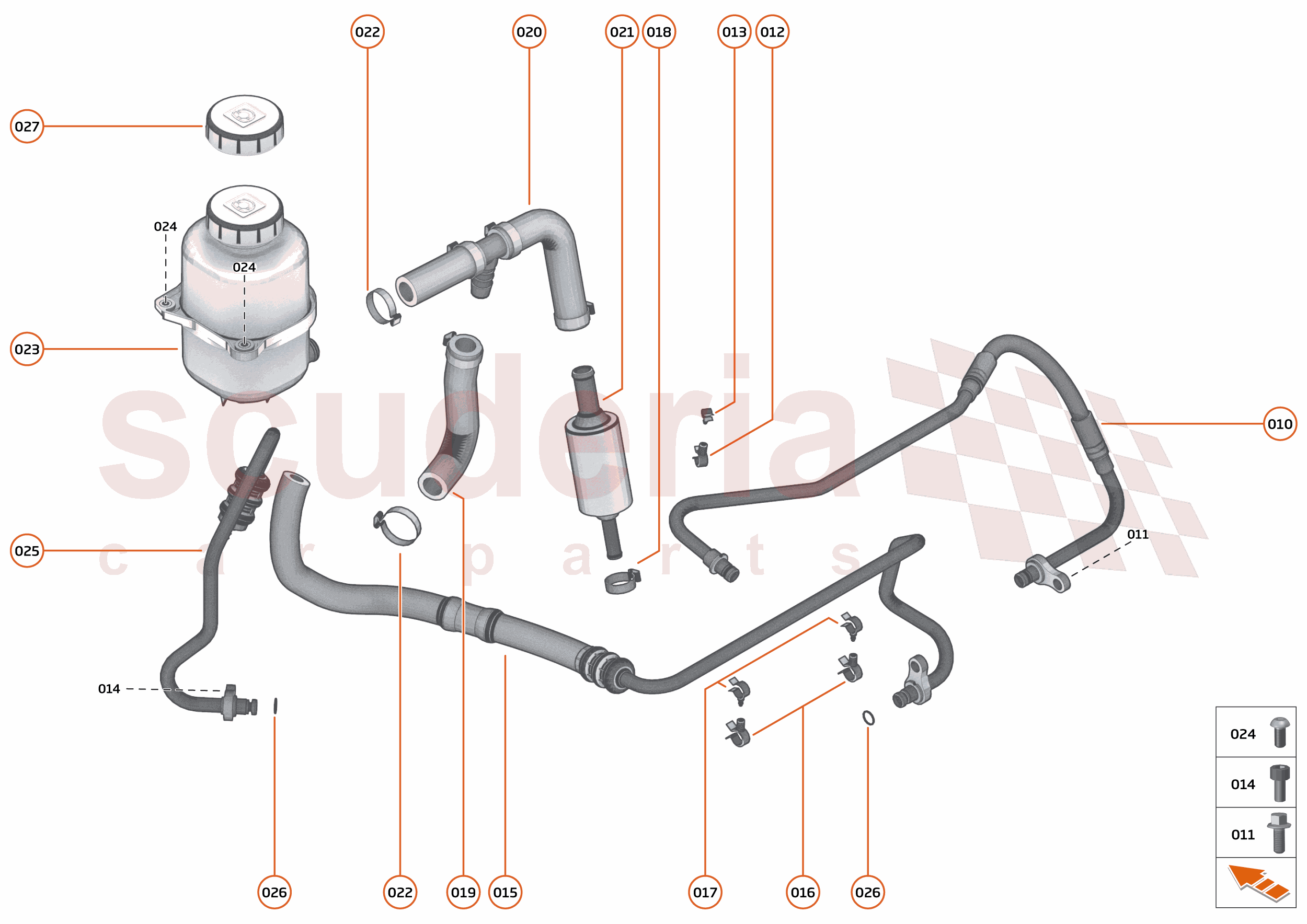

21 - STEERING - 21.1 - STEERING FLUID SYSTEM of McLaren McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 16DA028CP
ASSY HOSE FEED MANIFOLD TO - RACK LHD
Row ID: ID__16DA028CP_ContPgHS; Resolution: Available; 		$291.11 1
010 16DA036CP
ASSY-HOSE-FEED-MANIFOLD TO - RACK-RHD
Row ID: ID__16DA036CP_ContPgHS; Resolution: Available; 		$194.06 1
011 00RA002
BOLT - M8X20 - HEX
Row ID: ID__00RA002_ContPgHS; Resolution: Available; 		- 1 Enquire
012 00RB046
CLIP - 8-9MM - FEMALE
Row ID: ID__00RB046_ContPgHS; Resolution: Available; 		- 1 Enquire
013 00RB042
SWIVEL PIPE CLIP
Row ID: ID__00RB042_ContPgHS; Resolution: Available; 		- 1 Enquire
014 00RA540
SCREW - CAP HEAD - M8X1.25X20-10.9-72
Row ID: ID__00RA540_ContPgHS; Resolution: Available; 		- 1 Enquire
015 16DA029CP
ASSY HOSE-FEED-PUMP TO RACK - LHD
Row ID: ID__16DA029CP_ContPgHS; Resolution: Available; 		$182.79 1
015 16DA044CP
ASSY HOSE-FEED-PUMP TO RACK - RHD
Row ID: ID__16DA044CP_ContPgHS; Resolution: Available; 		$182.79 1
016 00RB019
CLIP - 90DEG - FEMALE - 10-12MM
Row ID: ID__00RB019_ContPgHS; Resolution: Available; 		- 2 Enquire
017 00RB045
CLIP - 9.5-10MM - MALE
Row ID: ID__00RB045_ContPgHS; Resolution: Available; 		- 2 Enquire
018 00RB110
OETIKER CLIP - 19.2
Row ID: ID__00RB110_ContPgHS; Resolution: Available; 		- 1 Enquire
019 16DA031CP
HOSE-RACK TO FILTER-LHD
Row ID: ID__16DA031CP_ContPgHS; Resolution: Available; 		- 1 Enquire
019 16DA033CP
HOSE-RACK TO FILTER-RHD
Row ID: ID__16DA033CP_ContPgHS; Resolution: Available; 		$101.53 1
020 16DA030CP
HOSE-RESERVOIR TO FILTER PUMP
Row ID: ID__16DA030CP_ContPgHS; Resolution: Available; 		$240.35 1
021 16DA115CP
FILTER-25 MICRON
Row ID: ID__16DA115CP_ContPgHS; Resolution: Available; 		- 1 Enquire
022 00RB143
CLAMP - 25.6-706R
Row ID: ID__00RB143_ContPgHS; Resolution: Available; 		- 2 Enquire
023 16DA128CP
RESERVOIR-PAS FLUID
Row ID: ID__16DA128CP_ContPgHS; Resolution: Available; 		$134.89 1
024 00RA116
SCREW - M6X10 - BUTTON - 8.8
Row ID: ID__00RA116_ContPgHS; Resolution: Available; 		- 2 Enquire
025 16DA035CP
ASSY-HOSE-FEED-PUMP TO LIFT - BLOCK
Row ID: ID__16DA035CP_ContPgHS; Resolution: Available; 		$198.55 1
026 16DA160CP
RACK TO VALVE BLOCK PUSH-FIT - O-RING 11.210MM OD - VITON SHORE 75 BLACK
Row ID: ID__16DA160CP_ContPgHS; Resolution: Available; 		- 1 Enquire
027 11C0502CP
CAP-EHPAS RESERVOIR
Row ID: ID__11C0502CP_ContPgHS; Resolution: Available; 		$114.20 1
