20 - Brakes - 20.7 - Brake Boost System

McLaren McLaren Artura

Find Your Part

McLaren McLaren Artura - 20 - BRAKES - 20.7 - BRAKE BOOST SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA573 BOLT - M10X1 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA585 STUD BALL - M6X9 Enquire To Order
Photo Part No Description Price (each) Stock
00RB184 CLIP - SNAPLOC - 18X10 Enquire To Order
Photo Part No Description Price (each) Stock
00RB187 CLIP - SNAPLOC - 14X7 Enquire To Order
Photo Part No Description Price (each) Stock
16CA057CP BRKT-ABS-MODULATOR $51.60 To Order
Photo Part No Description Price (each) Stock
00RA360 STUD BALL - M6X19 Enquire To Order
Photo Part No Description Price (each) Stock
00RA557 BOLT - HEX HEAD - M8X1.25X25 Enquire To Order
Photo Part No Description Price (each) Stock
14CA007CP BRACKET - BRAKE BOOSTER MOUNTING $213.47 To Order
Photo Part No Description Price (each) Stock
13CA216RP BRAKE BOOSTER - INC MASTER CYLINDER $1,249.88 To Order
Photo Part No Description Price (each) Stock
16MA558CP VACUUM SENSOR AND CHECK VALVE $49.97 To Order
Photo Part No Description Price (each) Stock
14CA030CP BOLT - BRAKE BOOSTER - M8X184 $21.85 To Order
Photo Part No Description Price (each) Stock
00RX003 BOLT - M6X1X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11M0432CP Sensor - Wheel Speed - Rear $171.31 To Order
Photo Part No Description Price (each) Stock
12M0735CP SENSOR - WHEEL SPEED $137.88 To Order
Photo Part No Description Price (each) Stock
14CA128CP HEATSHIELD - WHEEL SPEED SENSOR - FRONT $34.05 To Order
Photo Part No Description Price (each) Stock
00RB273 CLIP-BASE -FTREE-0.7-6.0X20 - NYL-BLK Enquire To Order
00RL001 CABLE TIE - FIRTREE BASE Enquire To Order
00RL029 Cable Tie - 300x5-80 - Black Enquire To Order
Photo Part No Description Price (each) Stock
11E0022CP Heatshield - Wheel Speed Sensor $41.49 To Order
Photo Part No Description Price (each) Stock
00RE012 O-RING - BRACKET - BRAKE BOOSTER Enquire To Order
View All

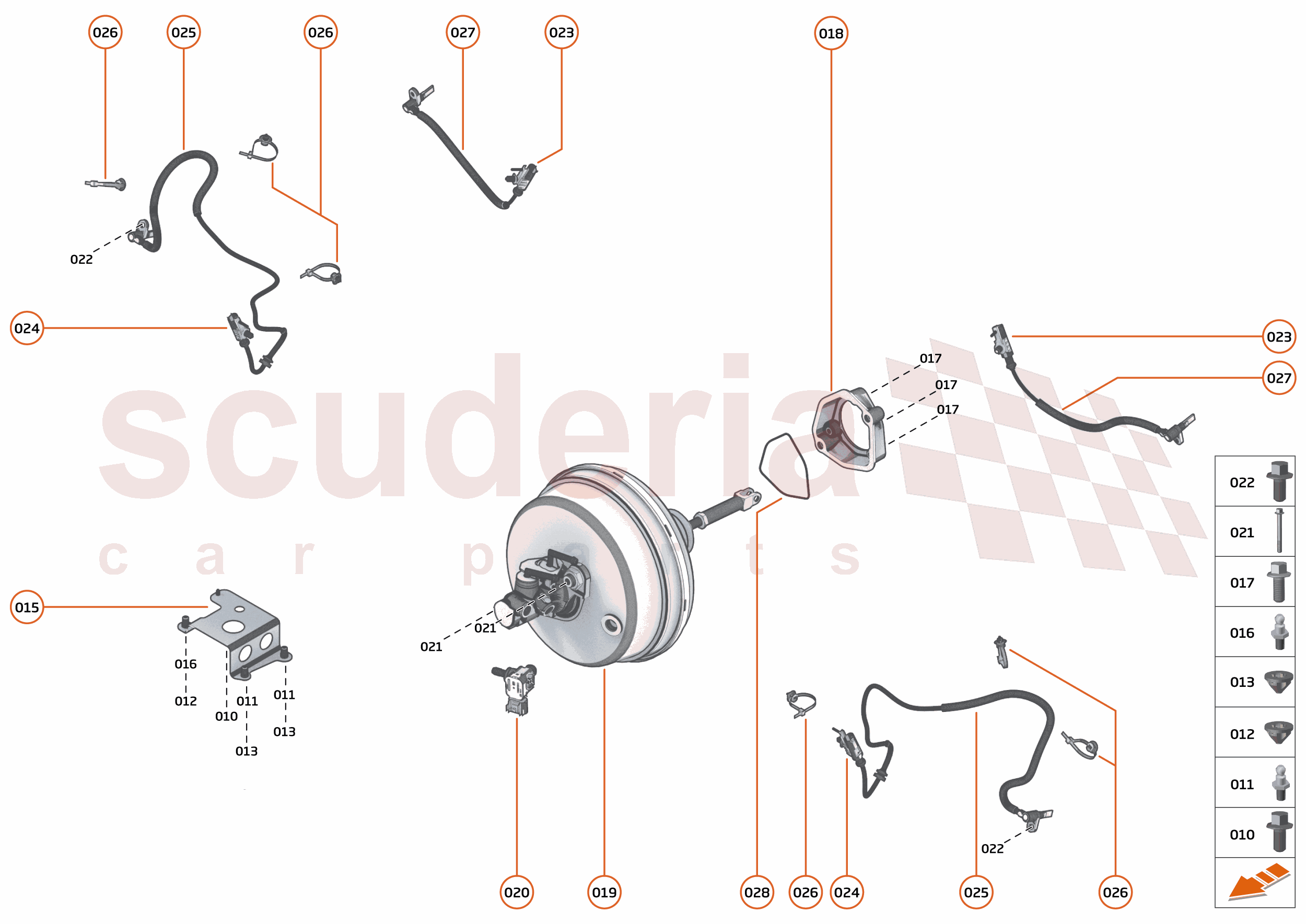

20 - BRAKES - 20.7 - BRAKE BOOST SYSTEM of McLaren McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA573
BOLT - M10X1 - HEX
Row ID: ID__00RA573_ContPgHS; Resolution: Available; 		- 1 Enquire
011 00RA585
STUD BALL - M6X9
Row ID: ID__00RA585_ContPgHS; Resolution: Available; 		- 2 Enquire
012 00RB184
CLIP - SNAPLOC - 18X10
Row ID: ID__00RB184_ContPgHS; Resolution: Available; 		- 1 Enquire
013 00RB187
CLIP - SNAPLOC - 14X7
Row ID: ID__00RB187_ContPgHS; Resolution: Available; 		- 2 Enquire
015 16CA057CP
BRKT-ABS-MODULATOR
Row ID: ID__16CA057CP_ContPgHS; Resolution: Available; 		$51.60 1
016 00RA360
STUD BALL - M6X19
Row ID: ID__00RA360_ContPgHS; Resolution: Available; 		- 1 Enquire
017 00RA557
BOLT - HEX HEAD - M8X1.25X25
Row ID: ID__00RA557_ContPgHS; Resolution: Available; 		- 3 Enquire
018 14CA007CP
BRACKET - BRAKE BOOSTER MOUNTING
Row ID: ID__14CA007CP_ContPgHS; Resolution: Available; 		$213.47 1
019 13CA216RP
BRAKE BOOSTER - INC MASTER CYLINDER
Row ID: ID__13CA216RP_ContPgHS; Resolution: Available; 		$1,249.88 1
020 16MA558CP
VACUUM SENSOR AND CHECK VALVE
Row ID: ID__16MA558CP_ContPgHS; Resolution: Available; 		$49.97 1
021 14CA030CP
BOLT - BRAKE BOOSTER - M8X184
Row ID: ID__14CA030CP_ContPgHS; Resolution: Available; 		$21.85 2
022 00RX003
BOLT - M6X1X12 - HEX
Row ID: ID__00RX003_ContPgHS; Resolution: Available; 		- 2 Enquire
023 11M0432CP
Sensor - Wheel Speed - Rear
Row ID: ID__11M0432CP_ContPgHS; Resolution: Available; 		$171.31 1
024 12M0735CP
SENSOR - WHEEL SPEED
Row ID: ID__12M0735CP_ContPgHS; Resolution: Available; 		$137.88 1
025 14CA128CP
HEATSHIELD - WHEEL SPEED SENSOR - FRONT
Row ID: ID__14CA128CP_ContPgHS; Resolution: Available; 		$34.05 1
026 00RB273
CLIP-BASE -FTREE-0.7-6.0X20 - NYL-BLK
Row ID: ID__00RB273_ContPgHS; Resolution: Available; 		- 1 Enquire
026 00RL001
CABLE TIE - FIRTREE BASE
Row ID: ID__00RL001_ContPgHS; Resolution: Available; 		- 3 Enquire
026 00RL029
Cable Tie - 300x5-80 - Black
Row ID: ID__00RL029_ContPgHS; Resolution: Available; 		- 1 Enquire
027 11E0022CP
Heatshield - Wheel Speed Sensor
Row ID: ID__11E0022CP_ContPgHS; Resolution: Available; 		$41.49 1
028 00RE012
O-RING - BRACKET - BRAKE BOOSTER
Row ID: ID__00RE012_ContPgHS; Resolution: Available; 		- 1 Enquire
029 16CA225CP
ABS MODULATOR 46 PIN EUCON - PRE-FILLED
Row ID: ID__16CA225CP_ContPgHS; Resolution: Available; 		- 1 Enquire
