19 - Suspension - 19.6 - Uprights Rear

McLaren McLaren Artura

Find Your Part

McLaren McLaren Artura - 19 - SUSPENSION - 19.6 - UPRIGHTS REAR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16BA506CP WASHER-DIA35 X 5.0 X 12.1 $12.89 To Order
Photo Part No Description Price (each) Stock
16BA314CP PROTECTOR CAP-HUB $36.20 To Order
Photo Part No Description Price (each) Stock
16BB034CP ASSY UPRIGHT RR LH - NO ACCEL SENSOR Enquire To Order
Photo Part No Description Price (each) Stock
11B0800CP TOPHAT - SPACER - DIAMETER 20 - 10.2ID $41.06 To Order
Photo Part No Description Price (each) Stock
14BA220CP HEX SOCKET HD CAP M12X30 8.8 $3.35 To Order
Photo Part No Description Price (each) Stock
16BA282CP TOPHAT SPACER LINK $25.31 To Order
Photo Part No Description Price (each) Stock
16BA308CP ASSY-HUB WHEEL BEARING AND - SENSOR $334.40 To Order
Photo Part No Description Price (each) Stock
16BA484CP TOPHAT SPACER Enquire To Order
Photo Part No Description Price (each) Stock
16BA503CP TAPER INSERT BALL JOINT $25.31 To Order
Photo Part No Description Price (each) Stock
00RX048 Bolt - M12x90 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RA562 BLT-HX HD-FL-M14X2X110-10.9-72 Enquire To Order
Photo Part No Description Price (each) Stock
11B1314CP BOLT - M10X70 - DAMPER MOUNTING - LOWER $8.10 To Order
Photo Part No Description Price (each) Stock
00RA005 NUT - M12 - LOCK HEX Enquire To Order
Photo Part No Description Price (each) Stock
16BB036CP ASSY UPRIGHT RR RH - NO ACCEL SENSOR Enquire To Order
Photo Part No Description Price (each) Stock
00RA759 BOLT - M5X8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
16BA055CP HEATSHIELD RR LWR LH $42.06 To Order
Photo Part No Description Price (each) Stock
16BA861CP HEATSHIELD TOE LINK RR Enquire To Order
Photo Part No Description Price (each) Stock
16BA470CP HEATSHIELD RR LWR RH $42.06 To Order
Photo Part No Description Price (each) Stock
16MB093CP SENSOR HUB ACCELEROMETER $113.43 To Order
Photo Part No Description Price (each) Stock
16BA899CP HEATSHIELD RR UPR $26.22 To Order
View All

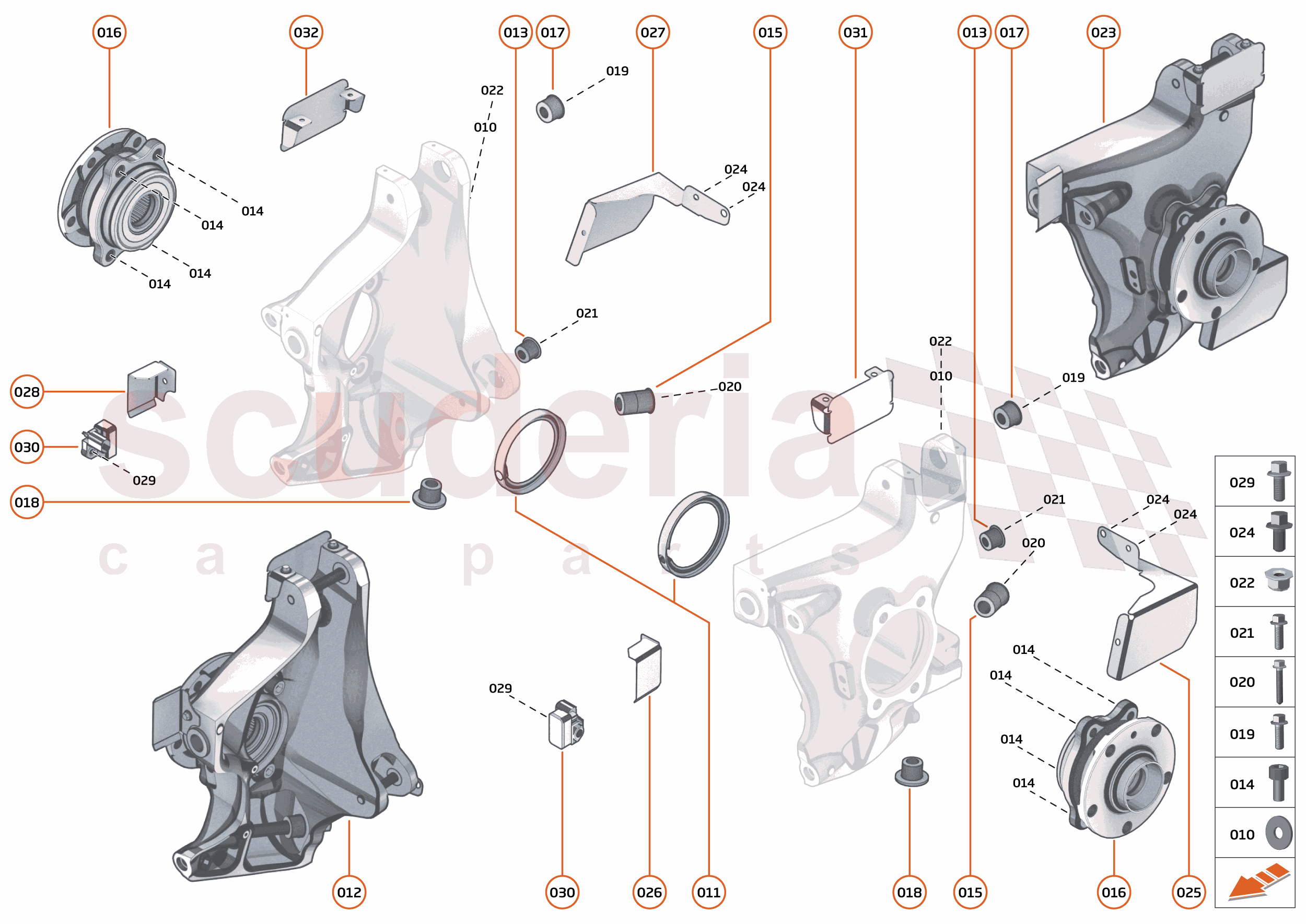

19 - SUSPENSION - 19.6 - UPRIGHTS REAR of McLaren McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 16BA506CP
WASHER-DIA35 X 5.0 X 12.1
Row ID: ID__16BA506CP_ContPgHS; Resolution: Available; 		$12.89 1
011 16BA314CP
PROTECTOR CAP-HUB
Row ID: ID__16BA314CP_ContPgHS; Resolution: Available; 		$36.20 1
012 16BB034CP
ASSY UPRIGHT RR LH - NO ACCEL SENSOR
Row ID: ID__16BB034CP_ContPgHS; Resolution: Available; 		- 1 Enquire
013 11B0800CP
TOPHAT - SPACER - DIAMETER 20 - 10.2ID
Row ID: ID__11B0800CP_ContPgHS; Resolution: Available; 		$41.06 1
014 14BA220CP
HEX SOCKET HD CAP M12X30 8.8
Row ID: ID__14BA220CP_ContPgHS; Resolution: Available; 		$3.35 4
015 16BA282CP
TOPHAT SPACER LINK
Row ID: ID__16BA282CP_ContPgHS; Resolution: Available; 		$25.31 1
016 16BA308CP
ASSY-HUB WHEEL BEARING AND - SENSOR
Row ID: ID__16BA308CP_ContPgHS; Resolution: Available; 		$334.40 1
017 16BA484CP
TOPHAT SPACER
Row ID: ID__16BA484CP_ContPgHS; Resolution: Available; 		- 1 Enquire
018 16BA503CP
TAPER INSERT BALL JOINT
Row ID: ID__16BA503CP_ContPgHS; Resolution: Available; 		$25.31 1
019 00RX048
Bolt - M12x90 - Hex
Row ID: ID__00RX048_ContPgHS; Resolution: Available; 		- 1 Enquire
020 00RA562
BLT-HX HD-FL-M14X2X110-10.9-72
Row ID: ID__00RA562_ContPgHS; Resolution: Available; 		- 1 Enquire
021 11B1314CP
BOLT - M10X70 - DAMPER MOUNTING - LOWER
Row ID: ID__11B1314CP_ContPgHS; Resolution: Available; 		$8.10 1
022 00RA005
NUT - M12 - LOCK HEX
Row ID: ID__00RA005_ContPgHS; Resolution: Available; 		- 1 Enquire
023 16BB036CP
ASSY UPRIGHT RR RH - NO ACCEL SENSOR
Row ID: ID__16BB036CP_ContPgHS; Resolution: Available; 		- 1 Enquire
024 00RA759
BOLT - M5X8 - HEX
Row ID: ID__00RA759_ContPgHS; Resolution: Available; 		- 2 Enquire
025 16BA055CP
HEATSHIELD RR LWR LH
Row ID: ID__16BA055CP_ContPgHS; Resolution: Available; 		$42.06 1
026 16BA861CP
HEATSHIELD TOE LINK RR
Row ID: ID__16BA861CP_ContPgHS; Resolution: Available; 		- 1 Enquire
027 16BA470CP
HEATSHIELD RR LWR RH
Row ID: ID__16BA470CP_ContPgHS; Resolution: Available; 		$42.06 1
030 16MB093CP
SENSOR HUB ACCELEROMETER
Row ID: ID__16MB093CP_ContPgHS; Resolution: Available; 		$113.43 2
031 16BA899CP
HEATSHIELD RR UPR
Row ID: ID__16BA899CP_ContPgHS; Resolution: Available; 		$26.22 1
