McLaren McLaren 570GT - 23 - BRAKES - SYSTEMS - 23.4 - BRAKE PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11C0680CP BRAKE HOSE - IRON - CARBON - FRONT $60.73 To Order
Photo Part No Description Price (each) Stock
11C0635CP Bracket - Brake Pipe - Front - LH $76.93 To Order
Photo Part No Description Price (each) Stock
00RA087 SCREW - M5X10 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
13C0162CP Brake Pipe - ABS Modulator to Frame - Front - LH $78.04 To Order
Photo Part No Description Price (each) Stock
11C0391CP CLIP - SINGLE - DIA 6MM - MOULDED $5.65 To Order
Photo Part No Description Price (each) Stock
00RB168 SWIVEL CLIP - 4.3-5.2 - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB044 SWIVEL PIPE CLIP - 16MM Enquire To Order
Photo Part No Description Price (each) Stock
13C0163CP Brake Pipe - ABS Modulator to Frame - Front - RH $53.74 To Order
Photo Part No Description Price (each) Stock
11C0634CP Bracket - Brake Pipe - Front - RH $76.93 To Order
Photo Part No Description Price (each) Stock
13C0160CP Brake Pipe - ABS Modulator - Master Cylinder Secondary - Front - LHD Enquire To Order
13C0161CP Brake Pipe - ABS Modulator - Master Cylinder Secondary - Front - RHD $46.81 To Order
Photo Part No Description Price (each) Stock
00RB043 CLIP - DOUBLE - DIA 6 Enquire To Order
Photo Part No Description Price (each) Stock
13C0158CP Brake Pipe - ABS Modulator - Master Cylinder Primary - Front - LHD Enquire To Order
13C0159CP Brake Pipe - ABS Modulator - Master Cylinder Primary - Front - RHD $46.81 To Order
Photo Part No Description Price (each) Stock
00RB024 Clip - 6.0-6.5mm - Female Enquire To Order
Photo Part No Description Price (each) Stock
00RB018 CLIP - 11-13MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
13C0202CP Brake Pipe - ABS Modulator to Frame - Rear - LH $93.68 To Order
Photo Part No Description Price (each) Stock
13C0203CP Brake Pipe - ABS Modulator to Frame - Rear - RH $88.50 To Order
Photo Part No Description Price (each) Stock
00RB042 SWIVEL PIPE CLIP Enquire To Order
Photo Part No Description Price (each) Stock
11C0392CP PIPE CLIP - 5 WAY - BRAKE PIPE $18.59 To Order
Photo Part No Description Price (each) Stock
11C0237CP CLAMP - CHASSIS TUNNEL $32.83 To Order
Photo Part No Description Price (each) Stock
11CA014CP Foam Pad - Brake - Vacuum Pipe $23.03 To Order
Photo Part No Description Price (each) Stock
13C0166CP Brake Pipe - ABS Modulator to Hose - Rear - LH $62.41 To Order
Photo Part No Description Price (each) Stock
00RB063 P CLIP - DIA 6 (M6) Enquire To Order
Photo Part No Description Price (each) Stock
13C0167CP Brake Pipe - ABS Modulator to Hose - Rear - RH $62.41 To Order
Photo Part No Description Price (each) Stock
13C0185CP Bracket - Brake Pipe - Rear - LH $16.11 To Order
Photo Part No Description Price (each) Stock
13C0186CP Bracket - Brake Pipe - Rear - RH $16.11 To Order
Photo Part No Description Price (each) Stock
00RX001 Bolt - M5x16 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
13C0173CP Brake Hose - Rear $67.66 To Order
13C0188CP BRAKE HOSE - CARBON - REAR $75.89 To Order
Photo Part No Description Price (each) Stock
00RB177 Clip - Hose - Triple Enquire To Order
Photo Part No Description Price (each) Stock
11C0501CP Banjo Bolt - Brake Hose - Inc. Washers $19.15 To Order
Photo Part No Description Price (each) Stock
11C0592CP WASHER - COPPER - BRAKE HOSE $4.04 To Order
View All

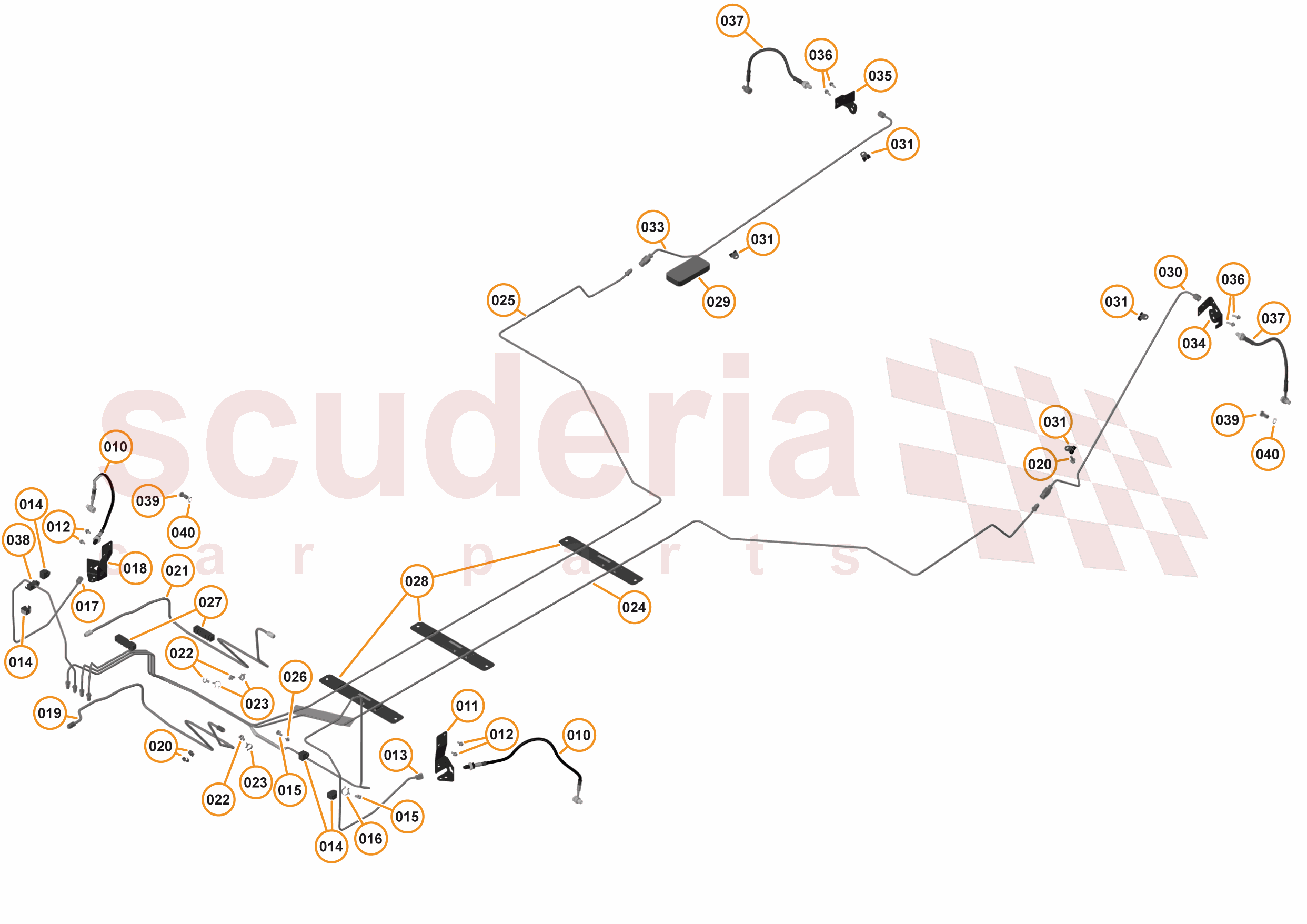

23 - BRAKES - SYSTEMS - 23.4 - BRAKE PIPES of McLaren McLaren McLaren 570GT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11C0680CP
BRAKE HOSE - IRON - CARBON - FRONT
Row ID: ID_CDCC0401_11C0680CP_ContPgHS; Resolution: Available; 		$60.73 2
011 11C0635CP
Bracket - Brake Pipe - Front - LH
Row ID: ID_CDCC0402_11C0635CP_ContPgHS; Resolution: Available; 		$76.93 1
012 00RA087
SCREW - M5X10 - HEX
Row ID: ID_CDCC0403_00RA087_ContPgHS; Resolution: Available; 		- 4 Enquire
013 13C0162CP
Brake Pipe - ABS Modulator to Frame - Front - LH
Row ID: ID_CDCC0404_13C0162CP_ContPgHS; Resolution: Available; 		$78.04 1
014 11C0391CP
CLIP - SINGLE - DIA 6MM - MOULDED
Row ID: ID_CDCC0405_11C0391CP_ContPgHS; Resolution: Available; 		$5.65 4
015 00RB168
SWIVEL CLIP - 4.3-5.2 - FEMALE
Row ID: ID_CDCC0406_00RB168_ContPgHS; Resolution: Available; 		- 3 Enquire
016 00RB044
SWIVEL PIPE CLIP - 16MM
Row ID: ID_CDCC0407_00RB044_ContPgHS; Resolution: Available; 		- 1 Enquire
017 13C0163CP
Brake Pipe - ABS Modulator to Frame - Front - RH
Row ID: ID_CDCC0408_13C0163CP_ContPgHS; Resolution: Available; 		$53.74 1
018 11C0634CP
Bracket - Brake Pipe - Front - RH
Row ID: ID_CDCC0409_11C0634CP_ContPgHS; Resolution: Available; 		$76.93 1
019 13C0160CP
Brake Pipe - ABS Modulator - Master Cylinder Secondary - Front - LHD
Row ID: ID_CDCC0410_13C0160CP_ContPgHS; Resolution: Available; 		- 1 Enquire
019 13C0161CP
Brake Pipe - ABS Modulator - Master Cylinder Secondary - Front - RHD
Row ID: ID_CDCC0411_13C0161CP_ContPgHS; Resolution: Available; 		$46.81 1
020 00RB043
CLIP - DOUBLE - DIA 6
Row ID: ID_CDCC0412_00RB043_ContPgHS; Resolution: Available; 		- 2 Enquire
021 13C0158CP
Brake Pipe - ABS Modulator - Master Cylinder Primary - Front - LHD
Row ID: ID_CDCC0413_13C0158CP_ContPgHS; Resolution: Available; 		- 1 Enquire
021 13C0159CP
Brake Pipe - ABS Modulator - Master Cylinder Primary - Front - RHD
Row ID: ID_CDCC0414_13C0159CP_ContPgHS; Resolution: Available; 		$46.81 1
022 00RB024
Clip - 6.0-6.5mm - Female
Row ID: ID_CDCC0415_00RB024_ContPgHS; Resolution: Available; 		- 3 Enquire
023 00RB018
CLIP - 11-13MM - MALE
Row ID: ID_CDCC0416_00RB018_ContPgHS; Resolution: Available; 		- 3 Enquire
024 13C0202CP
Brake Pipe - ABS Modulator to Frame - Rear - LH
Row ID: ID_CDCC0417_13C0202CP_ContPgHS; Resolution: Available; 		$93.68 1
025 13C0203CP
Brake Pipe - ABS Modulator to Frame - Rear - RH
Row ID: ID_CDCC0418_13C0203CP_ContPgHS; Resolution: Available; 		$88.50 1
026 00RB042
SWIVEL PIPE CLIP
Row ID: ID_CDCC0419_00RB042_ContPgHS; Resolution: Available; 		- 1 Enquire
027 11C0392CP
PIPE CLIP - 5 WAY - BRAKE PIPE
Row ID: ID_CDCC0420_11C0392CP_ContPgHS; Resolution: Available; 		$18.59 2
028 11C0237CP
CLAMP - CHASSIS TUNNEL
Row ID: ID_CDCC0421_11C0237CP_ContPgHS; Resolution: Available; 		$32.83 3
029 11CA014CP
Foam Pad - Brake - Vacuum Pipe
Row ID: ID_CDCC0422_11CA014CP_ContPgHS; Resolution: Available; 		$23.03 1
030 13C0166CP
Brake Pipe - ABS Modulator to Hose - Rear - LH
Row ID: ID_CDCC0423_13C0166CP_ContPgHS; Resolution: Available; 		$62.41 1
031 00RB063
P CLIP - DIA 6 (M6)
Row ID: ID_CDCC0424_00RB063_ContPgHS; Resolution: Available; 		- 4 Enquire
032 00RA313
Screw - M6x16 - Hex - Silver
Row ID: ID_CDCC0425_00RA313_ContPgHS; Resolution: Available; 		- 4 Enquire
033 13C0167CP
Brake Pipe - ABS Modulator to Hose - Rear - RH
Row ID: ID_CDCC0426_13C0167CP_ContPgHS; Resolution: Available; 		$62.41 1
034 13C0185CP
Bracket - Brake Pipe - Rear - LH
Row ID: ID_CDCC0427_13C0185CP_ContPgHS; Resolution: Available; 		$16.11 1
035 13C0186CP
Bracket - Brake Pipe - Rear - RH
Row ID: ID_CDCC0428_13C0186CP_ContPgHS; Resolution: Available; 		$16.11 1
036 00RX001
Bolt - M5x16 - Hex
Row ID: ID_CDCC0429_00RX001_ContPgHS; Resolution: Available; 		- 4 Enquire
037 13C0173CP
Brake Hose - Rear
Row ID: ID_CDCC0430_13C0173CP_ContPgHS; Resolution: Available; 		$67.66 2
037 13C0188CP
BRAKE HOSE - CARBON - REAR
Row ID: ID_CDCC0431_13C0188CP_ContPgHS; Resolution: Available; 		$75.89 2
038 00RB177
Clip - Hose - Triple
Row ID: ID_CDCC0432_00RB177_ContPgHS; Resolution: Available; 		- 1 Enquire
039 11C0501CP
Banjo Bolt - Brake Hose - Inc. Washers
Row ID: ID_CDCC0433_11C0501CP_ContPgHS; Resolution: Available; 		$19.15 4
040 11C0592CP
WASHER - COPPER - BRAKE HOSE
Row ID: ID__11C0592CP_ContPgHS; Resolution: Available; 		$4.04 1
