18 - SUSPENSION - SYSTEMS - 18.1 - SUSPENSION FLUID SYSTEMS of McLaren McLaren McLaren 570GT

View All

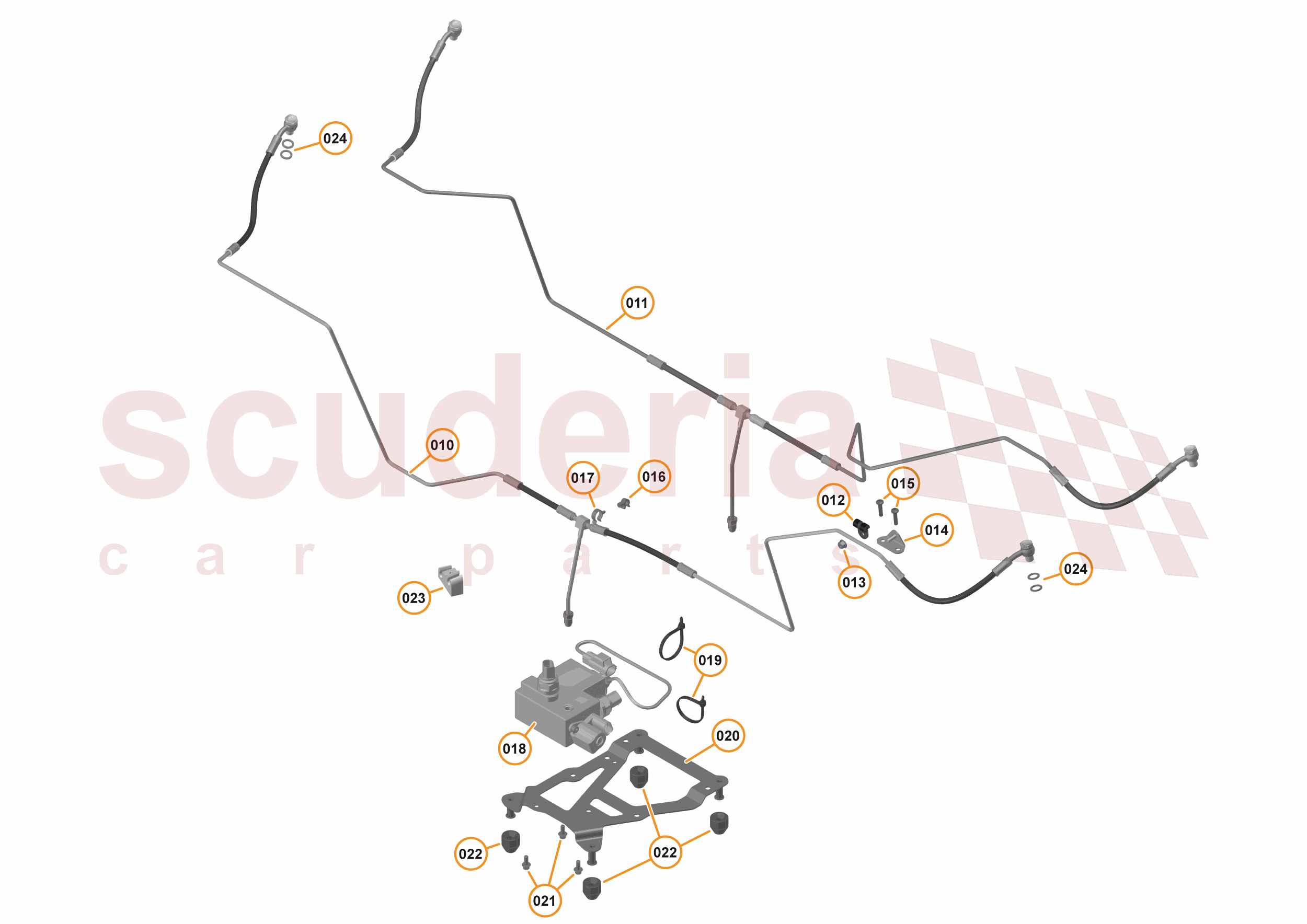

McLaren McLaren 570GT - 18 - SUSPENSION - SYSTEMS - 18.1 - SUSPENSION FLUID SYSTEMS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	13BA105CP	Hose - Suspension - Front - Nose Lift - LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13BA107CP	Hose - Suspension - Front - Nose Lift - RHD	$243.34	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB063	P CLIP - DIA 6 (M6)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA555	NUT - M5X0.8 - HEX LOCKED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11B1107CP	BRACKET - PIPE - SUSPENSION - NOSELIFT	$43.68	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA405	Screw - Torx - Button - Lock - M5x20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB024	Clip - 6.0-6.5mm - Female	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB018	CLIP - 11-13MM - MALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13B0737CP	Valve Block - Nose Lift	$989.76	To Order

Photo	Part No	Description	Price (each)	Stock
	00RL012	CABLE TIE - 300X4.6MM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	13BA105CP	Hose - Suspension - Front - Nose Lift - LHD	13BA105CP Hose - Suspension - Front - Nose Lift - LHD Row ID: ID_CDBC0101_13BA105CP_ContPgHS; Resolution: Available;	-	1	Enquire
011	13BA107CP	Hose - Suspension - Front - Nose Lift - RHD	13BA107CP Hose - Suspension - Front - Nose Lift - RHD Row ID: ID_CDBC0102_13BA107CP_ContPgHS; Resolution: Available;	$243.34	1
012	00RB063	P CLIP - DIA 6 (M6)	00RB063 P CLIP - DIA 6 (M6) Row ID: ID_CDBC0103_00RB063_ContPgHS; Resolution: Available;	-	1	Enquire
013	00RA555	NUT - M5X0.8 - HEX LOCKED	00RA555 NUT - M5X0.8 - HEX LOCKED Row ID: ID_CDBC0104_00RA555_ContPgHS; Resolution: Available;	-	1	Enquire
014	11B1107CP	BRACKET - PIPE - SUSPENSION - NOSELIFT	11B1107CP BRACKET - PIPE - SUSPENSION - NOSELIFT Row ID: ID_CDBC0105_11B1107CP_ContPgHS; Resolution: Available;	$43.68	1
015	00RA405	Screw - Torx - Button - Lock - M5x20	00RA405 Screw - Torx - Button - Lock - M5x20 Row ID: ID_CDBC0106_00RA405_ContPgHS; Resolution: Available;	-	2	Enquire
016	00RB024	Clip - 6.0-6.5mm - Female	00RB024 Clip - 6.0-6.5mm - Female Row ID: ID_CDBC0107_00RB024_ContPgHS; Resolution: Available;	-	1	Enquire
017	00RB018	CLIP - 11-13MM - MALE	00RB018 CLIP - 11-13MM - MALE Row ID: ID_CDBC0108_00RB018_ContPgHS; Resolution: Available;	-	1	Enquire
018	13B0737CP	Valve Block - Nose Lift	13B0737CP Valve Block - Nose Lift Row ID: ID_CDBC0109_13B0737CP_ContPgHS; Resolution: Available;	$989.76	1
019	00RL012	CABLE TIE - 300X4.6MM	00RL012 CABLE TIE - 300X4.6MM Row ID: ID_CDBC0110_00RL012_ContPgHS; Resolution: Available;	-	2	Enquire
