23 - Brakes - Systems - 23.2 - Brake Boost System

McLaren McLaren 570GT

Find Your Part

McLaren McLaren 570GT - 23 - BRAKES - SYSTEMS - 23.2 - BRAKE BOOST SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11E0022CP Heatshield - Wheel Speed Sensor $41.49 To Order
Photo Part No Description Price (each) Stock
13C0198CP ASSY-RESERVOIR-BRAKE FLUID $234.58 To Order
Photo Part No Description Price (each) Stock
13C0196CP BRACKET - BRAKE FLUID RESERVOIR - LHD Enquire To Order
13C0197CP BRACKET - BRAKE FLUID RESERVOIR - RHD $22.08 To Order
Photo Part No Description Price (each) Stock
00RA313 Screw - M6x16 - Hex - Silver Enquire To Order
Photo Part No Description Price (each) Stock
00RA373 SCREW - HEX HEAD - LOCK - M6X25-8.8 Enquire To Order
Photo Part No Description Price (each) Stock
13C0271CP Brake Booster - CCM $1,047.97 To Order
13C0315CP Brake Booster - Iron $967.36 To Order
Photo Part No Description Price (each) Stock
11C0154CP Bracket - Brake Booster Mounting $309.02 To Order
Photo Part No Description Price (each) Stock
00RA056 NUT - M8-8 - LOCK HEX Enquire To Order
Photo Part No Description Price (each) Stock
13C0205CP ABS MODULATOR - PRE-FILLED $1,612.27 To Order
Photo Part No Description Price (each) Stock
13C0182CP Bracket - ABS Modulator $55.27 To Order
Photo Part No Description Price (each) Stock
11F0225CP Bolt - M10x18 - Cap $70.59 To Order
Photo Part No Description Price (each) Stock
11C0045CP MOUNT - ANTI-VIBRATION - RUBBER $34.97 To Order
Photo Part No Description Price (each) Stock
11M0430CP SENSOR - WHEEL SPEED - FRONT $171.31 To Order
Photo Part No Description Price (each) Stock
00RX003 BOLT - M6X1X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11M0432CP Sensor - Wheel Speed - Rear $171.31 To Order
Photo Part No Description Price (each) Stock
00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK Enquire To Order
Photo Part No Description Price (each) Stock
13M0801CP VACUUM SENSOR WITH CHECK VALVE $68.65 To Order
View All

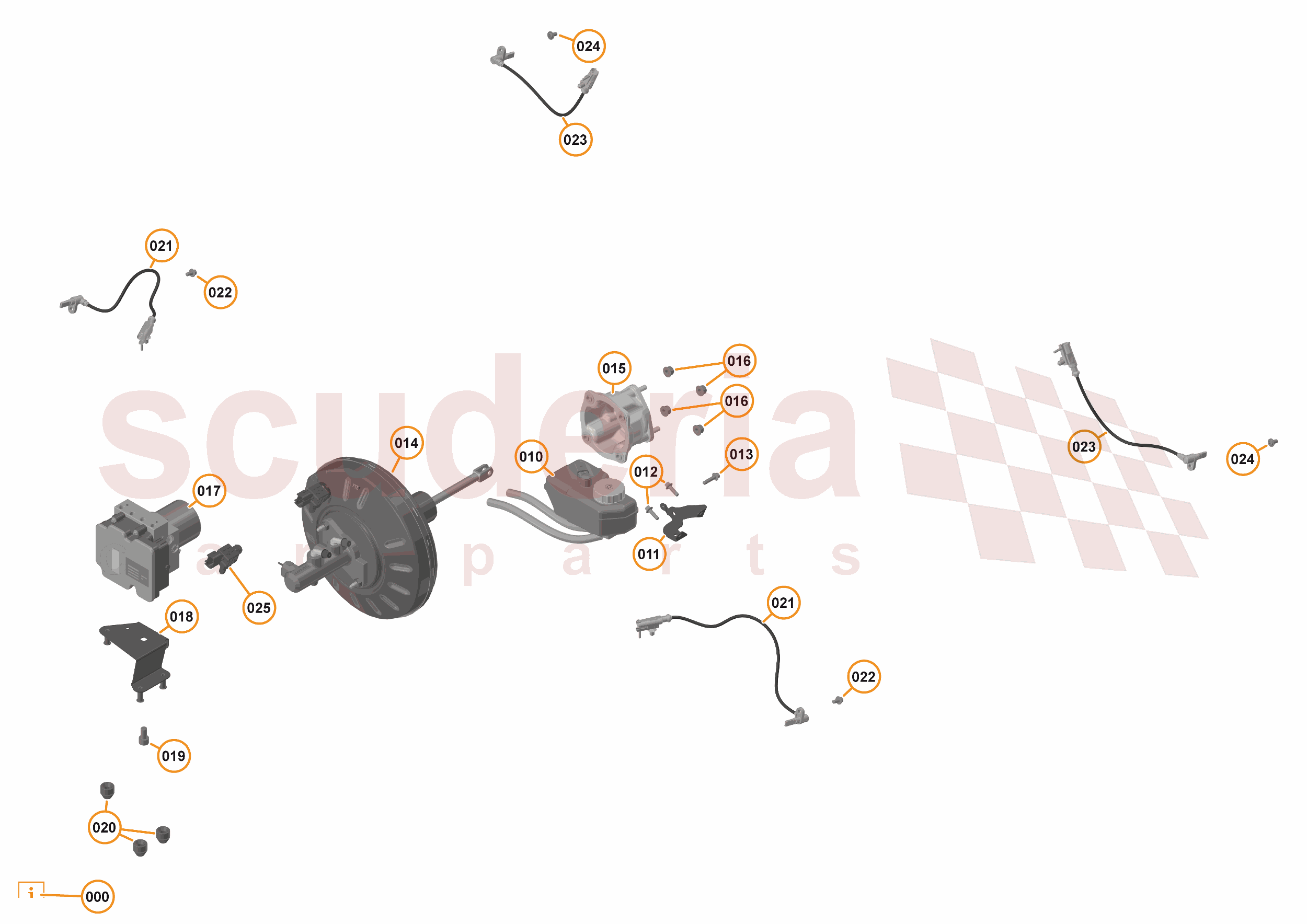

23 - BRAKES - SYSTEMS - 23.2 - BRAKE BOOST SYSTEM of McLaren McLaren McLaren 570GT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11E0022CP
Heatshield - Wheel Speed Sensor
Row ID: ID_CDCC0201_11E0022CP_ContPgHS; Resolution: Available; 		$41.49 4
010 13C0198CP
ASSY-RESERVOIR-BRAKE FLUID
Row ID: ID_CDCC0202_13C0198CP_ContPgHS; Resolution: Available; 		$234.58 1
011 13C0196CP
BRACKET - BRAKE FLUID RESERVOIR - LHD
Row ID: ID_CDCC0203_13C0196CP_ContPgHS; Resolution: Available; 		- 1 Enquire
011 13C0197CP
BRACKET - BRAKE FLUID RESERVOIR - RHD
Row ID: ID_CDCC0204_13C0197CP_ContPgHS; Resolution: Available; 		$22.08 1
012 00RA313
Screw - M6x16 - Hex - Silver
Row ID: ID_CDCC0205_00RA313_ContPgHS; Resolution: Available; 		- 2 Enquire
013 00RA373
SCREW - HEX HEAD - LOCK - M6X25-8.8
Row ID: ID_CDCC0206_00RA373_ContPgHS; Resolution: Available; 		- 1 Enquire
014 13C0271CP
Brake Booster - CCM
Row ID: ID_CDCC0207_13C0271CP_ContPgHS; Resolution: Available; 		$1,047.97 1
014 13C0315CP
Brake Booster - Iron
Row ID: ID_CDCC0208_13C0315CP_ContPgHS; Resolution: Available; 		$967.36 1
015 11C0154CP
Bracket - Brake Booster Mounting
Row ID: ID_CDCC0209_11C0154CP_ContPgHS; Resolution: Available; 		$309.02 1
016 00RA056
NUT - M8-8 - LOCK HEX
Row ID: ID_CDCC0210_00RA056_ContPgHS; Resolution: Available; 		- 4 Enquire
017 13C0205CP
ABS MODULATOR - PRE-FILLED
Row ID: ID_CDCC0211_13C0205CP_ContPgHS; Resolution: Available; 		$1,612.27 1
018 13C0182CP
Bracket - ABS Modulator
Row ID: ID_CDCC0212_13C0182CP_ContPgHS; Resolution: Available; 		$55.27 1
019 11F0225CP
Bolt - M10x18 - Cap
Row ID: ID_CDCC0213_11F0225CP_ContPgHS; Resolution: Available; 		$70.59 1
020 11C0045CP
MOUNT - ANTI-VIBRATION - RUBBER
Row ID: ID_CDCC0214_11C0045CP_ContPgHS; Resolution: Available; 		$34.97 3
021 11M0430CP
SENSOR - WHEEL SPEED - FRONT
Row ID: ID_CDCC0215_11M0430CP_ContPgHS; Resolution: Available; 		$171.31 2
022 00RX003
BOLT - M6X1X12 - HEX
Row ID: ID_CDCC0216_00RX003_ContPgHS; Resolution: Available; 		- 2 Enquire
023 11M0432CP
Sensor - Wheel Speed - Rear
Row ID: ID_CDCC0217_11M0432CP_ContPgHS; Resolution: Available; 		$171.31 2
024 00RA468
SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK
Row ID: ID_CDCC0218_00RA468_ContPgHS; Resolution: Available; 		- 2 Enquire
025 13M0801CP
VACUUM SENSOR WITH CHECK VALVE
Row ID: ID_CDCC0219_13M0801CP_ContPgHS; Resolution: Available; 		$68.65 1
