16 - SUSPENSION - FRONT - 16.1 - DAMPER & ACTUATOR ASSEMBLIES FRONT of McLaren McLaren McLaren 570GT

View All

McLaren McLaren 570GT - 16 - SUSPENSION - FRONT - 16.1 - DAMPER & ACTUATOR ASSEMBLIES FRONT

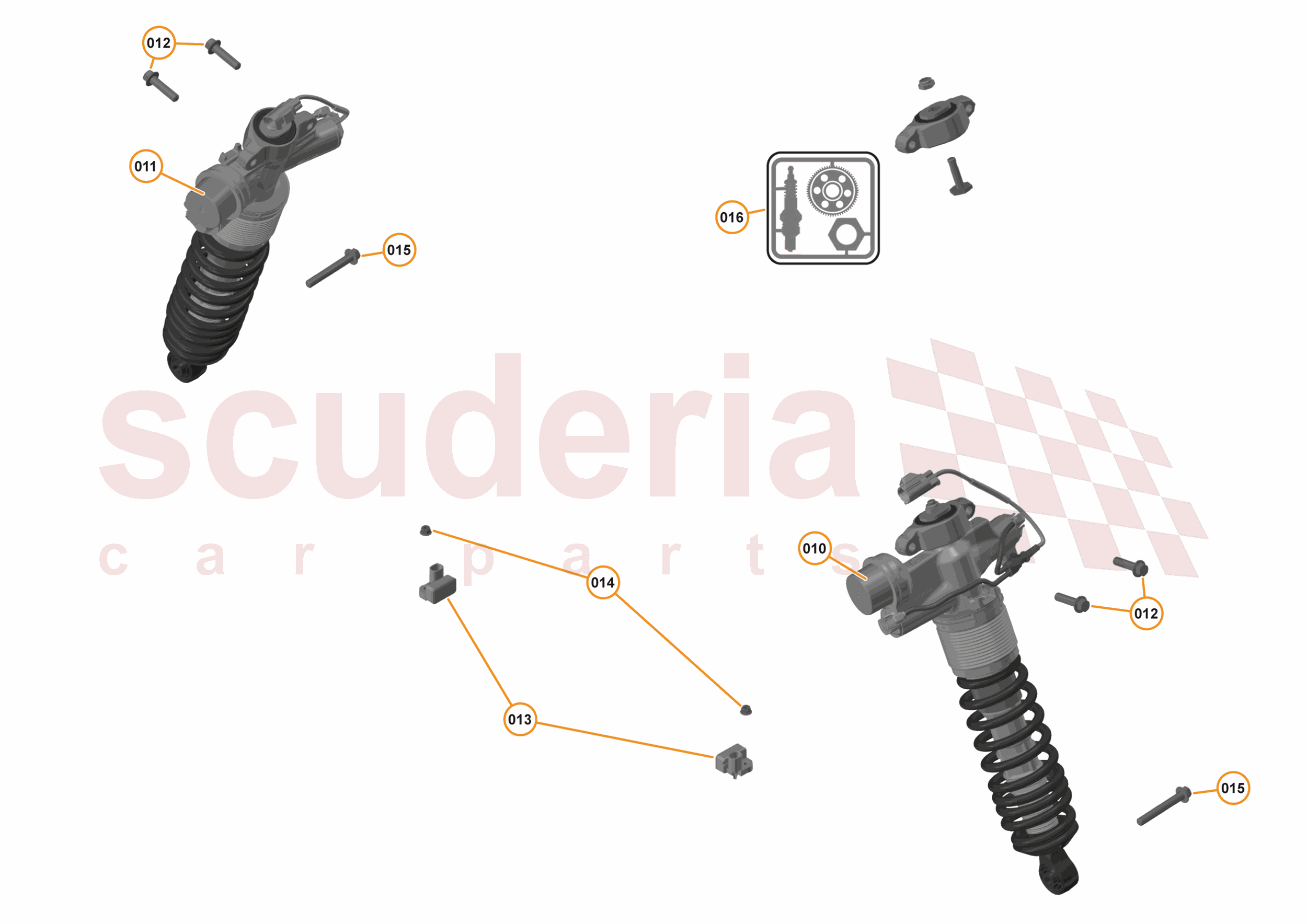

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	13B1083GP	Suspension Unit - Front - LH - GT	Enquire	To Order
	13B1242GP	Suspension Unit - Nose Lift - Front - LH - GT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13BA025GP	Suspension Unit - Front - RH - GT	$2,254.20	To Order
	13B1243GP	Suspension Unit - Nose Lift - Front - RH - GT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA559	BOLT - HEX HEAD - M10X1.5X40	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11M0252CP	Sensor - Accelerometer	$177.65	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA055	NUT - M6 - LOCKING - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11B1314CP	BOLT - M10X70 - DAMPER MOUNTING - LOWER	$8.10	To Order

Photo	Part No	Description	Price (each)	Stock
	11S5457CP	Top Mount - Actuator - Kit	$148.02	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	13B1083GP	Suspension Unit - Front - LH - GT	13B1083GP Suspension Unit - Front - LH - GT Row ID: ID_CDBA0109_13B1083GP_ContPgHS; Resolution: Available;	-	1	Enquire
010	13B1242GP	Suspension Unit - Nose Lift - Front - LH - GT	13B1242GP Suspension Unit - Nose Lift - Front - LH - GT Row ID: ID_CDBA0110_13B1242GP_ContPgHS; Resolution: Available;	-	1	Enquire
011	13BA025GP	Suspension Unit - Front - RH - GT	13BA025GP Suspension Unit - Front - RH - GT Row ID: ID_CDBA0111_13BA025GP_ContPgHS; Resolution: Available;	$2,254.20	1
011	13B1243GP	Suspension Unit - Nose Lift - Front - RH - GT	13B1243GP Suspension Unit - Nose Lift - Front - RH - GT Row ID: ID_CDBA0112_13B1243GP_ContPgHS; Resolution: Available;	-	1	Enquire
012	00RA559	BOLT - HEX HEAD - M10X1.5X40	00RA559 BOLT - HEX HEAD - M10X1.5X40 Row ID: ID_CDBA0105_00RA559_ContPgHS; Resolution: Available;	-	4	Enquire
013	11M0252CP	Sensor - Accelerometer	11M0252CP Sensor - Accelerometer Row ID: ID_CDBA0106_11M0252CP_ContPgHS; Resolution: Available;	$177.65	2
014	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID_CDBA0107_00RA055_ContPgHS; Resolution: Available;	-	2	Enquire
015	11B1314CP	BOLT - M10X70 - DAMPER MOUNTING - LOWER	11B1314CP BOLT - M10X70 - DAMPER MOUNTING - LOWER Row ID: ID_CDBA0108_11B1314CP_ContPgHS; Resolution: Available;	$8.10	2
016	11S5457CP	Top Mount - Actuator - Kit	11S5457CP Top Mount - Actuator - Kit Row ID: ID_CDBA0113_11S5457CP_ContPgHS; Resolution: Available;	$148.02	2
