Front Seats: Mechanics And Electronics

Maserati Levante Modena Automatic 3.0 BT V6 4WD 430HP

Illustration Number: 0941

(Available with: FRONT SPORT SEATS ELECTRICALLY ADJUSTABLE)
Find Your Part

Maserati Levante Modena Automatic 3.0 BT V6 4WD 430HP - FRONT SEATS: MECHANICS AND ELECTRONICS (09413)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670007820 LH SEAT WIRING HARNESS Enquire To Order
670007823 RH SEAT WIRING HARNESS Enquire To Order
670007819 LH SEAT WIRING HARNESS Enquire To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
673000294 PUSH-BUTTON SWITCH Enquire IN STOCK
Photo Part No Description Price (each) Stock
670173853 8-WAY SWITCH Enquire To Order
670186721 8-WAY SWITCH Enquire To Order
670173854 8-WAY SWITCH Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
670173855 LUMBAR SUPPORT ADJUSTMENT JOYSTICK Enquire To Order
Photo Part No Description Price (each) Stock
673000320 FRONT SEAT BACK FAN Enquire To Order
Photo Part No Description Price (each) Stock
673000321 SEAT FAN Enquire To Order
Photo Part No Description Price (each) Stock
670221098 FRONT SEAT SETTING ECU Enquire To Order
670035026 FRONT SEAT SETTING ECU Enquire To Order
Photo Part No Description Price (each) Stock
673000318 LH SUPPORT Enquire To Order
673000319 RH SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
673007413 FRONT SEAT BACK FRAME Enquire To Order
673007414 FRONT SEAT BACK FRAME Enquire To Order
Photo Part No Description Price (each) Stock
673000232 FRONT CUSHION FRAME Enquire To Order
673000231 FRONT CUSHION FRAME Enquire To Order
673000229 FRONT CUSHION FRAME Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
673000233 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
670006705 SEATBACK REAR PANEL LED LIGHT Enquire To Order
Photo Part No Description Price (each) Stock
673000234 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
670006649 TRIM PLATE Enquire To Order
Photo Part No Description Price (each) Stock
673000325 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
670006150 SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
670007533 FRONT BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
673000291 LH SIDE CASING MOUNTING BRACKET Enquire To Order
673000292 RH SIDE CASING MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
670035027 HEATER-FAN ECU Enquire To Order
Photo Part No Description Price (each) Stock
673000299 CONTROL UNIT BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
670006706 AIR VENT Enquire To Order
Photo Part No Description Price (each) Stock
673007373 CPL. FRONT SEAT BACK HEATER Enquire To Order
Photo Part No Description Price (each) Stock
673006942 CPL. FRONT SEAT BACK HEATER Enquire To Order
Photo Part No Description Price (each) Stock
670006155 SBR SENSOR Enquire To Order
Photo Part No Description Price (each) Stock
673006941 CPL. FRONT SEAT CUSHION HEATER Enquire To Order
Photo Part No Description Price (each) Stock
673006939 CPL. FRONT SEAT CUSHION HEATER Enquire To Order
Photo Part No Description Price (each) Stock
673000326 RIVET Enquire To Order
Photo Part No Description Price (each) Stock
673007405 PLASTIC FRONT BACK SHELL Enquire To Order
Photo Part No Description Price (each) Stock
673007406 PLASTIC REAR BACK SHELL Enquire To Order
View All

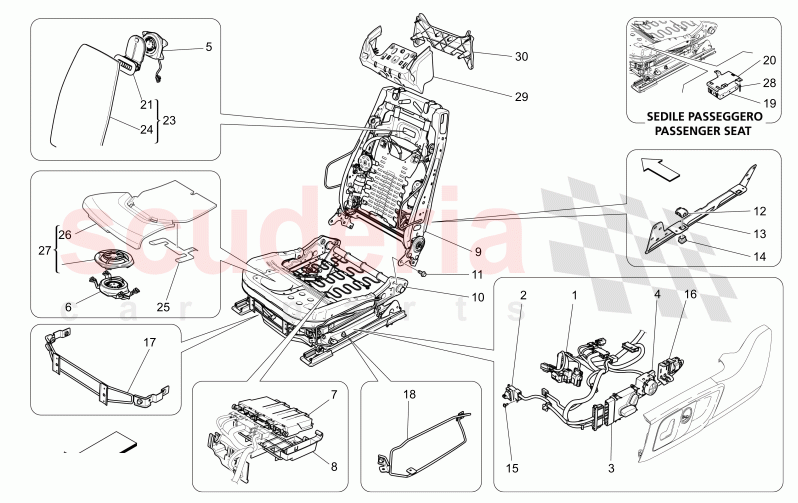

FRONT SEATS: MECHANICS AND ELECTRONICS of Maserati Maserati Levante Modena Automatic 3.0 BT V6 4WD 430HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670007820
LH SEAT WIRING HARNESS
Available with: ELECTRICALLY HEATED ADJUSTABLE FRONT SEATS, FRONT SEAT VENTILATION Not available with: SEAT TRACK POSITION; AU UK JRH IN SA; 		- 1 Enquire
1 670007823
RH SEAT WIRING HARNESS
Available with: ELECTRICALLY HEATED ADJUSTABLE FRONT SEATS, FRONT SEAT VENTILATION Not available with: SEAT TRACK POSITION; AU UK JRH IN SA; 		- 1 Enquire
1 670007819
LH SEAT WIRING HARNESS
Available with: ELECTRICALLY HEATED ADJUSTABLE FRONT SEATS Not available with: SEAT TRACK POSITION, FRONT SEAT VENTILATION; AU UK JRH IN SA; 		- 1 Enquire
1 670007822
RH SEAT WIRING HARNESS
Available with: ELECTRICALLY HEATED ADJUSTABLE FRONT SEATS Not available with: SEAT TRACK POSITION, FRONT SEAT VENTILATION; AU UK JRH IN SA; 		- 1 Enquire
1 670031341
RH SEAT WIRING HARNESS
Not available with: ELECTRICALLY HEATED ADJUSTABLE FRONT SEATS, SEAT TRACK POSITION, FRONT SEAT VENTILATION; EU CN US CD JP ME KO; 		- 1 Enquire
1 670009999
LH SEAT WIRING HARNESS
Available with: ELECTRICALLY HEATED ADJUSTABLE FRONT SEATS, FRONT SEAT VENTILATION Not available with: SEAT TRACK POSITION; EU CN US CD JP ME KO; 		- 1 Enquire
1 670009998
LH SEAT WIRING HARNESS
Available with: ELECTRICALLY HEATED ADJUSTABLE FRONT SEATS Not available with: SEAT TRACK POSITION, FRONT SEAT VENTILATION; EU CN US CD JP ME KO;
IN STOCK 		- 1 Enquire
1 670009998
LH SEAT WIRING HARNESS
Not available with: ELECTRICALLY HEATED ADJUSTABLE FRONT SEATS, SEAT TRACK POSITION, FRONT SEAT VENTILATION; EU CN US CD JP ME KO;
IN STOCK 		- 1 Enquire
1 670031343
RH SEAT WIRING HARNESS
Available with: ELECTRICALLY HEATED ADJUSTABLE FRONT SEATS, FRONT SEAT VENTILATION Not available with: SEAT TRACK POSITION; EU CN US CD JP ME KO; 		- 1 Enquire
1 670031342
RH SEAT WIRING HARNESS
Available with: ELECTRICALLY HEATED ADJUSTABLE FRONT SEATS Not available with: SEAT TRACK POSITION, FRONT SEAT VENTILATION; EU CN US CD JP ME KO; 		- 1 Enquire
2 673000294
PUSH-BUTTON SWITCH
EU CN US CD JP ME KO;
IN STOCK 		- 1 Enquire
3 670173853
8-WAY SWITCH
Driver side; Bespoke Assembly Number 6079467 - 99999999; AU UK JRH IN SA; 		- 1 Enquire
3 670186721
8-WAY SWITCH
Passenger side; Bespoke Assembly Number 6079467 - 99999999; AU UK JRH IN SA; 		- 1 Enquire
3 670173854
8-WAY SWITCH
Driver side; Bespoke Assembly Number 6079467 - 99999999; EU CN US CD JP ME KO; 		- 1 Enquire
3 670186720
8-WAY SWITCH
Passenger side; Bespoke Assembly Number 6079467 - 99999999; EU CN US CD JP ME KO; 		- 1 Enquire
4 670173855
LUMBAR SUPPORT ADJUSTMENT JOYSTICK
Bespoke Assembly Number 6079467 - 99999999; 		- 1 Enquire
5 673000320
FRONT SEAT BACK FAN
Available with: FRONT SEAT VENTILATION ; 		- 1 Enquire
6 673000321
SEAT FAN
Available with: FRONT SEAT VENTILATION ; 		- 2 Enquire
7 670221098
FRONT SEAT SETTING ECU
Bespoke Assembly Number 6112336 - 99999999; 		- 1 Enquire
7 670035026
FRONT SEAT SETTING ECU
Bespoke Assembly Number 0 - 6112335; 		- 1 Enquire
8 673000318
LH SUPPORT 		- 1 Enquire
8 673000319
RH SUPPORT 		- 1 Enquire
9 673007413
FRONT SEAT BACK FRAME
Without memory; 		- 1 Enquire
9 673007414
FRONT SEAT BACK FRAME
With memory; 		- 1 Enquire
10 673000232
FRONT CUSHION FRAME
Driver side; Not available with: ELECTRICALLY ADJUSTABLE FRONT SEATS ON DRIVER'S SIDE, ELECTRICALLY ADJUSTABLE FRONT SEATS; AU UK JRH IN SA; 		- 1 Enquire
10 673000231
FRONT CUSHION FRAME
Passenger side; Not available with: ELECTRICALLY ADJUSTABLE FRONT SEATS ON DRIVER'S SIDE, ELECTRICALLY ADJUSTABLE FRONT SEATS; AU UK JRH IN SA; 		- 1 Enquire
10 673000229
FRONT CUSHION FRAME
Driver side; Not available with: ELECTRICALLY ADJUSTABLE FRONT SEATS ON DRIVER'S SIDE, ELECTRICALLY ADJUSTABLE FRONT SEATS; EU CN US CD JP ME KO; 		- 1 Enquire
10 673000230
FRONT CUSHION FRAME
Passenger side; Not available with: ELECTRICALLY ADJUSTABLE FRONT SEATS ON DRIVER'S SIDE, ELECTRICALLY ADJUSTABLE FRONT SEATS; EU CN US CD JP ME KO; 		- 1 Enquire
11 673000233
SCREW 		- 4 Enquire
12 670006705
SEATBACK REAR PANEL LED LIGHT 		- 1 Enquire
13 673000234
BRACKET 		- 1 Enquire
14 670006649
TRIM PLATE 		- 2 Enquire
15 673000325
SCREW 		- 2 Enquire
16 670006150
SUPPORT 		- 1 Enquire
17 670007533
FRONT BRACKET 		- 1 Enquire
18 673000291
LH SIDE CASING MOUNTING BRACKET 		- 1 Enquire
18 673000292
RH SIDE CASING MOUNTING BRACKET 		- 1 Enquire
19 670035027
HEATER-FAN ECU 		- 1 Enquire
20 673000299
CONTROL UNIT BRACKET 		- 1 Enquire
21 670006706
AIR VENT
Available with: FRONT SEAT VENTILATION ; 		- 1 Enquire
23 673007373
CPL. FRONT SEAT BACK HEATER
Available with: FRONT SEAT VENTILATION ; 		- 1 Enquire
24 673006942
CPL. FRONT SEAT BACK HEATER
Not available with: FRONT SEAT VENTILATION; 		- 1 Enquire
25 670006155
SBR SENSOR
Passenger side; 		- 1 Enquire
26 673006941
CPL. FRONT SEAT CUSHION HEATER
Not available with: FRONT SEAT VENTILATION; 		- 1 Enquire
27 673006939
CPL. FRONT SEAT CUSHION HEATER
Available with: FRONT SEAT VENTILATION ; 		- 1 Enquire
28 673000326
RIVET 		- 3 Enquire
29 673007405
PLASTIC FRONT BACK SHELL 		- 1 Enquire
30 673007406
PLASTIC REAR BACK SHELL 		- 1 Enquire
