SOUND-PROOFING PANELS INSIDE THE VEHICLE of Maserati Maserati Levante Modena Automatic 3.0 BT V6 4WD 430HP

View All

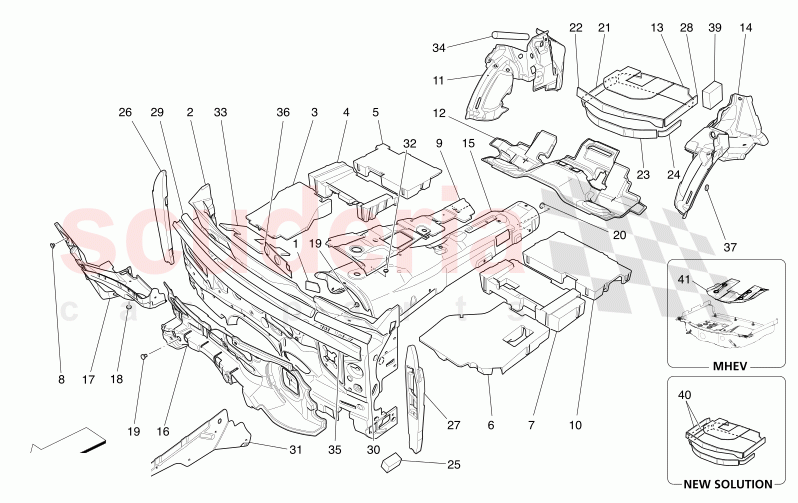

Maserati Levante Modena Automatic 3.0 BT V6 4WD 430HP - SOUND-PROOFING PANELS INSIDE THE VEHICLE (09621)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	675000151	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670033843	DASHBOARD FRONT SOUNDPROOFING PANEL	Enquire	To Order
	670104969	DASHBOARD FRONT SOUNDPROOFING PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670103999	RH FRONT SUPPORTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670038499	RH CENTRAL SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670038501	RH REAR SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670038496	LH FRONT SUPPORTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670038498	LH CENTRAL SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4LA121313	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670032150	TUNNEL INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670174722	LH REAR SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670032146	RH REAR SOUND-PROOF MATERIAL WHEELHOUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670174721	REAR SEAT CUSHION SOUDPROOFING PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670107542	LUGGAGE COMPARTMENT BACK SOUNDPROOF GUARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670174726	LH REAR SOUND-PROOF MATERIAL WHEELHOUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670214735	TUNNEL EXTERNAL SOUNDPROOFING GUARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670004557	ENGINE COMPARTMENT INSULATION	Enquire	To Order
	670004556	ENGINE COMPARTMENT INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670100464	UPPER RH ENGINE COMPARTMENT INSULATION	Enquire	To Order
	670174728	UPPER RH ENGINE COMPARTMENT INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000453	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4LA121397A	COOLANT PIPE MISTO 4 BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000411	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670107541	SPARE WHEEL HOUSING FRONT SOUNDPROOF GUARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670107543	SPARE WHEEL HOUSING LOWER FRONT SOUNDPROOF GUARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670107544	LH REAR LONGITUDINAL MEMBER SOUNDPROOF GUARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670033522	RH INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670033524	LH INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670100307	FELT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670100306	FELT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000679	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670161860	RH FRONT INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670039095	RH REAR SOUND-PROOF MATERIAL WHEELHOUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670039987	LOWER WINDSCREEN SOUNDPROOFING UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670001855	FIRE SHIELD SILENCER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000424	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670107545	REAR LONGITUDINAL MEMBER SOUNDPROOF GUARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670156325	SOUNDPROOFING ELEMENT FOR SPARE WHEEL CASING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	675000151	PLUG	675000151 PLUG	-	1	Enquire
2	670033843	DASHBOARD FRONT SOUNDPROOFING PANEL	670033843 DASHBOARD FRONT SOUNDPROOFING PANEL AU UK JRH IN SA;	-	1	Enquire
2	670104969	DASHBOARD FRONT SOUNDPROOFING PANEL	670104969 DASHBOARD FRONT SOUNDPROOFING PANEL Bespoke Assembly Number 6037054 - 99999999; EU CN US CD JP ME KO;	-	1	Enquire
3	670103999	RH FRONT SUPPORTING BRACKET	670103999 RH FRONT SUPPORTING BRACKET Bespoke Assembly Number 6045223 - 99999999;	-	1	Enquire
4	670038499	RH CENTRAL SUPPORT	670038499 RH CENTRAL SUPPORT	-	1	Enquire
5	670038501	RH REAR SUPPORT	670038501 RH REAR SUPPORT	-	1	Enquire
6	670038496	LH FRONT SUPPORTING BRACKET	670038496 LH FRONT SUPPORTING BRACKET	-	1	Enquire
7	670038498	LH CENTRAL SUPPORT	670038498 LH CENTRAL SUPPORT	-	1	Enquire
8	4LA121313	BRACKET	4LA121313 BRACKET	-	3	Enquire
9	670032150	TUNNEL INSULATION	670032150 TUNNEL INSULATION	-	1	Enquire
10	670174722	LH REAR SUPPORT	670174722 LH REAR SUPPORT Bespoke Assembly Number 6087379 - 99999999;	-	1	Enquire
11	670032146	RH REAR SOUND-PROOF MATERIAL WHEELHOUSE	670032146 RH REAR SOUND-PROOF MATERIAL WHEELHOUSE	-	1	Enquire
12	670174721	REAR SEAT CUSHION SOUDPROOFING PANEL	670174721 REAR SEAT CUSHION SOUDPROOFING PANEL Bespoke Assembly Number 6086160 - 99999999;	-	1	Enquire
13	670107542	LUGGAGE COMPARTMENT BACK SOUNDPROOF GUARD	670107542 LUGGAGE COMPARTMENT BACK SOUNDPROOF GUARD	-	1	Enquire
14	670174726	LH REAR SOUND-PROOF MATERIAL WHEELHOUSE	670174726 LH REAR SOUND-PROOF MATERIAL WHEELHOUSE Bespoke Assembly Number 6081974 - 99999999;	-	1	Enquire
15	670214735	TUNNEL EXTERNAL SOUNDPROOFING GUARD	670214735 TUNNEL EXTERNAL SOUNDPROOFING GUARD Bespoke Assembly Number 6053787 - 99999999;	-	1	Enquire
16	670004557	ENGINE COMPARTMENT INSULATION	670004557 ENGINE COMPARTMENT INSULATION AU UK JRH IN SA;	-	1	Enquire
16	670004556	ENGINE COMPARTMENT INSULATION	670004556 ENGINE COMPARTMENT INSULATION EU CN US CD JP ME KO;	-	1	Enquire
17	670100464	UPPER RH ENGINE COMPARTMENT INSULATION	670100464 UPPER RH ENGINE COMPARTMENT INSULATION AU UK JRH IN SA;	-	1	Enquire
17	670174728	UPPER RH ENGINE COMPARTMENT INSULATION	670174728 UPPER RH ENGINE COMPARTMENT INSULATION Bespoke Assembly Number 6083656 - 99999999; EU CN US CD JP ME KO;	-	1	Enquire
18	675000453	PLATE	675000453 PLATE	-	1	Enquire
19	4LA121397A	COOLANT PIPE MISTO 4 BAR	4LA121397A COOLANT PIPE MISTO 4 BAR	-	2	Enquire
20	675000411	WASHER	675000411 WASHER	-	13	Enquire
22	670107541	SPARE WHEEL HOUSING FRONT SOUNDPROOF GUARD	670107541 SPARE WHEEL HOUSING FRONT SOUNDPROOF GUARD	-	1	Enquire
23	670107543	SPARE WHEEL HOUSING LOWER FRONT SOUNDPROOF GUARD	670107543 SPARE WHEEL HOUSING LOWER FRONT SOUNDPROOF GUARD Bespoke Assembly Number 6057178 - 99999999;	-	1	Enquire
24	670107544	LH REAR LONGITUDINAL MEMBER SOUNDPROOF GUARD	670107544 LH REAR LONGITUDINAL MEMBER SOUNDPROOF GUARD	-	1	Enquire
26	670033522	RH INSULATION	670033522 RH INSULATION	-	1	Enquire
27	670033524	LH INSULATION	670033524 LH INSULATION	-	1	Enquire
29	670100307	FELT	670100307 FELT RH side; Bespoke Assembly Number 0 - 6111543;	-	1	Enquire
30	670100306	FELT	670100306 FELT LH side; Bespoke Assembly Number 0 - 6111543;	-	1	Enquire
32	675000679	PLUG	675000679 PLUG	-	1	Enquire
33	670161860	RH FRONT INSULATION	670161860 RH FRONT INSULATION	-	1	Enquire
34	670039095	RH REAR SOUND-PROOF MATERIAL WHEELHOUSE	670039095 RH REAR SOUND-PROOF MATERIAL WHEELHOUSE Bespoke Assembly Number 0 - 6111543;	-	4	Enquire
35	670039987	LOWER WINDSCREEN SOUNDPROOFING UNIT	670039987 LOWER WINDSCREEN SOUNDPROOFING UNIT	-	1	Enquire
36	670001855	FIRE SHIELD SILENCER	670001855 FIRE SHIELD SILENCER	-	1	Enquire
37	675000424	PLUG	675000424 PLUG	-	2	Enquire
40	670107545	REAR LONGITUDINAL MEMBER SOUNDPROOF GUARD	670107545 REAR LONGITUDINAL MEMBER SOUNDPROOF GUARD Bespoke Assembly Number 6057178 - 99999999;	-	3	Enquire
41	670156325	SOUNDPROOFING ELEMENT FOR SPARE WHEEL CASING	670156325 SOUNDPROOFING ELEMENT FOR SPARE WHEEL CASING	-	1	Enquire
