SUNROOF of Maserati Maserati Levante Modena Automatic 3.0 BT V6 4WD 430HP

View All

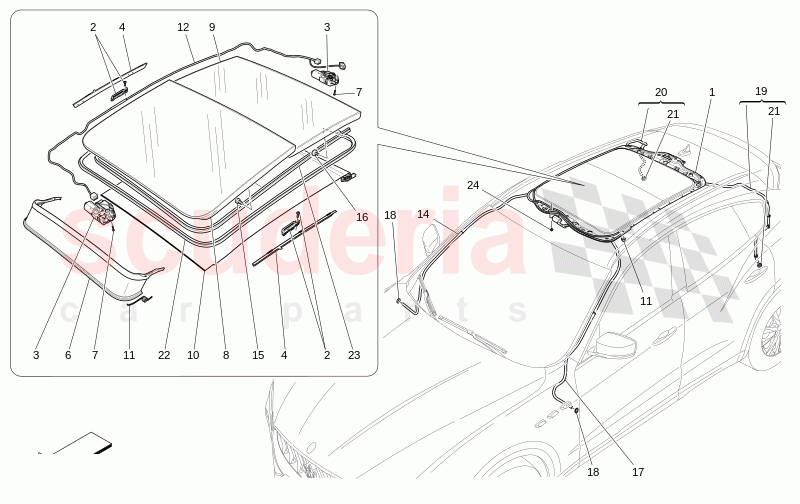

Maserati Levante Modena Automatic 3.0 BT V6 4WD 430HP - SUNROOF (09711)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670151847	CPL FRONT DOME-LIGHT GRIGIO(	Enquire	To Order
	673011594	GASKET	Enquire	To Order
	673011607	SCREW	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	673004642	RH-LH DEFLECTOR FIXING PLATE KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673004629	GEAR MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673004637	RH-LH MECHANISM GUARDS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673004636	DEFLECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673004640	GEARMOTOR FIXING SCREW KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673015395	FRONT SUNROOF GLASS	Enquire	To Order
	673004631	FRONT SUNROOF GLASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673015396	REAR SUNROOF GLASS	Enquire	To Order
	673004632	REAR SUNROOF GLASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673004633	SUNROOF SUNSHADE	Enquire	To Order
	673004634	SUNROOF SUNSHADE	Enquire	To Order
	673004635	SUNROOF SUNSHADE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673004641	DEFLECTOR FIXING SPRING KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673004630	WIRING HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670034608	RH FRONT WATER DRAIN PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673004638	FRONT GLASS FIXING SCREW KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673004639	REAR GLASS FIXING SCREW KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670034609	LH FRONT WATER DRAIN PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670031349	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670034610	LH REAR WATER DRAIN PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670034611	RH REAR WATER DRAIN PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670005386	RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670218806	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673004628	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670036167	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670151847	CPL FRONT DOME-LIGHT GRIGIO(	670151847 CPL FRONT DOME-LIGHT GRIGIO( WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6084154 - 6096037; Available with: LARGE SUNROOF WITH ELECTRICAL DRIVE, ZEGNA EDITION INTERIORS ;	-	1	Enquire
1	673011594	GASKET	673011594 GASKET WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6095843 - 6112509; Available with: LARGE SUNROOF WITH ELECTRICAL DRIVE Not available with: ZEGNA EDITION INTERIORS;	-	1	Enquire
1	673011607	SCREW	673011607 SCREW WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6084154 - 6113063; Available with: LARGE SUNROOF WITH ELECTRICAL DRIVE, ZEGNA EDITION INTERIORS ;	-	1	Enquire
1	673011601	BUSHING	673011601 BUSHING WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6095843 - 99999999; Available with: LARGE SUNROOF WITH ELECTRICAL DRIVE Not available with: ZEGNA EDITION INTERIORS;	-	1	Enquire
1	775279	MULTI-WAY PIPE COMPLETE WITH HOSES AND F	775279 MULTI-WAY PIPE COMPLETE WITH HOSES AND F WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6082508 - 6095842; Available with: LARGE SUNROOF WITH ELECTRICAL DRIVE Not available with: ZEGNA EDITION INTERIORS;	-	1	Enquire
2	673004642	RH-LH DEFLECTOR FIXING PLATE KIT	673004642 RH-LH DEFLECTOR FIXING PLATE KIT	-	1	Enquire
3	673004629	GEAR MOTOR	673004629 GEAR MOTOR	-	2	Enquire
4	673004637	RH-LH MECHANISM GUARDS	673004637 RH-LH MECHANISM GUARDS	-	1	Enquire
6	673004636	DEFLECTOR	673004636 DEFLECTOR	-	1	Enquire
7	673004640	GEARMOTOR FIXING SCREW KIT	673004640 GEARMOTOR FIXING SCREW KIT	-	1	Enquire
8	673015395	FRONT SUNROOF GLASS	673015395 FRONT SUNROOF GLASS Bespoke Assembly Number 6112510 - 99999999;	-	1	Enquire
8	673004631	FRONT SUNROOF GLASS	673004631 FRONT SUNROOF GLASS Bespoke Assembly Number 0 - 6112509;	-	1	Enquire
9	673015396	REAR SUNROOF GLASS	673015396 REAR SUNROOF GLASS Bespoke Assembly Number 6112510 - 99999999;	-	1	Enquire
9	673004632	REAR SUNROOF GLASS	673004632 REAR SUNROOF GLASS Bespoke Assembly Number 0 - 6112509;	-	1	Enquire
10	673004633	SUNROOF SUNSHADE	673004633 SUNROOF SUNSHADE BLACK;	-	1	Enquire
10	673004634	SUNROOF SUNSHADE	673004634 SUNROOF SUNSHADE BEIGE;	-	1	Enquire
10	673004635	SUNROOF SUNSHADE	673004635 SUNROOF SUNSHADE LIGHT GREY;	-	1	Enquire
11	673004641	DEFLECTOR FIXING SPRING KIT	673004641 DEFLECTOR FIXING SPRING KIT	-	1	Enquire
12	673004630	WIRING HARNESS	673004630 WIRING HARNESS	-	1	Enquire
14	670034608	RH FRONT WATER DRAIN PIPE	670034608 RH FRONT WATER DRAIN PIPE Available with: LARGE SUNROOF WITH ELECTRICAL DRIVE ;	-	1	Enquire
15	673004638	FRONT GLASS FIXING SCREW KIT	673004638 FRONT GLASS FIXING SCREW KIT	-	1	Enquire
16	673004639	REAR GLASS FIXING SCREW KIT	673004639 REAR GLASS FIXING SCREW KIT	-	1	Enquire
17	670034609	LH FRONT WATER DRAIN PIPE	670034609 LH FRONT WATER DRAIN PIPE Available with: LARGE SUNROOF WITH ELECTRICAL DRIVE ;	-	1	Enquire
18	670031349	PLUG	670031349 PLUG	-	2	Enquire
19	670034610	LH REAR WATER DRAIN PIPE	670034610 LH REAR WATER DRAIN PIPE Available with: LARGE SUNROOF WITH ELECTRICAL DRIVE ;	-	1	Enquire
20	670034611	RH REAR WATER DRAIN PIPE	670034611 RH REAR WATER DRAIN PIPE Available with: LARGE SUNROOF WITH ELECTRICAL DRIVE ;	-	1	Enquire
21	670005386	RUBBER	670005386 RUBBER	-	2	Enquire
22	670218806	GASKET	670218806 GASKET Available with: LARGE SUNROOF WITH ELECTRICAL DRIVE ;	-	1	Enquire
23	673004628	GASKET	673004628 GASKET	-	1	Enquire
24	670036167	SCREW	670036167 SCREW Available with: LARGE SUNROOF WITH ELECTRICAL DRIVE ;	-	16	Enquire
