PASSENGER COMPARTMENT MATS of Maserati Maserati Levante Modena Automatic 3.0 BT V6 4WD 430HP

View All

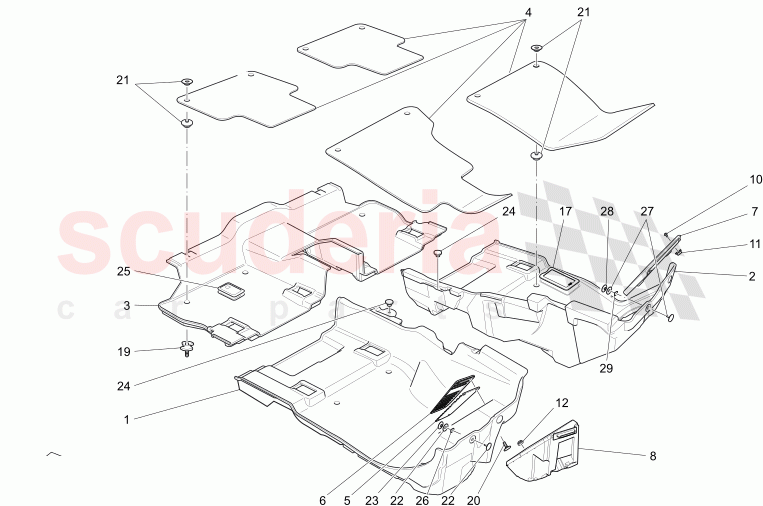

Maserati Levante Modena Automatic 3.0 BT V6 4WD 430HP - PASSENGER COMPARTMENT MATS (09602)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	993427	RH B-PILLAR	Enquire	To Order
	95998332	MAGAZINE FERRARI NR.66	Enquire	To Order
	914240	LH COSMETIC SHIELD	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	779156	CAVO BODYFULL AUDIO HIGH END MCM REM	Enquire	To Order
	73453406	AIR-BAG DRIVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	996688	GRIGLIA TWEETER SX CPL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4LA121456	BREATHER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673000078	PLASTIC FOOTREST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673000079	METAL FOOTREST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4LA121534A	BREATHER PIPE RH RADIATOR ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670106011	DRIVER SIDE FOOTREST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001959	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000408	BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000324	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4LA121454	ENGINE BREATHER HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4LA121453B	BREATHER HOSE BREATHER HOSE CENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673008009	FOOT-REST KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4LA121388	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673002366	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4LA121313	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673007277	REAR CARPET COMPARTMENT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670036884	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673002366	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670036884	GASKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	993427	RH B-PILLAR	993427 RH B-PILLAR WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6066324 - 99999999; Available with: FOUR-ZONE AUTOMATIC CLIMA, INOX SPORT FOOT PEDALS WITH HIGH GRIP RUBBER INSERTS Not available with: DUAL-ZONE AUTOMATIC CLIMA; AU UK JRH IN SA;	-	1	Enquire
1	95998332	MAGAZINE FERRARI NR.66	95998332 MAGAZINE FERRARI NR.66 WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6067720 - 99999999; Available with: FOUR-ZONE AUTOMATIC CLIMA Not available with: DUAL-ZONE AUTOMATIC CLIMA, INOX SPORT FOOT PEDALS WITH HIGH GRIP RUBBER INSERTS; AU UK JRH IN SA;	-	1	Enquire
1	914240	LH COSMETIC SHIELD	914240 LH COSMETIC SHIELD WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6065461 - 99999999; Available with: DUAL-ZONE AUTOMATIC CLIMA, INOX SPORT FOOT PEDALS WITH HIGH GRIP RUBBER INSERTS Not available with: FOUR-ZONE AUTOMATIC CLIMA; AU UK JRH IN SA;	-	1	Enquire
1	673016997	RH SADDLE PAD	673016997 RH SADDLE PAD WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6065433 - 99999999; Available with: DUAL-ZONE AUTOMATIC CLIMA Not available with: FOUR-ZONE AUTOMATIC CLIMA, INOX SPORT FOOT PEDALS WITH HIGH GRIP RUBBER INSERTS; AU UK JRH IN SA;	-	1	Enquire
2	779156	CAVO BODYFULL AUDIO HIGH END MCM REM	779156 CAVO BODYFULL AUDIO HIGH END MCM REM WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6066324 - 99999999; Available with: FOUR-ZONE AUTOMATIC CLIMA Not available with: DUAL-ZONE AUTOMATIC CLIMA; AU UK JRH IN SA;	-	1	Enquire
2	73453406	AIR-BAG DRIVER	73453406 AIR-BAG DRIVER Bespoke Assembly Number 6065461 - 99999999; Available with: DUAL-ZONE AUTOMATIC CLIMA Not available with: FOUR-ZONE AUTOMATIC CLIMA; AU UK JRH IN SA;	-	1	Enquire
3	996688	GRIGLIA TWEETER SX CPL	996688 GRIGLIA TWEETER SX CPL Bespoke Assembly Number 6106769 - 99999999;	-	1	Enquire
4	4LA121456	BREATHER PIPE	4LA121456 BREATHER PIPE Bespoke Assembly Number 6053787 - 99999999; Available with: INTERIOR FLOOR CARPETS IN VELOUR ;	-	1	Enquire
5	673000078	PLASTIC FOOTREST	673000078 PLASTIC FOOTREST	-	1	Enquire
6	673000079	METAL FOOTREST	673000079 METAL FOOTREST AU UK JRH IN SA;	-	1	Enquire
7	4LA121534A	BREATHER PIPE RH RADIATOR ASSY	4LA121534A BREATHER PIPE RH RADIATOR ASSY Bespoke Assembly Number 6066041 - 99999999;	-	1	Enquire
8	670106011	DRIVER SIDE FOOTREST	670106011 DRIVER SIDE FOOTREST AU UK JRH IN SA;	-	1	Enquire
10	675001959	SCREW	675001959 SCREW	-	4	Enquire
11	675000408	BLOCK	675000408 BLOCK	-	4	Enquire
12	675000324	NUT	675000324 NUT	-	1	Enquire
17	4LA121454	ENGINE BREATHER HOSE	4LA121454 ENGINE BREATHER HOSE	-	1	Enquire
19	4LA121453B	BREATHER HOSE BREATHER HOSE CENT	4LA121453B BREATHER HOSE BREATHER HOSE CENT	-	8	Enquire
20	673008009	FOOT-REST KIT	673008009 FOOT-REST KIT	-	1	Enquire
21	4LA121388	BRACKET	4LA121388 BRACKET	-	8	Enquire
22	673002366	SCREW AND WASHER	673002366 SCREW AND WASHER	-	1	Enquire
24	4LA121313	BRACKET	4LA121313 BRACKET	-	2	Enquire
25	673007277	REAR CARPET COMPARTMENT COVER	673007277 REAR CARPET COMPARTMENT COVER	-	1	Enquire
26	670036884	GASKET	670036884 GASKET Bespoke Assembly Number 6028111 - 99999999;	-	3	Enquire
27	673002366	SCREW AND WASHER	673002366 SCREW AND WASHER	-	1	Enquire
29	670036884	GASKET	670036884 GASKET	-	3	Enquire
