Front Door: Mechanism of Maserati Maserati GranTurismo MC Stradale

View All

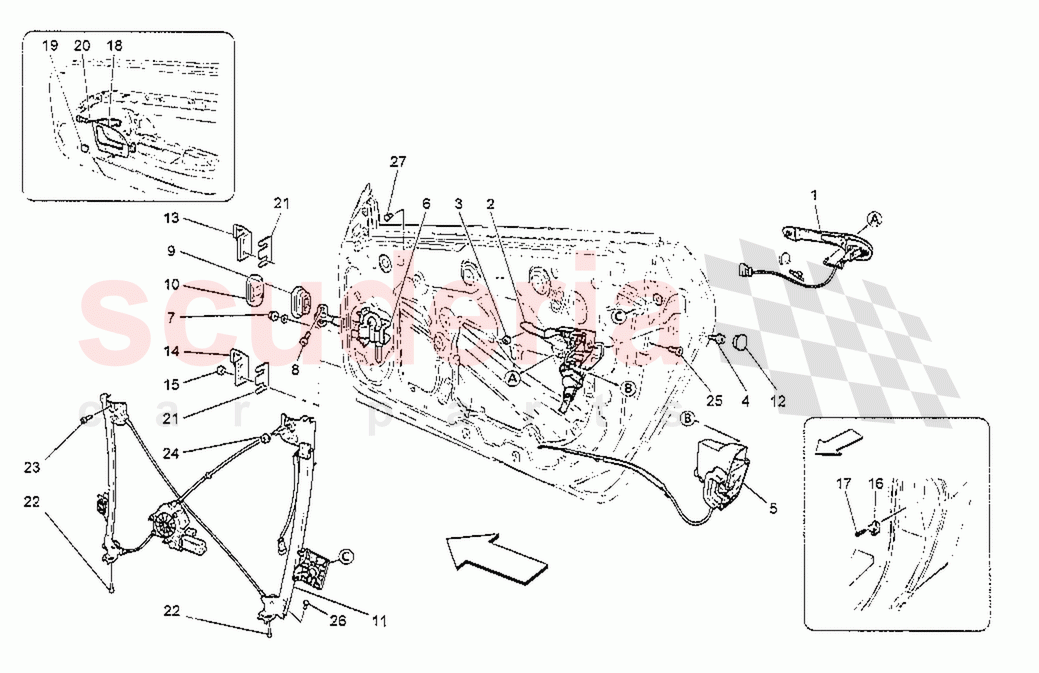

Maserati GranTurismo MC Stradale - Front Door: Mechanism

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	980139630	L.H. DOOR EXTERNAL HANDLE	Enquire	To Order
	82078600	L.H. DOOR EXTERNAL HANDLE	Enquire	To Order
	980139629	R.H. DOOR EXTERNAL HANDLE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	80177400	L.H. OUTER HANDLE SUPPORT	Enquire	To Order
	80177300	R.H. OUTER HANDLE SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13046011	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46401657	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68893400	LH DOOR LOCK	Enquire	To Order
	68893300	RH DOOR LOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80174300	DOOR ARRESTOR ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80853100	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67575800	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67079000	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69914400	LH Power Window Winder	Enquire	To Order
	69912100	RH POWER WINDOW WINDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14506787	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67881000	LH UPPER HINGE	Enquire	To Order
	67880900	RH UPPER HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66812500	LH LOWER HINGE	Enquire	To Order
	66812400	RH LOWER HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15501025	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85321500	Door Lock Striker Plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67999500	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980145006	COMPLETE LH HANDLE FOR DOOR OPENING Black	Enquire	To Order
	981603000	RH HANDLE FOR DOOR OPENING BLACK - NP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66939600	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	234823	MICROSWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67274900	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11570524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14039714	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67077900	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980145406	RUBBER LIMIT STOP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14624587	RUBBER CLOSING PLUG D6,3 X 3	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	980139630	L.H. DOOR EXTERNAL HANDLE	980139630 L.H. DOOR EXTERNAL HANDLE	-	1	Enquire
1	82078600	L.H. DOOR EXTERNAL HANDLE	82078600 L.H. DOOR EXTERNAL HANDLE	-	1	Enquire
1	980139629	R.H. DOOR EXTERNAL HANDLE	980139629 R.H. DOOR EXTERNAL HANDLE	-	1	Enquire
1	82078500	R.H. DOOR EXTERNAL HANDLE	82078500 R.H. DOOR EXTERNAL HANDLE	-	1	Enquire
2	80177400	L.H. OUTER HANDLE SUPPORT	80177400 L.H. OUTER HANDLE SUPPORT	-	1	Enquire
2	80177300	R.H. OUTER HANDLE SUPPORT	80177300 R.H. OUTER HANDLE SUPPORT	-	1	Enquire
3	13046011	NUT	13046011 NUT	-	4	Enquire
4	46401657	SCREW	46401657 SCREW	-	2	Enquire
5	68893400	LH DOOR LOCK	68893400 LH DOOR LOCK	-	1	Enquire
5	68893300	RH DOOR LOCK	68893300 RH DOOR LOCK	-	1	Enquire
6	80174300	DOOR ARRESTOR ROD	80174300 DOOR ARRESTOR ROD	-	2	Enquire
7	14039614	NUT	14039614 NUT	-	4	Enquire
8	80853100	SCREW	80853100 SCREW	-	4	Enquire
9	67575800	GASKET	67575800 GASKET	-	2	Enquire
10	67079000	GASKET	67079000 GASKET	-	2	Enquire
11	69914400	LH Power Window Winder	69914400 LH Power Window Winder	-	1	Enquire
11	69912100	RH POWER WINDOW WINDER	69912100 RH POWER WINDOW WINDER	-	1	Enquire
12	14506787	PLUG	14506787 PLUG	-	2	Enquire
13	67881000	LH UPPER HINGE	67881000 LH UPPER HINGE	-	1	Enquire
13	67880900	RH UPPER HINGE	67880900 RH UPPER HINGE	-	1	Enquire
14	66812500	LH LOWER HINGE	66812500 LH LOWER HINGE	-	1	Enquire
14	66812400	RH LOWER HINGE	66812400 RH LOWER HINGE	-	1	Enquire
15	15501025	NUT	15501025 NUT	-	8	Enquire
16	85321500	Door Lock Striker Plate	85321500 Door Lock Striker Plate	-	2	Enquire
17	67999500	SCREW	67999500 SCREW	-	4	Enquire
18	980145006	COMPLETE LH HANDLE FOR DOOR OPENING Black	980145006 COMPLETE LH HANDLE FOR DOOR OPENING Black	-	1	Enquire
18	981603000	RH HANDLE FOR DOOR OPENING BLACK - NP	981603000 RH HANDLE FOR DOOR OPENING BLACK - NP	-	1	Enquire
19	66939600	PLUG	66939600 PLUG	-	2	Enquire
20	234823	MICROSWITCH	234823 MICROSWITCH	-	2	Enquire
21	67274900	PLATE	67274900 PLATE	-	-	Enquire
22	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	-	4	Enquire
23	11570524	SCREW	11570524 SCREW	-	2	Enquire
24	14039714	NUT	14039714 NUT	-	2	Enquire
25	67077900	SCREW	67077900 SCREW	-	6	Enquire
26	980145406	RUBBER LIMIT STOP	980145406 RUBBER LIMIT STOP	-	2	Enquire
27	14624587	RUBBER CLOSING PLUG D6,3 X 3	14624587 RUBBER CLOSING PLUG D6,3 X 3	-	1	Enquire
