Name: Rear Bumper
Rating: 5.0 (1 reviews)

View All

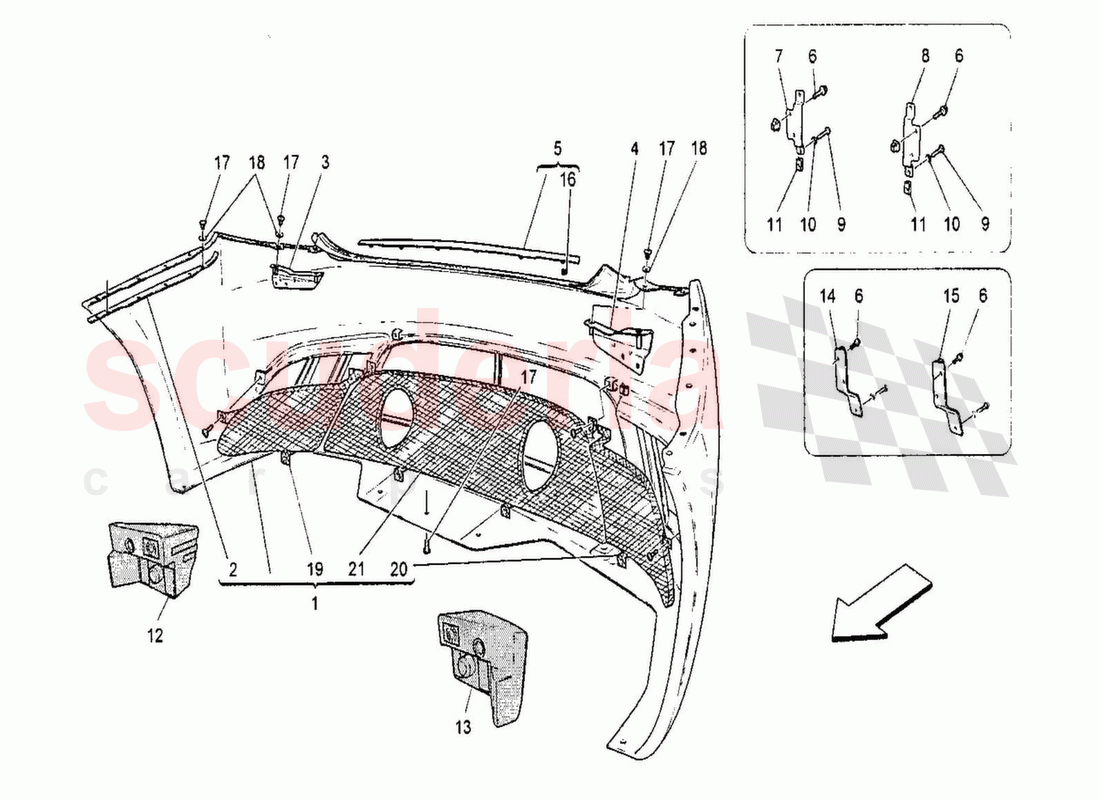

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	980145370	COMPLETE REAR BUMPER	$2,254.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	80084300	RH BRACKET	$250.40	To Order

Photo	Part No	Description	Price (each)	Stock
	80084400	LH BRACKET	$250.40	To Order

Photo	Part No	Description	Price (each)	Stock
	980145031	COMPLETE PLATE	$117.88	To Order

Photo	Part No	Description	Price (each)	Stock
	15688075	SCREW	$2.42	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	82074500	RH Bracket	$77.68	To Order

Photo	Part No	Description	Price (each)	Stock
	82074600	LH Bracket	$33.30	To Order

Photo	Part No	Description	Price (each)	Stock
	80269600	CLIP	$5.96	To Order

Photo	Part No	Description	Price (each)	Stock
	51810310	Screw M6 x 18.5mm	$4.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	312320384	GASKET	$1.27	To Order

Photo	Part No	Description	Price (each)	Stock
	83534000	R.H. REAR GRILL	$203.29	To Order

Photo	Part No	Description	Price (each)	Stock
	83534100	L.H. REAR GRILL	$932.72	To Order

Photo	Part No	Description	Price (each)	Stock
	83534200	REAR CENTRAL GRILL	$587.45	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	980145370	COMPLETE REAR BUMPER IN STOCK	980145370 COMPLETE REAR BUMPER IN STOCK	$2,254.67	1
2	80063900	LH BRACKET IN STOCK	80063900 LH BRACKET IN STOCK	$68.56	1
2	80063800	RH BRACKET	80063800 RH BRACKET	$68.56	1
3	80084300	RH BRACKET	80084300 RH BRACKET	$250.40	1
4	80084400	LH BRACKET	80084400 LH BRACKET	$250.40	1
5	980145031	COMPLETE PLATE	980145031 COMPLETE PLATE	$117.88	1
6	15688075	SCREW IN STOCK	15688075 SCREW IN STOCK	$2.42	4
14	82074500	RH Bracket	82074500 RH Bracket	$77.68	1
15	82074600	LH Bracket	82074600 LH Bracket	$33.30	1
16	80269600	CLIP	80269600 CLIP	$5.96	6
17	51810310	Screw M6 x 18.5mm IN STOCK	51810310 Screw M6 x 18.5mm IN STOCK	$4.43	22
18	312320384	GASKET	312320384 GASKET	$1.27	8
19	83534000	R.H. REAR GRILL	83534000 R.H. REAR GRILL	$203.29	1
20	83534100	L.H. REAR GRILL	83534100 L.H. REAR GRILL	$932.72	1
21	83534200	REAR CENTRAL GRILL	83534200 REAR CENTRAL GRILL	$587.45	1
