External Vechile Devices of Maserati Maserati GranTurismo MC Stradale

View All

Maserati GranTurismo MC Stradale - External Vechile Devices

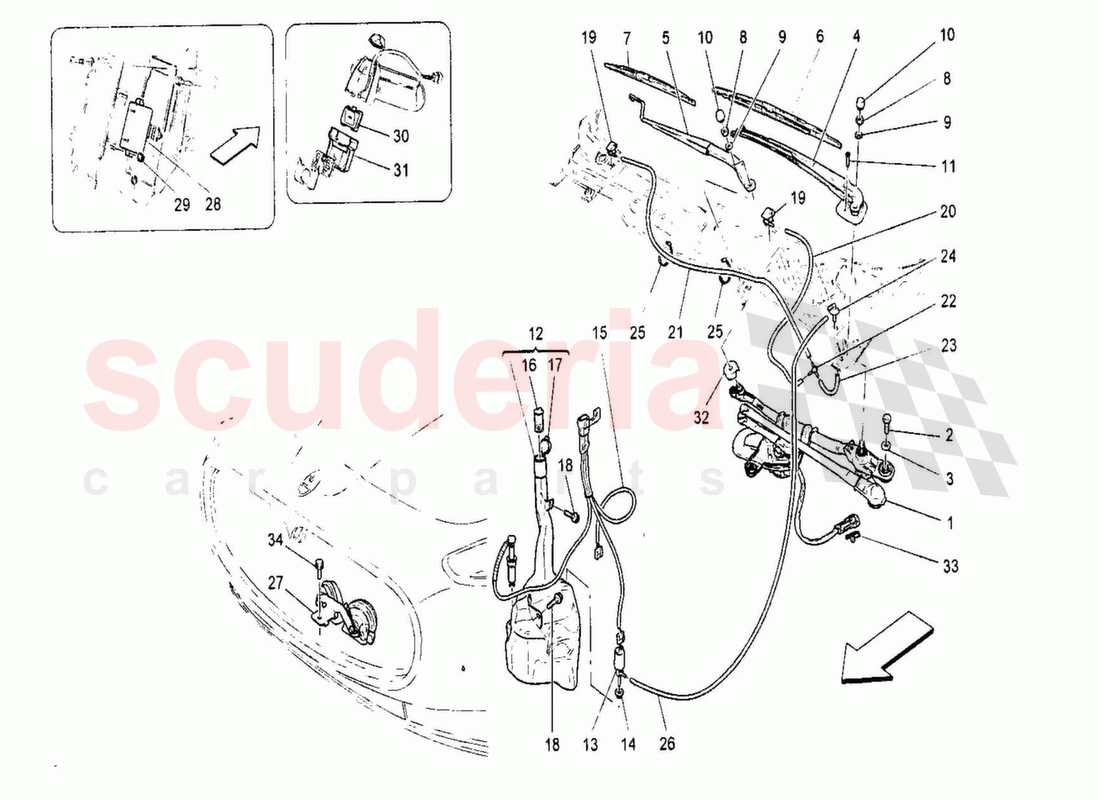

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	80257600	COMPLETE WINDSHIELD WIPER SET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16050626	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648978	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80303400	PASSENGER SIDE WINDSHIELD WIPER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80356000	PILOT SIDE WINDSHIELD WIPER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80303600	PASSENGER SIDE WIPER BRUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87843200	Pilot Side Wiper Bush	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10791014	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601474	Wavy Washer 10mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15811787	Protective Cap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67929800	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980145001	Windscreen Washer Tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65358700	WINDSHIELD WASHER PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65775100	GASKET FOR WASHER PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188214	WATER LEVEL SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66645100	FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80341600	Screen Wash Filler Cap Short	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11617324	Screw M8 x 18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67876200	Windscreen Washer Jet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68647400	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80065600	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65581900	NONRETURN VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80065700	Pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67984700	Union	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67579900	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81454800	Pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	232196	HORNS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	253903	WINDSCREEN WIPER ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60684944	RAIN AND DUST SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67882000	SENSOR HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80583500	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	216847	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11617324	Screw M8 x 18	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	80257600	COMPLETE WINDSHIELD WIPER SET	80257600 COMPLETE WINDSHIELD WIPER SET	-	1	Enquire
2	16050626	SCREW	16050626 SCREW	-	3	Enquire
3	12648978	WASHER	12648978 WASHER	-	3	Enquire
4	80303400	PASSENGER SIDE WINDSHIELD WIPER ARM	80303400 PASSENGER SIDE WINDSHIELD WIPER ARM	-	1	Enquire
5	80356000	PILOT SIDE WINDSHIELD WIPER ARM	80356000 PILOT SIDE WINDSHIELD WIPER ARM	-	1	Enquire
6	80303600	PASSENGER SIDE WIPER BRUSH	80303600 PASSENGER SIDE WIPER BRUSH	-	1	Enquire
7	87843200	Pilot Side Wiper Bush	87843200 Pilot Side Wiper Bush	-	1	Enquire
8	10791014	NUT	10791014 NUT	-	2	Enquire
9	12601474	Wavy Washer 10mm	12601474 Wavy Washer 10mm	-	2	Enquire
10	15811787	Protective Cap	15811787 Protective Cap	-	2	Enquire
11	67929800	SCREW	67929800 SCREW	-	1	Enquire
12	980145001	Windscreen Washer Tank	980145001 Windscreen Washer Tank	-	1	Enquire
13	65358700	WINDSHIELD WASHER PUMP	65358700 WINDSHIELD WASHER PUMP	-	1	Enquire
14	65775100	GASKET FOR WASHER PUMP	65775100 GASKET FOR WASHER PUMP	-	1	Enquire
15	188214	WATER LEVEL SENSOR	188214 WATER LEVEL SENSOR	-	1	Enquire
16	66645100	FILTER	66645100 FILTER	-	1	Enquire
17	80341600	Screen Wash Filler Cap Short	80341600 Screen Wash Filler Cap Short	-	1	Enquire
18	11617324	Screw M8 x 18	11617324 Screw M8 x 18	-	3	Enquire
19	67876200	Windscreen Washer Jet	67876200 Windscreen Washer Jet	-	2	Enquire
20	68647400	PIPE	68647400 PIPE	-	1	Enquire
21	80065600	PIPE	80065600 PIPE	-	1	Enquire
22	65581900	NONRETURN VALVE	65581900 NONRETURN VALVE	-	1	Enquire
23	80065700	Pipe	80065700 Pipe	-	1	Enquire
24	67984700	Union	67984700 Union	-	1	Enquire
25	67579900	CLIP	67579900 CLIP	-	3	Enquire
26	81454800	Pipe	81454800 Pipe	-	1	Enquire
27	232196	HORNS	232196 HORNS	-	1	Enquire
28	253903	WINDSCREEN WIPER ECU	253903 WINDSCREEN WIPER ECU	-	1	Enquire
29	14039614	NUT	14039614 NUT	-	2	Enquire
30	60684944	RAIN AND DUST SENSOR	60684944 RAIN AND DUST SENSOR	-	1	Enquire
31	67882000	SENSOR HOUSING	67882000 SENSOR HOUSING	-	1	Enquire
32	80583500	GASKET	80583500 GASKET	-	1	Enquire
33	216847	CLIP	216847 CLIP	-	1	Enquire
34	11617324	Screw M8 x 18	11617324 Screw M8 x 18	-	1	Enquire
