Name: Headlight Clusters
Rating: 4.5 (1 reviews)

View All

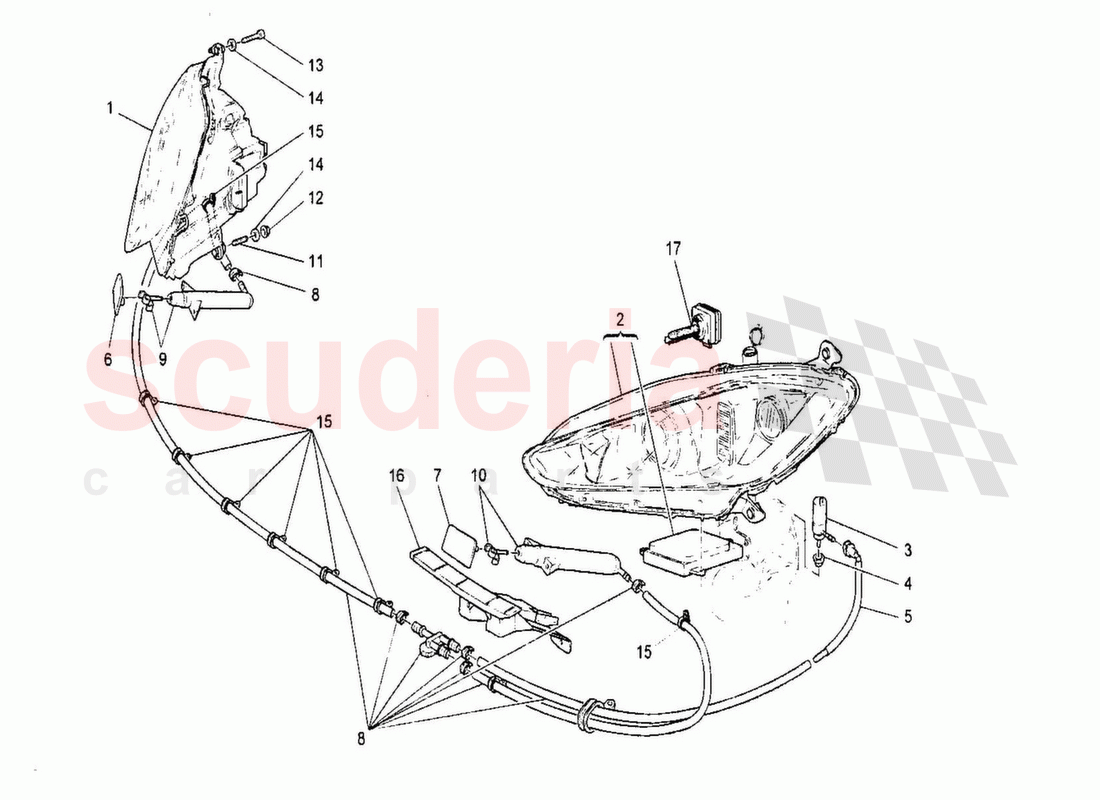

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	286390	RH Front Headlight RHD (Black Frame White Side Marker)	$2,677.61	To Order

Photo	Part No	Description	Price (each)	Stock
	286391	LH Front Headlight (Black Frame White Side Marker)	$2,582.66	To Order

Photo	Part No	Description	Price (each)	Stock
	65164700	HEADLIGHTS WASHER PUMP	$103.87	To Order

Photo	Part No	Description	Price (each)	Stock
	65511700	GASKET	$6.12	To Order

Photo	Part No	Description	Price (each)	Stock
	80554300	HEADLIGHTS WASHER UNION	$75.32	To Order

Photo	Part No	Description	Price (each)	Stock
	80056810	RH Headlight Washer Cover	$73.08	To Order

Photo	Part No	Description	Price (each)	Stock
	80056710	LH HEADLIGHT WASHER LID	$200.19	To Order

Photo	Part No	Description	Price (each)	Stock
	980145141	PIPES FOR HEADLIGHT WASHER SYSTEM	$161.23	To Order

Photo	Part No	Description	Price (each)	Stock
	980145142	RH Light Washer Unit	$216.70	To Order

Photo	Part No	Description	Price (each)	Stock
	980145143	LH HEADLIGHT WASHER UNIT	$224.48	To Order

Photo	Part No	Description	Price (each)	Stock
	13541724	STUD	$2.83	To Order

Photo	Part No	Description	Price (each)	Stock
	13046114	NUT	$2.05	To Order

Photo	Part No	Description	Price (each)	Stock
	16286524	SCREW HEX HEAD	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	12647124	WASHER	$2.53	To Order

Photo	Part No	Description	Price (each)	Stock
	10441590	BRACKET WITH SHEATH	$1.27	To Order

Photo	Part No	Description	Price (each)	Stock
	900028015	XENON BULB D1S 35W	$222.30	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	286390	RH Front Headlight RHD (Black Frame White Side Marker)	286390 RH Front Headlight RHD (Black Frame White Side Marker)	$2,677.61	1
2	286391	LH Front Headlight (Black Frame White Side Marker)	286391 LH Front Headlight (Black Frame White Side Marker)	$2,582.66	1
3	65164700	HEADLIGHTS WASHER PUMP	65164700 HEADLIGHTS WASHER PUMP	$103.87	1
4	65511700	GASKET	65511700 GASKET	$6.12 MSRP: ~~6.28~~ (2.5% off)	1
5	80554300	HEADLIGHTS WASHER UNION	80554300 HEADLIGHTS WASHER UNION	$75.32	1
6	80056810	RH Headlight Washer Cover	80056810 RH Headlight Washer Cover	$73.08	1
7	80056710	LH HEADLIGHT WASHER LID	80056710 LH HEADLIGHT WASHER LID	$200.19	1
8	980145141	PIPES FOR HEADLIGHT WASHER SYSTEM	980145141 PIPES FOR HEADLIGHT WASHER SYSTEM	$161.23	1
9	980145142	RH Light Washer Unit	980145142 RH Light Washer Unit	$216.70	1
10	980145143	LH HEADLIGHT WASHER UNIT	980145143 LH HEADLIGHT WASHER UNIT	$224.48	1
11	13541724	STUD	13541724 STUD	$2.83	2
12	13046114	NUT	13046114 NUT	$2.05	2
13	16286524	SCREW HEX HEAD	16286524 SCREW HEX HEAD	$2.92	4
14	12647124	WASHER	12647124 WASHER	$2.53	6
15	10441590	BRACKET WITH SHEATH	10441590 BRACKET WITH SHEATH	$1.27	8
16	80056300	LH BRACKET	80056300 LH BRACKET	$33.46	1
16	80056400	RH Bracket	80056400 RH Bracket	$33.46	1
17	900028015	XENON BULB D1S 35W	900028015 XENON BULB D1S 35W	$222.30	2
