Name: REAR EXHAUST SYSTEM
Rating: 5.0 (1 reviews)

REAR EXHAUST SYSTEM of Maserati Maserati 3200 GT / Assetto Corsa

View All

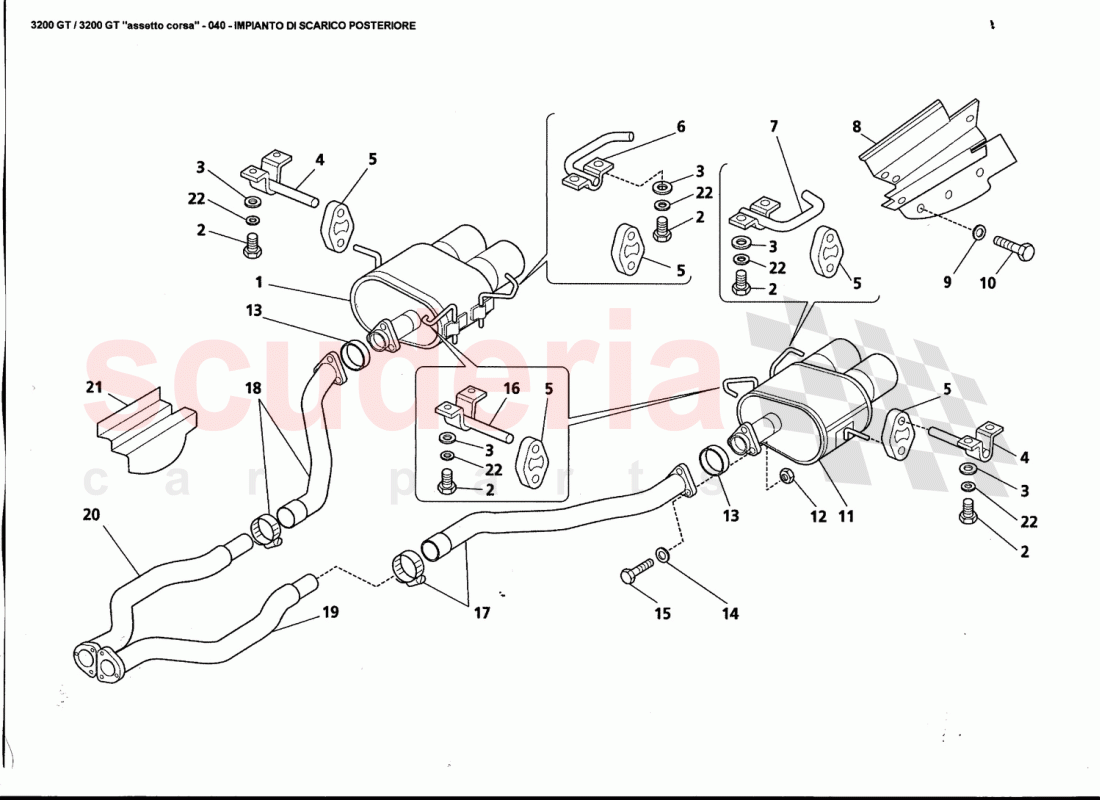

Maserati 3200 GT / Assetto Corsa - REAR EXHAUST SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	389000110	REAR RH SILENCER	$1,025.02	To Order

Photo	Part No	Description	Price (each)	Stock
	16043111	SCREW	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	13578305	BLANK WASHER	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	389000504	SILENCER EXTERNAL U-BOLT	$20.38	To Order

Photo	Part No	Description	Price (each)	Stock
	389000503	PAD	$16.88	To Order

Photo	Part No	Description	Price (each)	Stock
	389000507	RH SILENCER REAR U-BOLT	$26.92	To Order

Photo	Part No	Description	Price (each)	Stock
	389000508	LH SILENCER REAR U-BOLT	$26.92	To Order

Photo	Part No	Description	Price (each)	Stock
	386100249	REAR LH HEAT GUARD	$538.04	To Order

Photo	Part No	Description	Price (each)	Stock
	11195579	TAPERED WASHER	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	10711227	SCREW	$2.83	To Order

Photo	Part No	Description	Price (each)	Stock
	389000109	REAR LH SILENCER	$1,025.02	To Order

Photo	Part No	Description	Price (each)	Stock
	14058519	FLANGED NUT M8 X 8	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	389000305	SEAL RING	$114.96	To Order

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	14306821	SCREW	$2.39	To Order

Photo	Part No	Description	Price (each)	Stock
	389000505	SILENCER INTERNAL FRONT U-BOLT	$22.26	To Order

Photo	Part No	Description	Price (each)	Stock
	389000131	REAR LH INTERMEDIATE EXHAUST PIPE	$501.23	To Order

Photo	Part No	Description	Price (each)	Stock
	389000132	REAR RH INTERMEDIATE EXHAUST PIPE	$498.82	To Order

Photo	Part No	Description	Price (each)	Stock
	389000115	FRONT LH INTERMEDIATE EXHAUST PIPE	$85.06	To Order

Photo	Part No	Description	Price (each)	Stock
	389000116	FRONT RH INTERMEDIATE EXHAUST PIPE	$84.81	To Order

Photo	Part No	Description	Price (each)	Stock
	386100250	REAR RH HEAT GUARD	$424.59	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHERD. 8,40-15X 0,8	$1.62	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	389000110	REAR RH SILENCER	389000110 REAR RH SILENCER	$1,025.02	1
2	16043111	SCREW	16043111 SCREW	$1.97	12
3	13578305	BLANK WASHER	13578305 BLANK WASHER	$1.97	12
4	389000504	SILENCER EXTERNAL U-BOLT	389000504 SILENCER EXTERNAL U-BOLT	$20.38	2
5	389000503	PAD	389000503 PAD	$16.88	8
6	389000507	RH SILENCER REAR U-BOLT	389000507 RH SILENCER REAR U-BOLT	$26.92	1
7	389000508	LH SILENCER REAR U-BOLT	389000508 LH SILENCER REAR U-BOLT	$26.92	1
8	386100249	REAR LH HEAT GUARD	386100249 REAR LH HEAT GUARD	$538.04	1
9	11195579	TAPERED WASHER	11195579 TAPERED WASHER	$1.97	14
10	10711227	SCREW	10711227 SCREW	$2.83 MSRP: ~~3.11~~ (9% off)	14
11	389000109	REAR LH SILENCER	389000109 REAR LH SILENCER	$1,025.02	1
12	14058519	FLANGED NUT M8 X 8	14058519 FLANGED NUT M8 X 8	$1.97	6
13	389000305	SEAL RING	389000305 SEAL RING	$114.96	2
14	12638524	WASHER	12638524 WASHER	$1.97	6
15	14306821	SCREW	14306821 SCREW	$2.39	6
16	389000505	SILENCER INTERNAL FRONT U-BOLT	389000505 SILENCER INTERNAL FRONT U-BOLT	$22.26	2
17	389000131	REAR LH INTERMEDIATE EXHAUST PIPE	389000131 REAR LH INTERMEDIATE EXHAUST PIPE	$501.23	1
18	389000132	REAR RH INTERMEDIATE EXHAUST PIPE	389000132 REAR RH INTERMEDIATE EXHAUST PIPE	$498.82	1
19	389000115	FRONT LH INTERMEDIATE EXHAUST PIPE	389000115 FRONT LH INTERMEDIATE EXHAUST PIPE	$85.06	1
20	389000116	FRONT RH INTERMEDIATE EXHAUST PIPE	389000116 FRONT RH INTERMEDIATE EXHAUST PIPE	$84.81	1
21	386100250	REAR RH HEAT GUARD	386100250 REAR RH HEAT GUARD	$424.59	1
22	12601374	WASHERD. 8,40-15X 0,8	12601374 WASHERD. 8,40-15X 0,8	$1.62	12
