FULL PIPES - Valid for GS till Ass.Nr.4445 and for Ass.Nr.4491, 4499 and 4500 - Valid for GD till As of Maserati Maserati 3200 GT / Assetto Corsa

View All

Maserati 3200 GT / Assetto Corsa - FULL PIPES - Valid for GS till Ass.Nr.4445 and for Ass.Nr.4491, 4499 and 4500 - Valid for GD till As

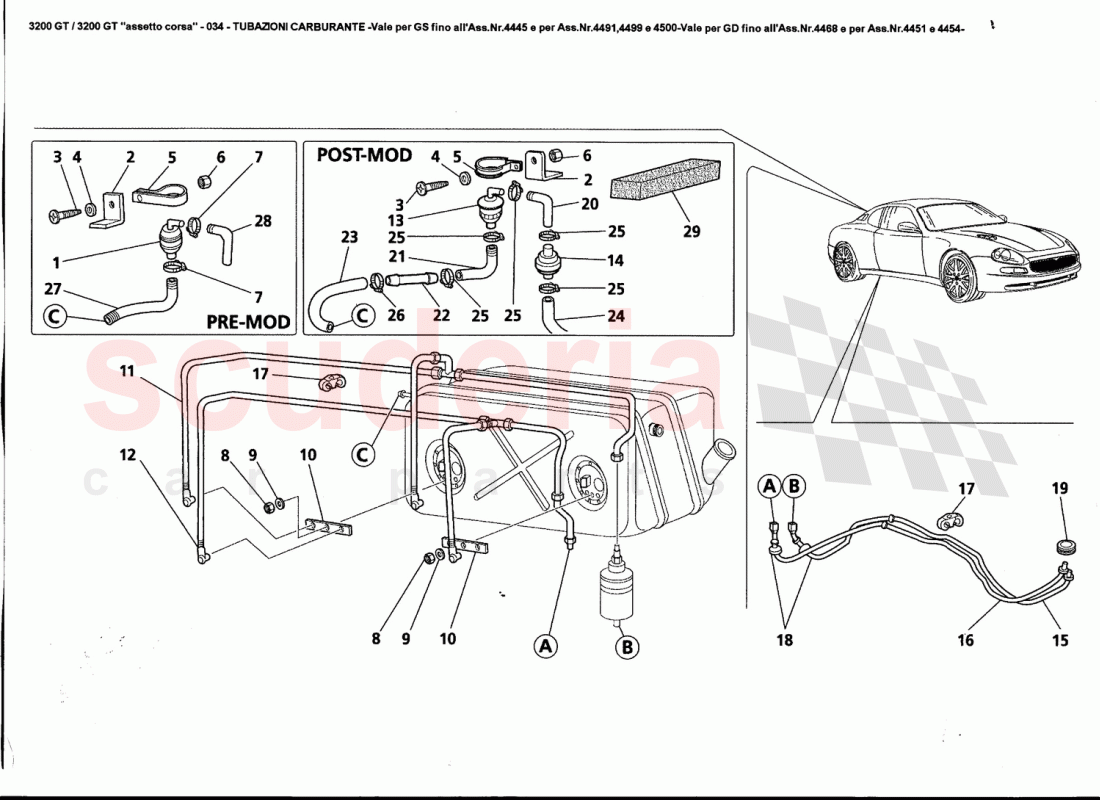

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	379200102	ROLL-OVER VALVE (BLACK)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	389200468	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977515	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519304	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	389220163	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13046011	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10186490	STRIP COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14498801	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174594	UNIDIRECTIONAL VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	389220493	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	389220491	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319230502	UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	389201336	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	389220409	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13126970	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13125270	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	389220336	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	389200409	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	389200347	SMALL BLOCK	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	379200102	ROLL-OVER VALVE (BLACK)	379200102 ROLL-OVER VALVE (BLACK) Valid till Ass. Nr.1711 / Up to no. 1688 (M.T. LH.D.) / Up to no. 1701 (M.T. RH.D.) / Up to no. 1691 (A.T. J.)	-	1	Enquire
2	389200468	BRACKET	389200468 BRACKET	-	1	Enquire
3	10977515	SCREW	10977515 SCREW	-	1	Enquire
4	10519304	WASHER	10519304 WASHER	-	1	Enquire
5	389220163	BRACKET	389220163 BRACKET	-	1	Enquire
6	13046011	NUT	13046011 NUT	-	1	Enquire
7	10186490	STRIP COLLAR	10186490 STRIP COLLAR Valid till Ass. Nr.1711 / Up to no. 1688 (M.T. LH.D.) / Up tono. 1701 (M.T. RH.D.) / Up to no. 1691 (A.T. J.)	-	4	Enquire
8	14039614	NUT	14039614 NUT	-	2	Enquire
9	14498801	Washer	14498801 Washer PLATE / DELIVERY LINE / RETURN LINE / ROLL-OVER VALVE (WHITE) / Valid from Ass. Nr.1712 / From no. 1689 (M.T. LH.D.) / From no. 1702 (M.T. RH.D.) / From no. 1692 (A.T. -J.) / From 1st vehicle (GOL)	-	2	Enquire
14	174594	UNIDIRECTIONAL VALVE	174594 UNIDIRECTIONAL VALVE Valid from Ass. Nr.1712 / From no. 1689 (M.T. LH.D.) / From no. 1702 (M.T. RH.D.) / From no. 1692 (A.T. -J.) / From 1st vehicle (GOL) / PETROL DELIVERY PIPES / PETROL RETURN PIPES / RETAINING CLIP / FAIRLEAD / FAIRLEAD	-	1	Enquire
20	389220493	SLEEVE	389220493 SLEEVE Valid from Ass. Nr.1712 / From no. 1689 (M.T. LH.D.) / From no. 1702 (M.T. RH.D.) / From no. 1692 (A.T. - J.) / From 1st vehicle (GOL)	-	1	Enquire
21	389220491	SLEEVE	389220491 SLEEVE Valid from Ass. Nr.1712 / From no. 1689 (M.T. LH.D.) / From no. 1702 (M.T. RH.D.) / From no. 1692 (A.T.-J.) / From 1st vehicle (GOL)	-	1	Enquire
22	319230502	UNION	319230502 UNION Valid from Ass. Nr.1712 / From no. 1689 (M.T. LH.D.) / From no. 1702 (M.T. RH.D.) / From no. 1692 (A.T. -J.) / From 1st vehicle (GOL)	-	1	Enquire
23	389201336	SLEEVE	389201336 SLEEVE Valid from Ass. Nr.1712 / From no. 1689 (M.T. LH.D.) / From no. 1702 (M.T. RH.D.) / From no. 1692 (A.T.-J.) / From 1st vehicle (GOL)	-	1	Enquire
24	389220409	SLEEVE	389220409 SLEEVE Valid from Ass. Nr.1712 / From no. 1689 (M.T. LH.D.) / From no. 1702 (M.T. RH.D.) / From no. 1692 (A.T. - J.) / From 1st vehicle (GOL)	-	1	Enquire
25	13126970	COLLAR	13126970 COLLAR Valid from Ass. Nr.1712 / From no. 1689 (M.T. LH.D.) / From no. 1702 (M.T. RH.D.) / From no. 1692 (A.T. - J.) / From 1st vehicle (GOL)	-	5	Enquire
26	13125270	CLAMP	13125270 CLAMP Valid from Ass. Nr.1712 / From no. 1689 (M.T. LH.D.) / From no. 1702 (M.T. RH.D.) / From no. 1692 (A.T.-J.) / From 1st vehicle (GOL)	-	1	Enquire
27	389220336	SLEEVE	389220336 SLEEVE Valid till Ass. Nr.1711 / Up to no. 1688 (M.T. LH.D.) / Up to no. 1701 (M.T. RH.D.) / Up to no. 1691 (A.T. J.)	-	1	Enquire
28	389200409	SLEEVE	389200409 SLEEVE Valid till Ass. Nr.1711 / Up to no. 1688 (M.T. LH.D.) / Up to no. 1701 (M.T. RH.D.) / Up to no. 1691 (A.T. J.)	-	1	Enquire
29	389200347	SMALL BLOCK	389200347 SMALL BLOCK Valid from Ass. Nr.1712 / From no. 1689 (M.T. LH.D.) / From no. 1702 (M.T. RH.D.) / From no. 1692 (A.T. - J.) / From 1st vehicle (GOL)	-	1	Enquire
