Full Pipes - Valid For Gs From Ass.nr.4446 Not For Ass.nr.4491, 4499 And 4500 - Valid For Gd From...

Maserati 3200 GT / Assetto Corsa

Find Your Part

Maserati 3200 GT / Assetto Corsa - FULL PIPES - Valid for GS from Ass.Nr.4446 not for Ass.Nr.4491, 4499 and 4500 - Valid for GD from...

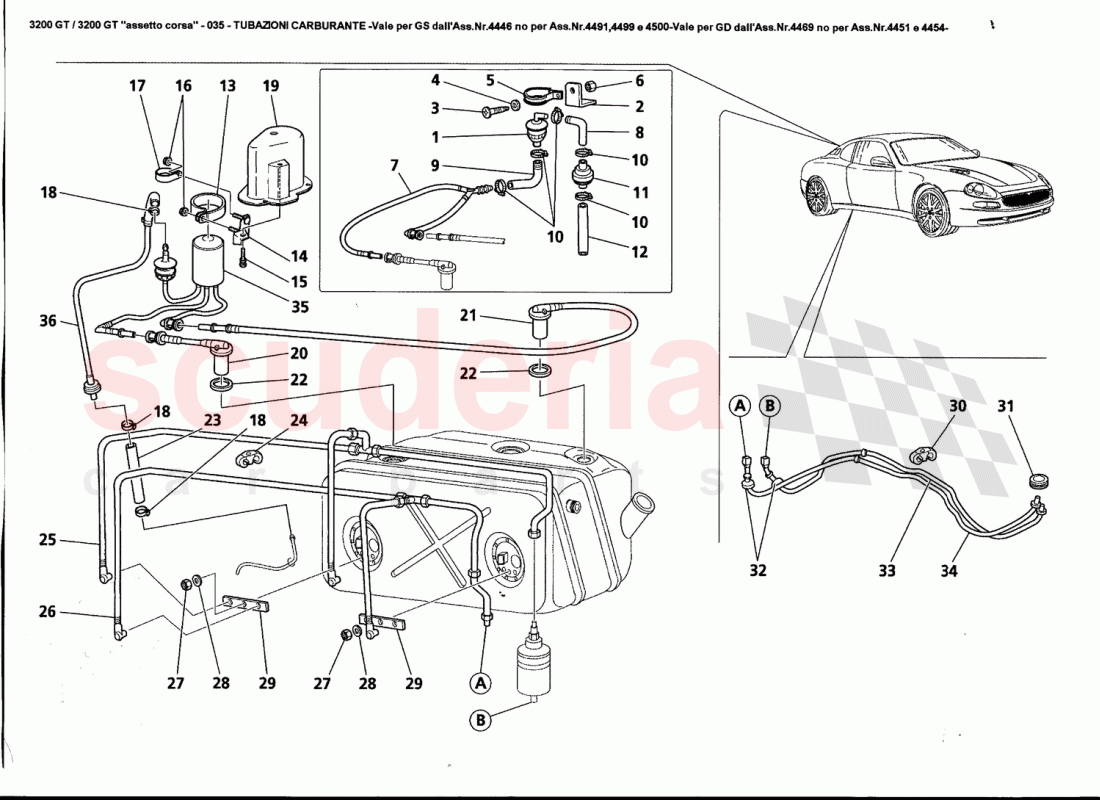

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
389220102 ROLL-OVER VALVE (WHITE) Enquire To Order
Photo Part No Description Price (each) Stock
389200468 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
10977515 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
10519304 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
389220163 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
13046011 NUT Enquire To Order
Photo Part No Description Price (each) Stock
389220156 Y SLEEVE Enquire To Order
Photo Part No Description Price (each) Stock
389220493 SLEEVE Enquire To Order
Photo Part No Description Price (each) Stock
389220491 SLEEVE Enquire To Order
Photo Part No Description Price (each) Stock
13126970 COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
174594 UNIDIRECTIONAL VALVE Enquire To Order
Photo Part No Description Price (each) Stock
389220409 SLEEVE Enquire To Order
Photo Part No Description Price (each) Stock
389220133 CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
389201468 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
13276211 BOLT M6 X 16 Enquire To Order
Photo Part No Description Price (each) Stock
14054577 NUT Enquire To Order
Photo Part No Description Price (each) Stock
389220163 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
13126970 COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
66294500 ROLL-OVER VALVE COVER Enquire To Order
Photo Part No Description Price (each) Stock
389220158 COMPLETE L.H. FLOAT VALVE Enquire To Order
Photo Part No Description Price (each) Stock
389220157 COMPLETE R.H. FLOAT VALVE Enquire To Order
Photo Part No Description Price (each) Stock
46740969 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
389220408 SLEEVE Enquire To Order
Photo Part No Description Price (each) Stock
389200406 CLIP Enquire To Order
389200405 RETAINING CLIP Enquire To Order
Photo Part No Description Price (each) Stock
389200123 DELIVERY LINE Enquire To Order
Photo Part No Description Price (each) Stock
389200124 RETURN LINE Enquire To Order
Photo Part No Description Price (each) Stock
14039614 NUT Enquire To Order
Photo Part No Description Price (each) Stock
14498801 Washer Enquire To Order
Photo Part No Description Price (each) Stock
393750306 PLATE Enquire To Order
Photo Part No Description Price (each) Stock
379200408 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
389200565 FAIRLEAD Enquire To Order
Photo Part No Description Price (each) Stock
375500373 WIRE INLET Enquire To Order
Photo Part No Description Price (each) Stock
389200128 PETROL DELIVERY PIPES Enquire To Order
Photo Part No Description Price (each) Stock
389200129 PETROL RETURN PIPES Enquire To Order
Photo Part No Description Price (each) Stock
980001018 KIT VAPOR SEPARETOR + ROLL OVER VALVE + PIPE Enquire To Order
Photo Part No Description Price (each) Stock
980001019 KIT UNIDIRECTIONAL VALVE + PIPE Enquire To Order
View All
FULL PIPES - Valid for GS from Ass.Nr.4446 not for Ass.Nr.4491, 4499 and 4500 - Valid for GD from Ass of Maserati Maserati 3200 GT / Assetto Corsa Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 389220102
ROLL-OVER VALVE (WHITE)
Valid for car with fuel tank 389201103 for GS till Ass. Nr.4445 and for Ass. Nr.4491,4499 and 4500 / Valid for car with fuel tank 389201103 for GD till Ass. Nr.4468 and for Ass. Nr.4451 and 4454 / / / / / 		- 1 Enquire
2 389200468
BRACKET
Valid for car with fuel tank 389201103 for GS till Ass. Nr.4445 and for Ass. Nr.4491,4499 and 4500 / Valid for car with fuel tank 389201103 for GD till Ass. Nr.4468 and for Ass. Nr.4451 and 4454 / / / / / 		- 1 Enquire
3 10977515
SCREW
Valid for car with fuel tank 389201103 for GS till Ass. Nr.4445 and for Ass. Nr.4491,4499 and 4500 / Valid for car with fuel tank 389201103 for GD till Ass. Nr.4468 and for Ass. Nr.4451 and 4454 / / / / / 		- 1 Enquire
4 10519304
WASHER
Valid for car with fuel tank 389201103 for GS till Ass. Nr.4445 and for Ass. Nr.4491,4499 and 4500 / Valid for car with fuel tank 389201103 for GD till Ass. Nr.4468 and for Ass. Nr.4451 and 4454 / / / / / 		- 1 Enquire
5 389220163
BRACKET
Valid for car with fuel tank 389201103 for GS till Ass. Nr.4445 and for Ass. Nr.4491,4499 and 4500 / Valid for car with fuel tank 389201103 for GD till Ass. Nr.4468 and for Ass. Nr.4451 and 4454 / / / / / 		- 1 Enquire
6 13046011
NUT
Valid for car with fuel tank 389201103 for GS till Ass. Nr.4445 and for Ass. Nr.4491,4499 and 4500 / Valid for car with fuel tank 389201103 for GD till Ass. Nr.4468 and for Ass. Nr.4451 and 4454 / / / / / 		- 1 Enquire
7 389220156
Y SLEEVE
Valid for car with fuel tank 389201103 for GS till Ass. Nr.4445 and for Ass. Nr.4491,4499 and 4500 / Valid for car with fuel tank 389201103 for GD till Ass. Nr.4468 and for Ass. Nr.4451 and 4454 / / / / 		- 1 Enquire
8 389220493
SLEEVE
Valid for car with fuel tank 389201103 for GS till Ass. Nr.4445 and for Ass. Nr.4491,4499 and 4500 / Valid for car with fuel tank 389201103 for GD till Ass. Nr.4468 and for Ass. Nr.4451 and 4454 / / / / 		- 1 Enquire
9 389220491
SLEEVE
Valid for car with fuel tank 389201103 for GS till Ass. Nr.4445 and for Ass. Nr.4491,4499 and 4500 / Valid for car with fuel tank 389201103 for GD till Ass. Nr.4468 and for Ass. Nr.4451 and 4454 / / / / / 		- 1 Enquire
10 13126970
COLLAR
Valid for car with fuel tank 389201103 for GS till Ass. Nr.4445 and for Ass. Nr.4491,4499 and 4500 / Valid for car with fuel tank 389201103 for GD till Ass. Nr.4468 and for Ass. Nr.4451 and 4454 		- 5 Enquire
11 174594
UNIDIRECTIONAL VALVE
Valid for car with fuel tank 389201103 for GS till Ass. Nr.4445 and for Ass. Nr.4491,4499 and 4500 / Valid for car with fuel tank 389201103 for GD till Ass. Nr.4468 and for Ass. Nr.4451 and 4454 		- 1 Enquire
12 389220409
SLEEVE
Valid for car with fuel tank 389201103 for GS till Ass. Nr.4445 and for Ass. Nr.4491,4499 and 4500 / Valid for car with fuel tank 389201103 for GD till Ass. Nr.4468 and for Ass. Nr.4451 and 4454 		- 1 Enquire
13 389220133
CLAMP
Not for BRA,GOL,J and AUS 		- 1 Enquire
14 389201468
BRACKET
Not for BRA,GOL,J and AUS 		- 1 Enquire
15 13276211
BOLT M6 X 16
Not for BRA,GOL,J and AUS 		- 1 Enquire
16 14054577
NUT
Not for BRA,GOL,J and AUS / / 		- 2 Enquire
17 389220163
BRACKET
Not for BRA,GOL,J and AUS 		- 1 Enquire
18 13126970
COLLAR
Not for BRA,GOL,J and AUS 		- 3 Enquire
19 66294500
ROLL-OVER VALVE COVER
Not for BRA.GOL.J and AUS 		- 1 Enquire
20 389220158
COMPLETE L.H. FLOAT VALVE 		- 1 Enquire
21 389220157
COMPLETE R.H. FLOAT VALVE 		- 1 Enquire
22 46740969
GASKET 		- 2 Enquire
23 389220408
SLEEVE
Not for BRA,GOL,J and AUS 		- 1 Enquire
24 389200406
CLIP 		- 1 Enquire
24 389200405
RETAINING CLIP 		- 1 Enquire
25 389200123
DELIVERY LINE 		- 1 Enquire
26 389200124
RETURN LINE 		- 1 Enquire
27 14039614
NUT 		- 2 Enquire
28 14498801
Washer 		- 2 Enquire
29 393750306
PLATE 		- 2 Enquire
30 379200408
CLIP 		- 14 Enquire
31 389200565
FAIRLEAD 		- 1 Enquire
32 375500373
WIRE INLET 		- 2 Enquire
33 389200128
PETROL DELIVERY PIPES 		- 1 Enquire
34 389200129
PETROL RETURN PIPES 		- 1 Enquire
35 980001018
KIT VAPOR SEPARETOR + ROLL OVER VALVE + PIPE
Not for BRA,GOL,J and AUS 		- 1 Enquire
36 980001019
KIT UNIDIRECTIONAL VALVE + PIPE
Not for BRA,GOL,J and AUS 		- 1 Enquire
