DIFFERENTIAL of Lamborghini Lamborghini Urus (2018-2019)

View All

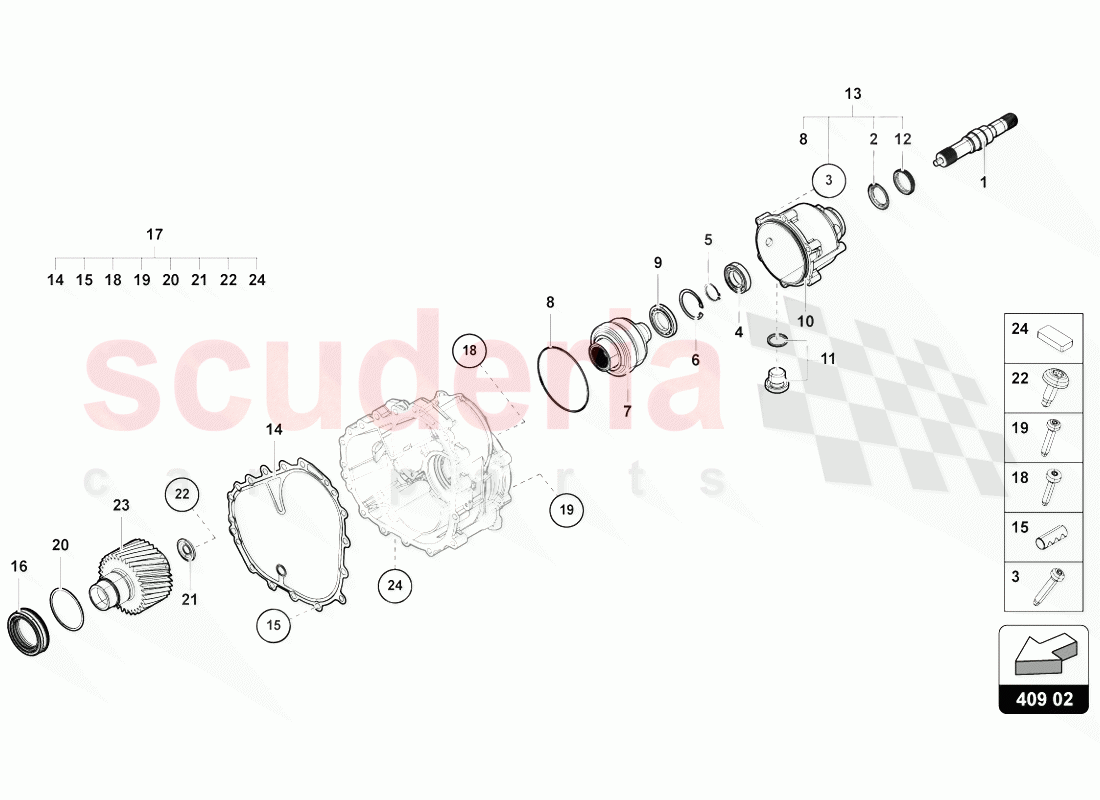

Lamborghini Urus (2018-2019) - DIFFERENTIAL

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	BK409345	STUB SHAFT	$451.61	To Order

Photo	Part No	Description	Price (each)	Stock
		SHAFT OIL SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		TORX SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	B6409144	CYLINDER ROLLER BEARING	$210.35	To Order

Photo	Part No	Description	Price (each)	Stock
	1V409297	SECURING RING	$5.85	To Order

Photo	Part No	Description	Price (each)	Stock
		SECURING RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BL409755E	CENTRE DIFFERENTIAL, SELF- LOCKING	$2,426.09	To Order

Photo	Part No	Description	Price (each)	Stock
		O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	B6311235	BALL BEARING	$221.11	To Order

Photo	Part No	Description	Price (each)	Stock
		TRANSFER BOX HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		SEAL BOLT WITH SEALING RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		SPLASH PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BK498111C	SET OF GASKETS FOR FINAL DRIVE	$139.12	To Order

Photo	Part No	Description	Price (each)	Stock
		SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		CENTRING PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		BALL BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BK498111G	GASKET SET FOR TRANSFER GEARBOX	$139.79	To Order

Photo	Part No	Description	Price (each)	Stock
		SCREW WITH INT. SERRATIONS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		SHAFT OIL SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		BELLEVILLE SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		INPUT SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		MAGNETS	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	BK409345	STUB SHAFT	BK409345 STUB SHAFT	$451.61	1
2	-	SHAFT OIL SEAL	SHAFT OIL SEAL NOT AVAILABLE - SEE ILLUSTRATION AND REF.:- 300-010,1	-	-	Enquire
3	-	TORX SOCKET HEAD BOLT	TORX SOCKET HEAD BOLT INCLUDED IN REF.:- 13	-	-	Enquire
4	B6409144	CYLINDER ROLLER BEARING	B6409144 CYLINDER ROLLER BEARING	$210.35	1
5	1V409297	SECURING RING	1V409297 SECURING RING	$5.85	1
6	-	SECURING RING	SECURING RING NOT AVAILABLE - SEE ILLUSTRATION AND REF.:- 300-010,1	-	-	Enquire
7	BL409755E	CENTRE DIFFERENTIAL, SELF- LOCKING	BL409755E CENTRE DIFFERENTIAL, SELF- LOCKING	$2,426.09	1
8	-	O-RING	O-RING NOT AVAILABLE - SEE ILLUSTRATION AND REF.:- 300-010,1	-	-	Enquire
9	B6311235	BALL BEARING	B6311235 BALL BEARING	$221.11	1
10	-	TRANSFER BOX HOUSING	TRANSFER BOX HOUSING NOT AVAILABLE - SEE ILLUSTRATION AND REF.:- 300-010,1	-	-	Enquire
11	-	SEAL BOLT WITH SEALING RING	SEAL BOLT WITH SEALING RING SEE ILLUSTRATION AND REF.:- 325-010,4	-	-	Enquire
12	-	SPLASH PLATE	SPLASH PLATE 13	-	-	Enquire
13	BK498111C	SET OF GASKETS FOR FINAL DRIVE	BK498111C SET OF GASKETS FOR FINAL DRIVE	$139.12	1
14	-	SEAL	SEAL NOT AVAILABLE - SEE ILLUSTRATION AND REF.:- 300-010,1	-	-	Enquire
15	-	CENTRING PIN	CENTRING PIN NOT AVAILABLE - SEE ILLUSTRATION AND REF.:- 300-010,1	-	-	Enquire
16	-	BALL BEARING	BALL BEARING NOT AVAILABLE - SEE ILLUSTRATION AND REF.:- 300-010,1	-	-	Enquire
17	BK498111G	GASKET SET FOR TRANSFER GEARBOX	BK498111G GASKET SET FOR TRANSFER GEARBOX	$139.79	1
18	-	SCREW WITH INT. SERRATIONS	SCREW WITH INT. SERRATIONS NOT AVAILABLE - SEE ILLUSTRATION AND REF.:- 300-010,1	-	-	Enquire
19	-	HEXAGON SOCKET HEAD BOLT	HEXAGON SOCKET HEAD BOLT NOT AVAILABLE - SEE ILLUSTRATION AND REF.:- 300-010,1	-	-	Enquire
20	-	SHAFT OIL SEAL	SHAFT OIL SEAL NOT AVAILABLE - SEE ILLUSTRATION AND REF.:- 300-010,1	-	-	Enquire
21	-	BELLEVILLE SPRING	BELLEVILLE SPRING NOT AVAILABLE - SEE ILLUSTRATION AND REF.:- 300-010,1	-	-	Enquire
22	-	HEXAGON SOCKET HEAD BOLT	HEXAGON SOCKET HEAD BOLT NOT AVAILABLE - SEE ILLUSTRATION AND REF.:- 300-010,1	-	-	Enquire
23	-	INPUT SHAFT	INPUT SHAFT NOT AVAILABLE - SEE ILLUSTRATION AND REF.:- 300-010,1	-	-	Enquire
24	-	MAGNETS	MAGNETS NOT AVAILABLE - SEE ILLUSTRATION AND REF.:- 300-010,1	-	-	Enquire
