SUSPENSION of Lamborghini Lamborghini Urus (2018-2019)

View All

Lamborghini Urus (2018-2019) - SUSPENSION

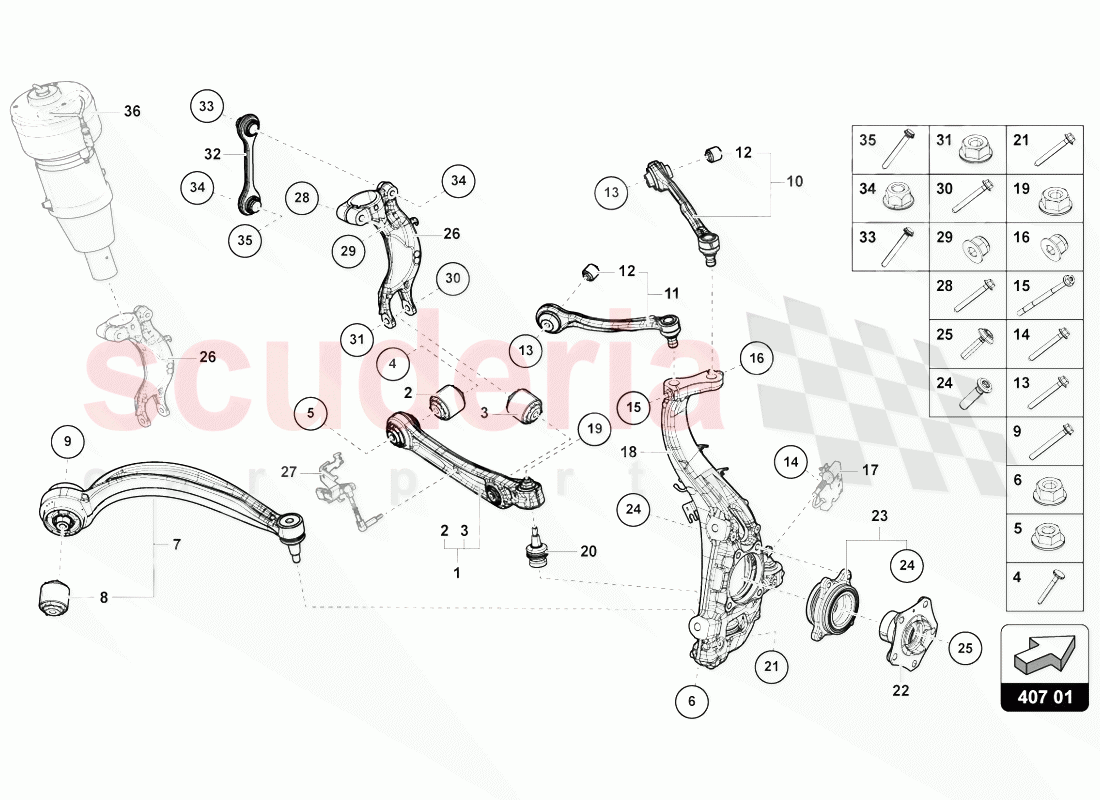

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4M0407151K	FRONT WISHBONE LINK	Enquire	To Order
	4M0407152N	FRONT WISHBONE LINK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		BONDED RUBBER BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0407181	BONDED RUBBER BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT007028	12-POINT HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT001987	HEX. NUT, SELF-LOCKING WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT006151	HEXAGON COLLAR NUT SELF-LOCKING M14 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0407693E	SUSPENSION GUIDE	Enquire	To Order
	4M0407694F	SUSPENSION GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0407183B	HYDRO-MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10817601	HEXAGON FLANGE SCREW (COMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0407505B	CONTROL ARM,FRONT	Enquire	To Order
	4M0407505G	GUIDE	Enquire	To Order
	4M0407506G	GUIDE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4M0407509G	GUIDE	Enquire	To Order
	4M0407510G	GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0407515A	BONDED RUBBER BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91221601	HEXAGON FLANGE SCREW (COMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		CYLINDER FITTING SCREW WITH HEXAGON SOCKET HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT006542	HEXAGON FLANGE SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10272302	HEXAGON COLLAR NUT SELF-LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		SPEED SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0407253M	WHEEL BEARING HOUSING	Enquire	ARRIVING SOON
	4M0407254M	WHEEL BEARING HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT006151	HEXAGON COLLAR NUT SELF-LOCKING M14 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0407689C	SWIVEL JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10241507	HEX COLLARED BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0407613	WHEEL HUB	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	4ML498625	WHEEL BEARING WITH ASSEMBLY PARTS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT006966	SCREW WITH INT. SERRATIONS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8E0407643A	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0413037J	SUSPENSION FORKS	Enquire	To Order
	4M0413038J	SUSPENSION FORKS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		LEVEL SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10272202	HEXAGON HEAD BOLT (COMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10106402	HEXAGON COLLAR NUT SELF-LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10784702	HEXAGON FLANGE SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT001987	HEX. NUT, SELF-LOCKING WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0411317K	COUPLING ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT007422	12-POINT HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N0150816	HEXAGON COLLAR NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT007423	12-POINT HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		GAS STRUT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4M0407151K	FRONT WISHBONE LINK	4M0407151K FRONT WISHBONE LINK LEFT	-	1	Enquire
1	4M0407152N	FRONT WISHBONE LINK	4M0407152N FRONT WISHBONE LINK RIGHT	-	1	Enquire
2	-	BONDED RUBBER BUSH	BONDED RUBBER BUSH NOT AVAILABLE-FRONT, INNER	-	-	Enquire
3	4M0407181	BONDED RUBBER BUSH	4M0407181 BONDED RUBBER BUSH FRONT, OUTER	-	2	Enquire
4	WHT007028	12-POINT HEAD BOLT	WHT007028 12-POINT HEAD BOLT M12X1,5X100	-	2	Enquire
5	WHT001987	HEX. NUT, SELF-LOCKING WITH WASHER	WHT001987 HEX. NUT, SELF-LOCKING WITH WASHER M12X1,5	-	2	Enquire
6	WHT006151	HEXAGON COLLAR NUT SELF-LOCKING M14 X 1.5	WHT006151 HEXAGON COLLAR NUT SELF-LOCKING M14 X 1.5 M14X1,5	-	2	Enquire
7	4M0407693E	SUSPENSION GUIDE	4M0407693E SUSPENSION GUIDE LEFT FRONT	-	1	Enquire
7	4M0407694F	SUSPENSION GUIDE	4M0407694F SUSPENSION GUIDE RIGHT FRONT	-	1	Enquire
8	4M0407183B	HYDRO-MOUNTING	4M0407183B HYDRO-MOUNTING FRONT, INNER	-	2	Enquire
9	N10817601	HEXAGON FLANGE SCREW (COMBI)	N10817601 HEXAGON FLANGE SCREW (COMBI) M12X1.5X140	-	2	Enquire
10	4M0407505B	CONTROL ARM,FRONT	4M0407505B CONTROL ARM,FRONT LEFT FRONT UPPER	-	1	Enquire
10	4M0407505G	GUIDE	4M0407505G GUIDE LEFT FRONT UPPER	-	1	Enquire
10	4M0407506G	GUIDE	4M0407506G GUIDE RIGHT FRONT UPPER	-	1	Enquire
10	4M0407506G	GUIDE	4M0407506G GUIDE RIGHT FRONT UPPER	-	1	Enquire
11	4M0407509G	GUIDE	4M0407509G GUIDE LEFT REAR UPPER	-	1	Enquire
11	4M0407510G	GUIDE	4M0407510G GUIDE RIGHT REAR UPPER	-	1	Enquire
12	4M0407515A	BONDED RUBBER BUSH	4M0407515A BONDED RUBBER BUSH INNER UPPER	-	4	Enquire
13	N91221601	HEXAGON FLANGE SCREW (COMBI)	N91221601 HEXAGON FLANGE SCREW (COMBI) M10X85	-	4	Enquire
14	-	CYLINDER FITTING SCREW WITH HEXAGON SOCKET HEAD	CYLINDER FITTING SCREW WITH HEXAGON SOCKET HEAD NOT AVAILABLE - SEE ILLUSTRATION AND REF.: 927.01	-	-	Enquire
15	WHT006542	HEXAGON FLANGE SCREW	WHT006542 HEXAGON FLANGE SCREW M10X130	-	2	Enquire
16	N10272302	HEXAGON COLLAR NUT SELF-LOCKING	N10272302 HEXAGON COLLAR NUT SELF-LOCKING M10	-	2	Enquire
17	-	SPEED SENSOR	SPEED SENSOR NOT AVAILABLE - SEE ILLUSTRATION AND REF.: 927.01	-	-	Enquire
18	4M0407253M	WHEEL BEARING HOUSING ARRIVING SOON	4M0407253M WHEEL BEARING HOUSING LEFT ARRIVING SOON	-	1	Enquire
18	4M0407254M	WHEEL BEARING HOUSING	4M0407254M WHEEL BEARING HOUSING RIGHT	-	1	Enquire
19	WHT006151	HEXAGON COLLAR NUT SELF-LOCKING M14 X 1.5	WHT006151 HEXAGON COLLAR NUT SELF-LOCKING M14 X 1.5 M14X1,5	-	2	Enquire
20	4M0407689C	SWIVEL JOINT	4M0407689C SWIVEL JOINT LEFT A. RIGHT	-	2	Enquire
21	N10241507	HEX COLLARED BOLT	N10241507 HEX COLLARED BOLT M10X70	-	2	Enquire
22	4M0407613	WHEEL HUB ARRIVING SOON	4M0407613 WHEEL HUB ARRIVING SOON	-	2	Enquire
23	4ML498625	WHEEL BEARING WITH ASSEMBLY PARTS	4ML498625 WHEEL BEARING WITH ASSEMBLY PARTS	-	2	Enquire
24	WHT006966	SCREW WITH INT. SERRATIONS	WHT006966 SCREW WITH INT. SERRATIONS M12X1,25X42	-	4	Enquire
25	8E0407643A	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	8E0407643A SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M16X1,5X72	-	2	Enquire
26	4M0413037J	SUSPENSION FORKS	4M0413037J SUSPENSION FORKS LEFT	-	1	Enquire
26	4M0413038J	SUSPENSION FORKS	4M0413038J SUSPENSION FORKS RIGHT	-	1	Enquire
27	-	LEVEL SENSOR	LEVEL SENSOR NOT AVAILABLE - SEE ILLUSTRATION :- 900-000	-	-	Enquire
28	N10272202	HEXAGON HEAD BOLT (COMBI)	N10272202 HEXAGON HEAD BOLT (COMBI) M12X1,5X95	-	2	Enquire
29	N10106402	HEXAGON COLLAR NUT SELF-LOCKING	N10106402 HEXAGON COLLAR NUT SELF-LOCKING M12X1,5-M12X1,5	-	2	Enquire
30	N10784702	HEXAGON FLANGE SCREW	N10784702 HEXAGON FLANGE SCREW M12X1.5X85	-	2	Enquire
31	WHT001987	HEX. NUT, SELF-LOCKING WITH WASHER	WHT001987 HEX. NUT, SELF-LOCKING WITH WASHER M12X1,5	-	2	Enquire
32	4M0411317K	COUPLING ROD	4M0411317K COUPLING ROD LEFT A. RIGHT	-	2	Enquire
33	WHT007422	12-POINT HEAD BOLT	WHT007422 12-POINT HEAD BOLT M12X85	-	2	Enquire
34	N0150816	HEXAGON COLLAR NUT	N0150816 HEXAGON COLLAR NUT M12X1,5-M12X1,5	-	4	Enquire
35	WHT007423	12-POINT HEAD BOLT	WHT007423 12-POINT HEAD BOLT M12X65-M12X65	-	2	Enquire
36	-	GAS STRUT	GAS STRUT NOT AVAILABLE - SEE ILLUSTRATION : 411.01	-	-	Enquire
37	-	GAS STRUT	GAS STRUT NOT AVAILABLE - SEE ILLUSTRATION : 411.01	-	-	Enquire
