DIFFERENTIAL of Lamborghini Lamborghini Urus (2018-2019)

View All

Lamborghini Urus (2018-2019) - DIFFERENTIAL

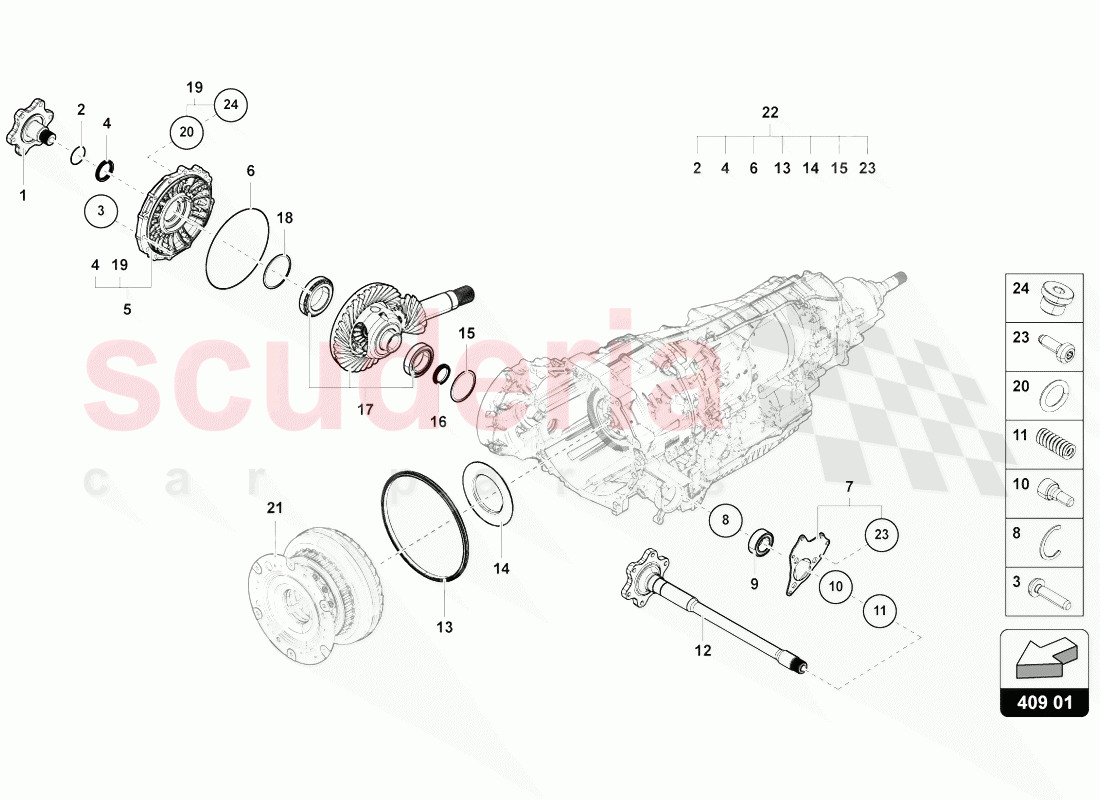

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4ML409356	FLANGED SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9L409297	SECURING RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BL398747	1 SET HEXAGON SOCKET FLAT HEAD BOLTS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		SHAFT OIL SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		COVER FOR AXLE DIFFERENTIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML409131	COVER FOR AXLE DIFFERENTIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9E409297	SECURING RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9E409144	CYLINDER ROLLER BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1V409380	THRUST PIECE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1V409379	PRESSURE SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML409355	FLANGED SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		SHAFT OIL SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		SHAFT OIL SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		ADJUSTING WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		PINION AND CROWN WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		ADJUSTING WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		SEAL BOLT WITH SEALING RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		CONVERTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	D5498111	SET OF GASKETS FOR FINAL DRIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		BUNGS	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4ML409356	FLANGED SHAFT	4ML409356 FLANGED SHAFT RIGHT	-	-	Enquire
2	9L409297	SECURING RING	9L409297 SECURING RING	-	1	Enquire
3	BL398747	1 SET HEXAGON SOCKET FLAT HEAD BOLTS	BL398747 1 SET HEXAGON SOCKET FLAT HEAD BOLTS	-	1	Enquire
4	-	SHAFT OIL SEAL	SHAFT OIL SEAL INCLUDED IN REF.:- 22	-	-	Enquire
5	-	COVER FOR AXLE DIFFERENTIAL	COVER FOR AXLE DIFFERENTIAL INCLUDED IN REF.:- 1	-	-	Enquire
6	-	O-RING	O-RING INCLUDED IN REF.:- 22	-	-	Enquire
7	4ML409131	COVER FOR AXLE DIFFERENTIAL	4ML409131 COVER FOR AXLE DIFFERENTIAL LEFT	-	-	Enquire
8	9E409297	SECURING RING	9E409297 SECURING RING	-	1	Enquire
9	9E409144	CYLINDER ROLLER BEARING	9E409144 CYLINDER ROLLER BEARING	-	1	Enquire
10	1V409380	THRUST PIECE	1V409380 THRUST PIECE	-	1	Enquire
11	1V409379	PRESSURE SPRING	1V409379 PRESSURE SPRING	-	1	Enquire
12	4ML409355	FLANGED SHAFT	4ML409355 FLANGED SHAFT LEFT	-	-	Enquire
13	-	SHAFT OIL SEAL	SHAFT OIL SEAL INCLUDED IN REF.:- 22	-	-	Enquire
14	-	O-RING	O-RING INCLUDED IN REF.:- 22	-	-	Enquire
15	-	SHAFT OIL SEAL	SHAFT OIL SEAL INCLUDED IN REF.:- 22	-	-	Enquire
16	-	ADJUSTING WASHER	ADJUSTING WASHER NOT AVAILABLE - SEE ILLUSTRARION AND REF.:- 300-010,1	-	-	Enquire
17	-	PINION AND CROWN WHEEL	PINION AND CROWN WHEEL NOT AVAILABLE - SEE ILLUSTRATION AND REF.:- 300-010,1	-	-	Enquire
18	-	ADJUSTING WASHER	ADJUSTING WASHER NOT AVAILABLE - SEE ILLUSTRATION AND REF.:- 300-010,1	-	-	Enquire
19	-	SEAL BOLT WITH SEALING RING	SEAL BOLT WITH SEALING RING SEE ILLUSTRATION :- 325-000	-	-	Enquire
20	-	SEAL RING	SEAL RING NOT AVAILABLE - SEE ILLUSTRATION AND REF.:- 300-010,1	-	-	Enquire
21	-	CONVERTER	CONVERTER SEE ILLUSTRATION :- 325-000	-	-	Enquire
22	D5498111	SET OF GASKETS FOR FINAL DRIVE	D5498111 SET OF GASKETS FOR FINAL DRIVE	-	1	Enquire
23	-	HEXAGON SOCKET HEAD BOLT	HEXAGON SOCKET HEAD BOLT INCLUDED IN REF.:- 7,22	-	-	Enquire
24	-	BUNGS	BUNGS CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.:- 19	-	-	Enquire
