Front Wheel And Hub Carrier

Lamborghini Murcielago Roadster

Find Your Part

Lamborghini Murcielago Roadster - Front Wheel And Hub Carrier

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

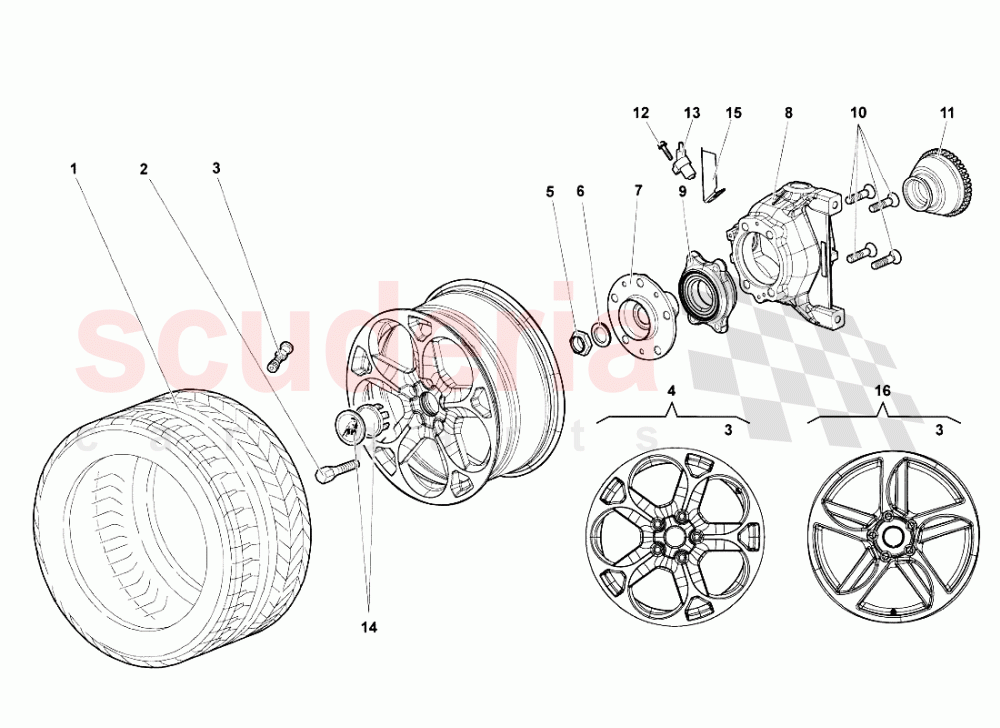

Front Wheel And Hub Carrier of Lamborghini Lamborghini Murcielago Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 R1470208
WINTER TYRES (INCLUDES 2 FRONT TYRES) 		$1,354.44 1
001 R1470004
STANDARD TYRES (INCLUDES 2 FRONT TYRES + 2 REAR TYRE) 		$4,244.19 1
001 R1470204
STANDARD TYRES (INCLUDES 2 FRONT TYRES) 		$843.68 1
001 R1470016
WINTER TYRES (INCLUDES 2 FRONT TYRES + 2 REAR TYRE) 		$3,691.07 1
001 R1470014
SPORT TYRES (INCLUDES 2 FRONT TYRES + 1 LH REAR TYRE + 1 RH REAR TYRE) 		$4,642.27 1
001 R1470206
SPORT TYRES (INCLUDES 2 FRONT TYRES) 		$1,804.18 1
002 WHT001161
STUD 		$34.14 10
003 410601361
VALVE 		$57.13 2
004 410601017D
FRONT WHEEL 		$3,756.72 2
004 410601017
RIM (HERCULES STANDARD) 		$3,756.72 2
005 410407338
NUT 		$455.66 2
006 410407631
WASHER 		$185.48 2
007 410407613
HUB 		$641.14 2
008 410407258A
RH HUB HOLDER (CERAMIC BRAKE) 		$2,076.60 1
008 410407257A
LH HUB HOLDER (CERAMIC BRAKE) 		$1,875.00 1
008 410407258
RH HUB HOLDER 		$2,076.60 1
008 410407257
LH HUB HOLDER 		$2,076.60 1
009 4E0407625F
DOUBLE (ANGLED) BALL BEARING WITH FLANGE
IN STOCK 		$205.48 2
010 WHT000237
BALL SCREW
IN STOCK 		$7.21 8
011 410614149
TONE WHEEL 		$3,353.51 2
012 N10285602
SCREW 		$1.43 (80.2% off) 2
013 410927801A
ABS SENSOR
IN STOCK 		$291.01 2
014 400601147
Moulded Hub Cap Silver Print 		$176.09 2
014 470601147B
COVER CAP
IN STOCK 		$92.87 2
014 410601147
MOLDING AND HUP-CAP - COLORED (HERMERA) 		$140.48 2
015 410614754
RIGHT HEAT SHIELD (CERAMIC BRAKE) 		$677.42 1
015 410614753
LEFT HEAT SHIELD (CERAMIC BRAKE) 		$677.42 1
016 410601017B
RIM (HERMERA SILVER) 		$3,340.03 2
