Front Brakes - Carboceramic of Lamborghini Lamborghini Murcielago Roadster

View All

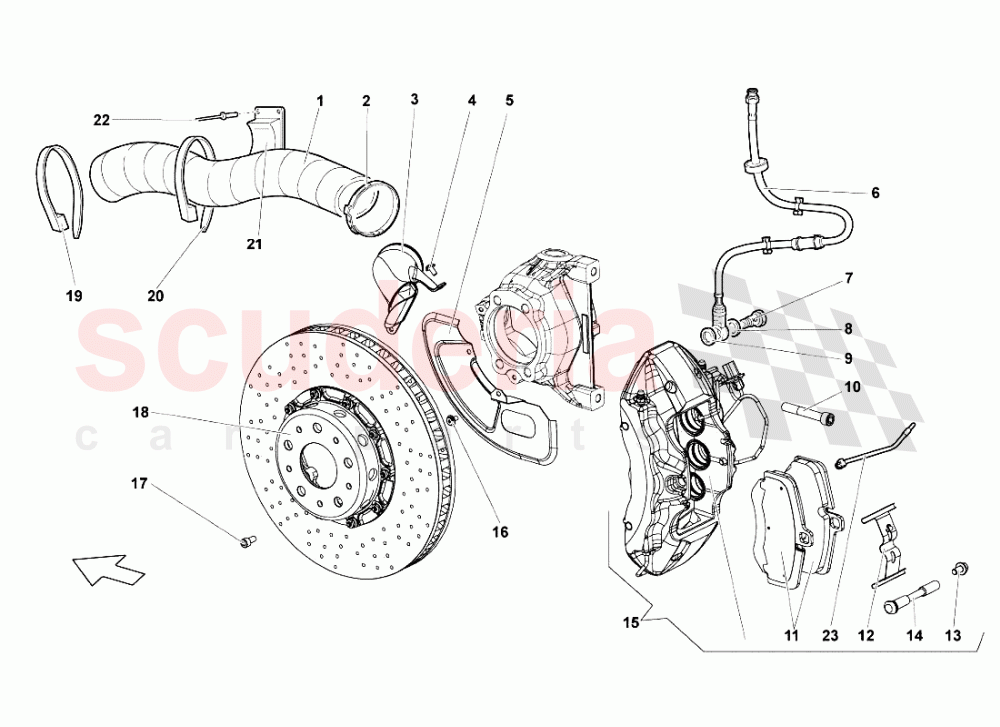

Lamborghini Murcielago Roadster - Front Brakes - Carboceramic

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	410611359	Front Brake Air Inlet Duct Pipe	410611359 Front Brake Air Inlet Duct Pipe	-	2	Enquire
002	8836001	CLAMP	8836001 CLAMP	-	2	Enquire
003	410615447	LH CONVEYOR	410615447 LH CONVEYOR	-	1	Enquire
003	410615448	RH CONVEYOR	410615448 RH CONVEYOR	-	1	Enquire
004	1Z0860505C	SCREW	1Z0860505C SCREW	-	4	Enquire
005	410407722A	RH PROTECTION	410407722A RH PROTECTION	-	1	Enquire
005	410407721A	LH PROTECTION	410407721A LH PROTECTION	-	1	Enquire
006	410611775	HOSE	410611775 HOSE	-	2	Enquire
007	WHT003303	SCREW WITH HOLE	WHT003303 SCREW WITH HOLE	-	2	Enquire
008	WHT001191	WASHER	WHT001191 WASHER	-	2	Enquire
009	WHT001191	WASHER	WHT001191 WASHER	-	2	Enquire
010	WHT001330	SCREW	WHT001330 SCREW	-	4	Enquire
011	4S0698151AA	1 SET OF BRAKE PADS FOR DISK BRAKE	4S0698151AA 1 SET OF BRAKE PADS FOR DISK BRAKE	-	1	Enquire
015	410615106AB	YELLOW RH FRONT BRAKE CALIPER	410615106AB YELLOW RH FRONT BRAKE CALIPER	-	1	Enquire
015	410615105L	LH FRONT BRAKE CALIPER - SILVER	410615105L LH FRONT BRAKE CALIPER - SILVER	-	1	Enquire
015	410615106L	RH FRONT BRAKE CALIPER - SILVER	410615106L RH FRONT BRAKE CALIPER - SILVER	-	1	Enquire
015	410615105J	BLACK LH FRONT BRAKE CALIPER	410615105J BLACK LH FRONT BRAKE CALIPER	-	1	Enquire
015	410615106J	BLACK RH FRONT BRAKE CALIPER	410615106J BLACK RH FRONT BRAKE CALIPER	-	1	Enquire
015	410615105AB	YELLOW LH FRONT BRAKE CALIPER	410615105AB YELLOW LH FRONT BRAKE CALIPER	-	1	Enquire
016	1Z0860505C	SCREW	1Z0860505C SCREW	-	4	Enquire
017	N10572401	SCREW	N10572401 SCREW	-	6	Enquire
018	410615301A	LH BRAKE DISC	410615301A LH BRAKE DISC	-	1	Enquire
018	410615302	RH BRAKE DISK	410615302 RH BRAKE DISK	-	1	Enquire
019	410616713	CLAMP	410616713 CLAMP	-	2	Enquire
020	410412177	CLAMP	410412177 CLAMP	-	2	Enquire
021	410805890	RIGHT SUPPORT	410805890 RIGHT SUPPORT	-	1	Enquire
021	410805889	LEFT SUPPORT	410805889 LEFT SUPPORT	-	1	Enquire
022	8953082	RIVET	8953082 RIVET	-	8	Enquire
023	400698137	BRAKE PAD WEAR SENSOR	400698137 BRAKE PAD WEAR SENSOR	-	2	Enquire
