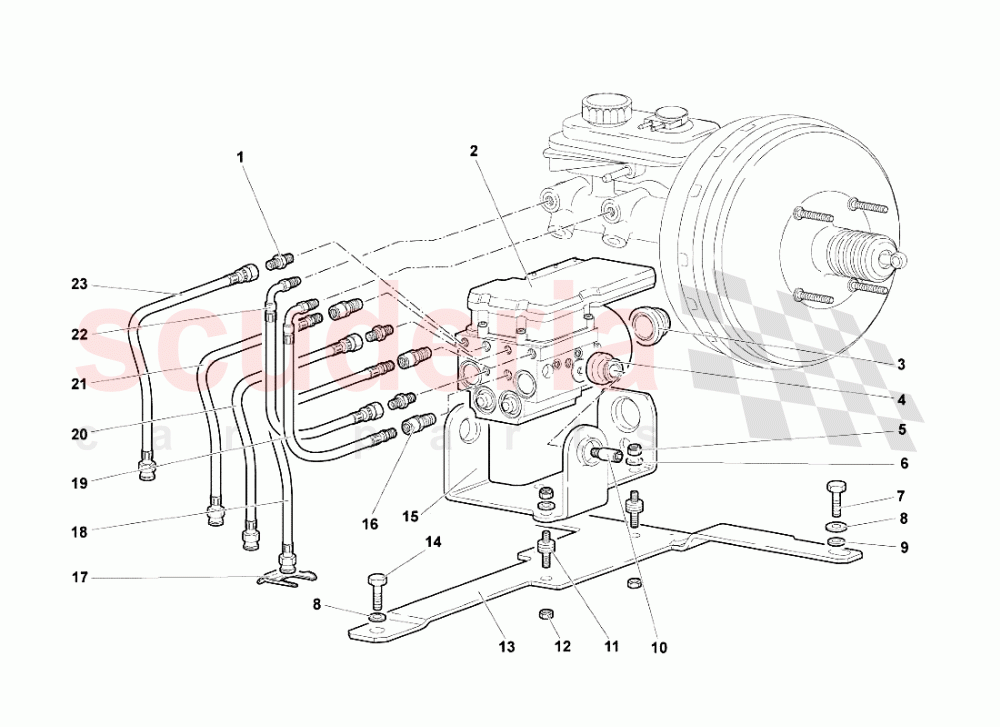

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	410614183	CONNECTOR	410614183 CONNECTOR	-	3	Enquire
002	410614517	ABS CONTROL UNIT	410614517 ABS CONTROL UNIT	-	1	Enquire
003	410614128	FLEXIBLE SUPPORT	410614128 FLEXIBLE SUPPORT	-	1	Enquire
004	410614125	FLEXIBLE SUPPORT	410614125 FLEXIBLE SUPPORT	-	2	Enquire
005	N01100637	NUT M6	N01100637 NUT M6	-	3	Enquire
006	WHT003213	WASHER	WHT003213 WASHER	-	3	Enquire
007	8700811	SCREW	8700811 SCREW	-	2	Enquire
008	N90179103	WASHER 18X8,4X2,5	N90179103 WASHER 18X8,4X2,5	-	3	Enquire
009	N0152785	WASHER	N0152785 WASHER	-	2	Enquire
010	410614187	JOURNAL	410614187 JOURNAL	-	2	Enquire
011	400972081A	FLEXIBLE SUPPORT	400972081A FLEXIBLE SUPPORT	-	3	Enquire
012	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	-	3	Enquire
013	413614138	SUPPORT	413614138 SUPPORT	-	1	Enquire
014	8100913	WASHER	8100913 WASHER	-	1	Enquire
015	410614143	BRACKET	410614143 BRACKET	-	1	Enquire
016	410614185	CONNECTOR	410614185 CONNECTOR	-	1	Enquire
017	400611949	PLATE	400611949 PLATE	-	1	Enquire
018	413611761	LEFT FRONT FLEXIBLE HOSE	413611761 LEFT FRONT FLEXIBLE HOSE	-	1	Enquire
019	413614739	HOSE	413614739 HOSE	-	1	Enquire
020	413611762	RIGHT FRONT FLEXIBLE HOSE	413611762 RIGHT FRONT FLEXIBLE HOSE	-	1	Enquire
021	413611763	LEFT REAR FLEXIBLE HOSE	413611763 LEFT REAR FLEXIBLE HOSE	-	1	Enquire
022	413614740	HOSE	413614740 HOSE	-	1	Enquire
023	413611764A	RIGHT REAR FLEXIBLE HOSE	413611764A RIGHT REAR FLEXIBLE HOSE	-	1	Enquire
