Rear Brakes

Lamborghini Murcielago Roadster

Find Your Part

Lamborghini Murcielago Roadster - Rear Brakes

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

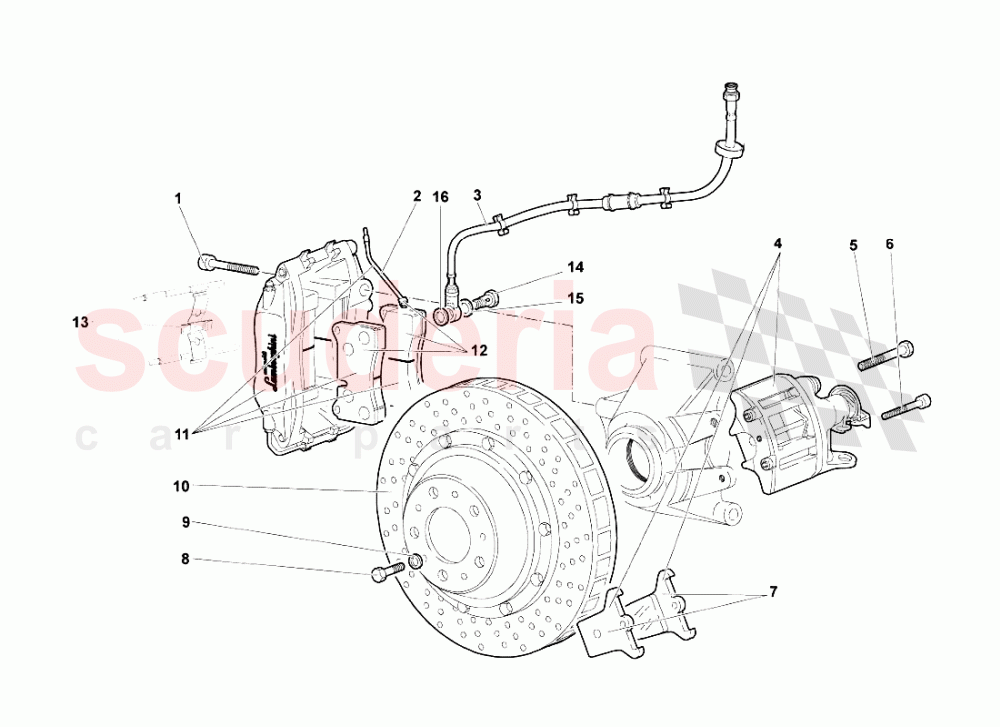

Rear Brakes of Lamborghini Lamborghini Murcielago Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 WHT001330
SCREW 		$33.74 4
003 400611775A
HOSE 		$157.95 2
004 410615403A
LH BRAKE CALIPER 		$782.27 1
004 410615404A
RH BRAKE CALIPER 		$782.27 1
005 WHT002636
SCREW 		$7.93 2
006 WHT003311
SCREW 		$22.92 2
007 410615115D
Hand Brake Pads
(4 pcs. required )
IN STOCK 		$51.20 4
008 N10572401
SCREW 		$0.98 (86.5% off) 6
009 WHT000771
WASHER
IN STOCK 		$1.19 6

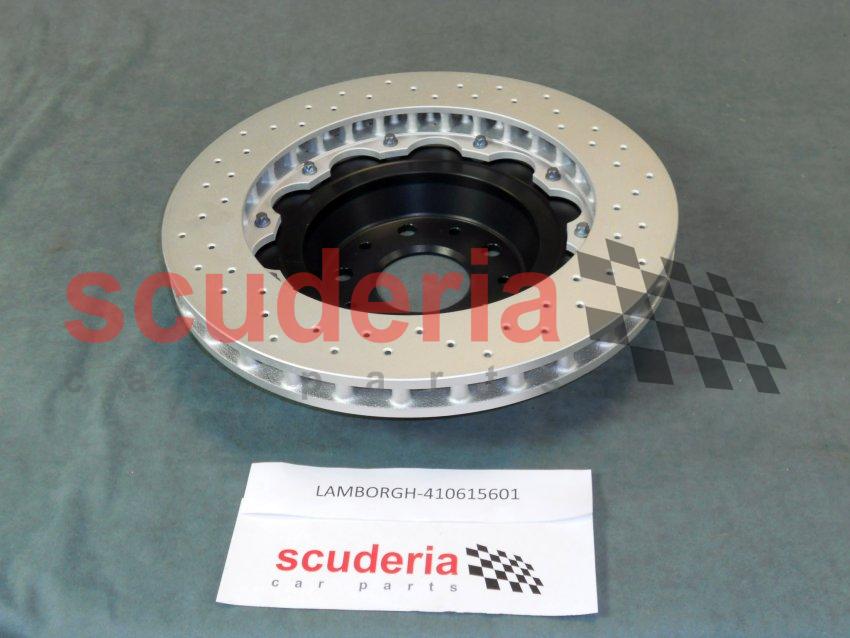

010 410615601
BRAKE DISK 		$2,116.93 2
011 410615406
BLACK RH REAR BRAKE CALIPER 		$1,491.93 1
011 410615405B
YELLOW LH REAR BRAKE CALIPER 		$1,565.85 1
011 410615406B
YELLOW RH REAR BRAKE CALIPER 		$1,565.85 1
011 410615406A
GREY RH REAR BRAKE CALIPER 		$1,639.78 1
011 410615405A
GREY LH REAR BRAKE CALIPER 		$1,639.78 1
011 410615405
BLACK LH REAR BRAKE CALIPER 		$1,491.93 1
012 400698451
BRAKE PAD SET
IN STOCK 		$775.32 1
013 400698135A
JOURNAL AND CLIP 		$58.95 2
014 WHT003303
SCREW WITH HOLE 		$12.84 2
015 WHT001191
WASHER
IN STOCK 		$0.37 (95% off) 2
016 WHT001191
WASHER
IN STOCK 		$0.37 (95% off) 2
