Secondary Air System of Lamborghini Lamborghini Murcielago Roadster

View All

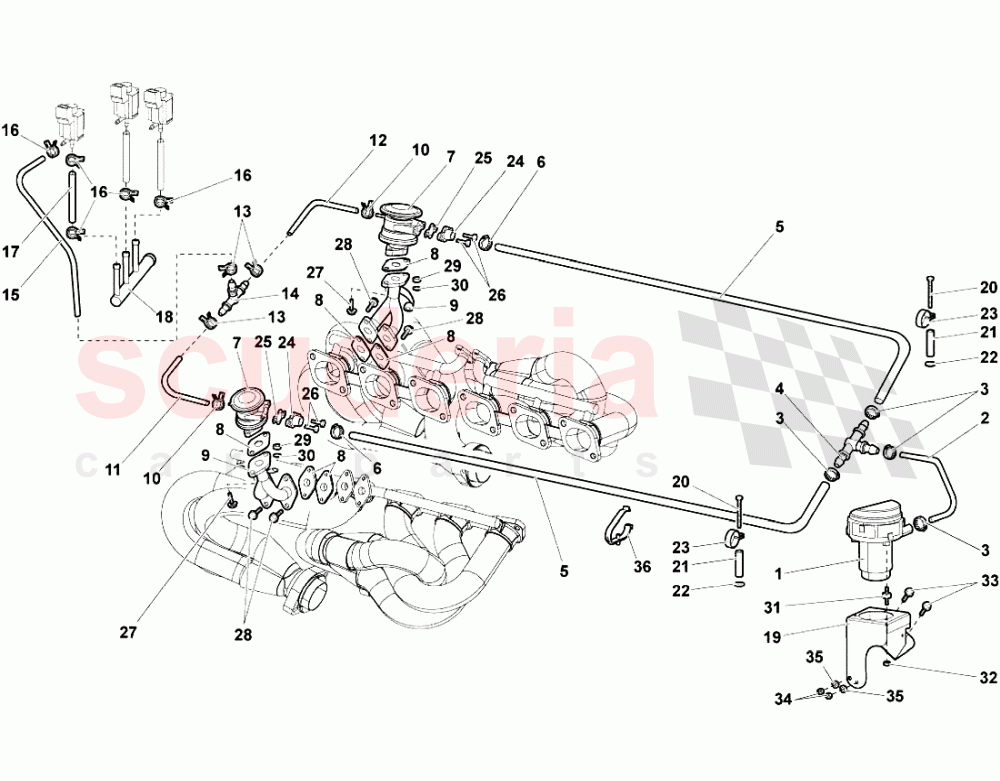

Lamborghini Murcielago Roadster - Secondary Air System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	78906601F	PUMP	78906601F PUMP	-	1	Enquire
002	7M131371B	PIPE	7M131371B PIPE	-	1	Enquire
003	N10255601	CLAMP	N10255601 CLAMP	-	4	Enquire
004	7M131598	CONNECTOR	7M131598 CONNECTOR	-	1	Enquire
005	7M131385	PIPE	7M131385 PIPE	-	2	Enquire
006	N10255601	CLAMP	N10255601 CLAMP	-	2	Enquire
007	78131102N	PNEUMATIC VALVE	78131102N PNEUMATIC VALVE	-	2	Enquire
008	7L131354	GASKET	7L131354 GASKET	-	6	Enquire
009	7M131381	CONNECTOR	7M131381 CONNECTOR	-	2	Enquire
010	8830122	CLAMP	8830122 CLAMP	-	2	Enquire
011	7M131375	PIPE	7M131375 PIPE	-	1	Enquire
012	7M131377	PIPE	7M131377 PIPE	-	1	Enquire
013	8830122	CLAMP	8830122 CLAMP	-	1	Enquire
014	7L133579	T-PIECE	7L133579 T-PIECE	-	1	Enquire
015	7M131493	PIPE	7M131493 PIPE	-	1	Enquire
016	8830122	CLAMP	8830122 CLAMP	-	1	Enquire
017	7M131492	PIPE	7M131492 PIPE	-	1	Enquire
018	7M131585A	CONNECTOR	7M131585A CONNECTOR	-	1	Enquire
019	418131035	BRACKET	418131035 BRACKET	-	1	Enquire
020	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT	-	2	Enquire
021	400972895	SPACER	400972895 SPACER	-	2	Enquire
022	WHT001197A	WASHER	WHT001197A WASHER	-	2	Enquire
023	8832005	CLAMP	8832005 CLAMP	-	2	Enquire
024	7L131585	PIPE FITTING	7L131585 PIPE FITTING	-	2	Enquire
025	7L131358	GASKET	7L131358 GASKET	-	2	Enquire
026	N10338901	SCREW	N10338901 SCREW	-	4	Enquire
027	N10338901	SCREW	N10338901 SCREW	-	4	Enquire
028	N10338901	SCREW	N10338901 SCREW	-	8	Enquire
029	N01118312	HEXAGON NUT, SELF-LOCKING	N01118312 HEXAGON NUT, SELF-LOCKING	-	2	Enquire
030	8400606	WASHER	8400606 WASHER	-	2	Enquire
031	400972081A	FLEXIBLE SUPPORT	400972081A FLEXIBLE SUPPORT	-	3	Enquire
032	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	-	3	Enquire
033	8100913	WASHER	8100913 WASHER	-	2	Enquire
034	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	-	2	Enquire
035	WHT002961	WASHER	WHT002961 WASHER	-	2	Enquire
036	8834502	CLAMP	8834502 CLAMP	-	1	Enquire
