Auxiliary Frame of Lamborghini Lamborghini Murcielago Roadster

View All

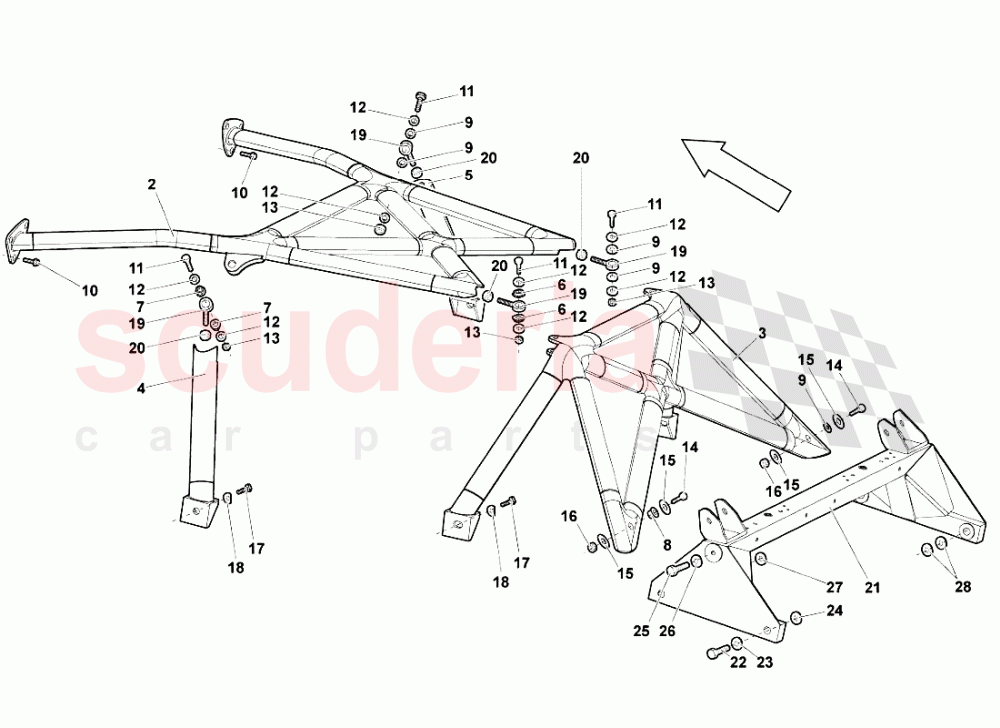

Lamborghini Murcielago Roadster - Auxiliary Frame

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
002	417825349A	STEEL FRAME UPPER ELEMENT	417825349A STEEL FRAME UPPER ELEMENT	$1,740.59	1
002	417825349B	UPPER ELEMENT OF CARBON FRAME	417825349B UPPER ELEMENT OF CARBON FRAME	$15,645.12	1
003	417825350C	STEEL FRAME LOWER ELEMENT	417825350C STEEL FRAME LOWER ELEMENT	$1,841.41	1
003	417825350B	REAR ELEMENT OF CARBON FRAME	417825350B REAR ELEMENT OF CARBON FRAME	$14,516.07	1
004	417825431A	LEFT ARM OF STEEL FRAME	417825431A LEFT ARM OF STEEL FRAME	$166.67	1
004	417825431B	LEFT ARM OF CARBON FRAME	417825431B LEFT ARM OF CARBON FRAME	$3,077.96	1
005	417825432B	RIGHT ARM OF CARBON FRAME	417825432B RIGHT ARM OF CARBON FRAME	$3,077.96	1
005	417825432A	RIGHT ARM OF STEEL FRAME	417825432A RIGHT ARM OF STEEL FRAME	$166.67	1
006	417810250	BUSHING (FOR CARBON FRAME)	417810250 BUSHING (FOR CARBON FRAME)	$68.02	4
007	417810249	BUSHING (FOR CARBON FRAME)	417810249 BUSHING (FOR CARBON FRAME)	$63.32	4
008	417813455	BUSHING (FOR CARBON FRAME)	417813455 BUSHING (FOR CARBON FRAME)	$63.32	4
009	41016911	1.5 MM SHIM (FOR STEEL FRAME)	41016911 1.5 MM SHIM (FOR STEEL FRAME)	$0.83 MSRP: ~~7.26~~ (88.6% off)	10
009	41016930	0.5 MM SHIM (FOR STEEL FRAME)	41016930 0.5 MM SHIM (FOR STEEL FRAME)	$0.48 MSRP: ~~7.33~~ (93.5% off)	4
009	41016912	WASHER	41016912 WASHER	$0.61 MSRP: ~~7.30~~ (91.6% off)	10
010	N10049309	SCREW	N10049309 SCREW	-	6	Enquire
011	41016910	SCREW	41016910 SCREW	$4.37 MSRP: ~~7.20~~ (39.3% off)	4
012	41016912	WASHER	41016912 WASHER	$0.61 MSRP: ~~7.30~~ (91.6% off)	8
013	41017007	NUT	41017007 NUT	$3.11	4
014	41016975	SCREW	41016975 SCREW	$1.26 MSRP: ~~7.19~~ (82.5% off)	2
015	41016912	WASHER	41016912 WASHER	$0.61 MSRP: ~~7.30~~ (91.6% off)	4
016	41017007	NUT	41017007 NUT	$3.11	2
017	N90166802	SCREW	N90166802 SCREW	$3.37	4
018	410810368	WASHER (FOR CARBON FRAME)	410810368 WASHER (FOR CARBON FRAME)	$30.59	4
019	417801931A	BALL JOINT	417801931A BALL JOINT	$264.79	4
020	8201035	NUT	8201035 NUT	$1.32 MSRP: ~~7.13~~ (81.5% off)	4
021	417813235	MOBILE REAR CROSS MEMBER	417813235 MOBILE REAR CROSS MEMBER	$752.69	1
022	N01034518	SCREW M8X45	N01034518 SCREW M8X45	$6.00	4
023	N90840802	WASHER	N90840802 WASHER	$0.40 MSRP: ~~7.33~~ (94.5% off)	4
024	8410820	WASHER	8410820 WASHER	$0.19 MSRP: ~~7.37~~ (97.4% off)	4
025	N0147519	SCREW M8X50	N0147519 SCREW M8X50	$12.84	2
026	N90840802	WASHER	N90840802 WASHER	$0.40 MSRP: ~~7.33~~ (94.5% off)	2
027	8410820	WASHER	8410820 WASHER	$0.19 MSRP: ~~7.37~~ (97.4% off)	2
028	400407742	2.0 MM SHIM	400407742 2.0 MM SHIM	$4.64	24
028	400407739	1.0 MM SHIM	400407739 1.0 MM SHIM	$3.55	24
028	400407740	1.5 MM SHIM	400407740 1.5 MM SHIM	$4.06	24
028	400407749	0.5 MM SHIM	400407749 0.5 MM SHIM	$3.16	24
