Lamborghini Murcielago Roadster - Timing System

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

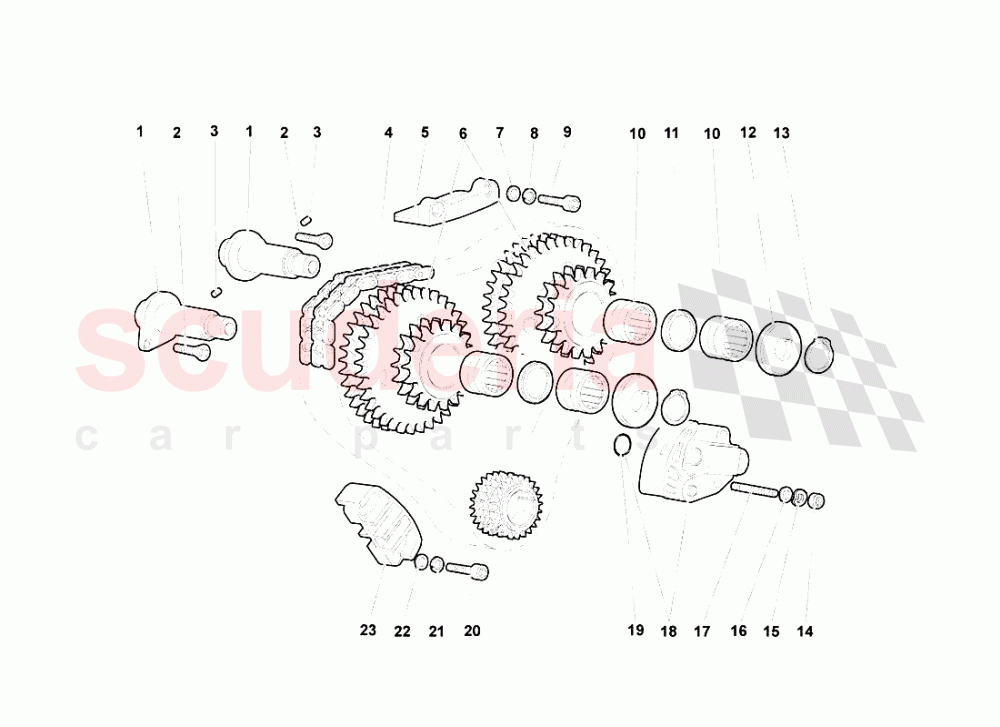

Timing System of Lamborghini Lamborghini Murcielago Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 7M109225
JOURNAL 		$1,314.52 2
002 WHT003068
COUNTERSUNK BOLT
IN STOCK 		$1.43 (80.1% off) 2
003 WHT003082
DOWEL 		$0.77 (89.4% off) 2
004 7M109229
LOWER TIMING CHAIN 		$140.48 1
005 7M109201
Guide
IN STOCK 		$72.33 1
006 7M109569
GEAR 		$1,713.73 2
007 WHT003543
WASHER 		$12.03 2
008 8410820
WASHER 		$0.19 (97.4% off) 2
009 WHT003072
SCREW 		$6.06 2
010 410109403
BEARING 		$392.49 4
011 7M109135
SPACER 		$216.41 2
012 7M109163
WASHER 		$81.86 2
013 WHT002646
RETAINING RING
IN STOCK 		$1.08 (85% off) 2
014 N01100637
NUT M6
IN STOCK 		$0.33 (95.5% off) 2
015 WHT001197A
WASHER
IN STOCK 		$0.30 2
016 N01152427
WASHER
IN STOCK 		$0.28 2
017 8300660
STUD BOLT 		$14.92 2
018 7M109077
CHAIN TIGHTENER WITH SEAL RING 		$866.96 1
019 WHT003060
SEAL RING
IN STOCK 		$2.23 (68.8% off) 1
020 WHT003071
SCREW 		$6.86 2
021 8410820
WASHER 		$0.19 (97.4% off) 2
022 WHT002962
WASHER 14X8.4X1.5
IN STOCK 		$0.33 (95.5% off) 2
023 7M109203
Guide
IN STOCK 		$2,029.56 1
