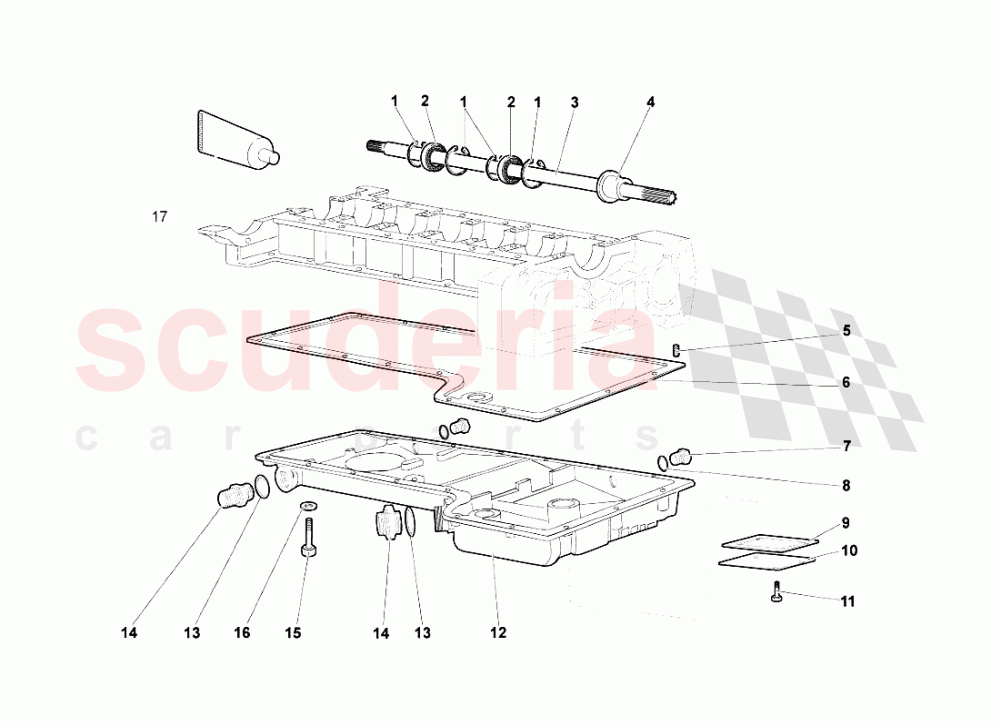

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	8575501	RETAINING RING	8575501 RETAINING RING	$1.32 MSRP: ~~7.13~~ (81.5% off)	2
002	410103520	BEARING	410103520 BEARING	$69.92	1
003	410521311	PROPELLER SHAFT	410521311 PROPELLER SHAFT	$7,681.42	1
004	7M103498	PLUG	7M103498 PLUG	$185.48	1
005	WHT002941	SCREW M6X1X10	WHT002941 SCREW M6X1X10	$0.97 MSRP: ~~7.24~~ (86.6% off)	1
006	7M103609	GASKET IN STOCK	7M103609 GASKET IN STOCK	$223.53	1
007	N91155901	SEALING SCREW PLUG M16 X 1.5 IN STOCK	N91155901 SEALING SCREW PLUG M16 X 1.5 IN STOCK	$13.68	2
008	N0138481	WASHER IN STOCK	N0138481 WASHER IN STOCK	$0.70 MSRP: ~~7.28~~ (90.4% off)	2
009	7M103610	GASKET IN STOCK	7M103610 GASKET IN STOCK	$27.10	1
010	7M103525	COVER	7M103525 COVER	$70.57	1
011	WHT002957	SCREW 5X12 IN STOCK	WHT002957 SCREW 5X12 IN STOCK	$28.90	4
012	7M103601	ENGINE OIL PAN	7M103601 ENGINE OIL PAN	$3,252.67	1
013	WHT000674	WASHER IN STOCK	WHT000674 WASHER IN STOCK	$2.69 MSRP: ~~7.04~~ (61.8% off)	2
014	400115707	CONNECTOR	400115707 CONNECTOR	$34.14	2
015	N01022217	HEXAGON HEAD BOLT	N01022217 HEXAGON HEAD BOLT	$7.13	17
016	WHT001197A	WASHER IN STOCK	WHT001197A WASHER IN STOCK	$0.30	19
017	900000130	GREASE	900000130 GREASE	$39.88	1
