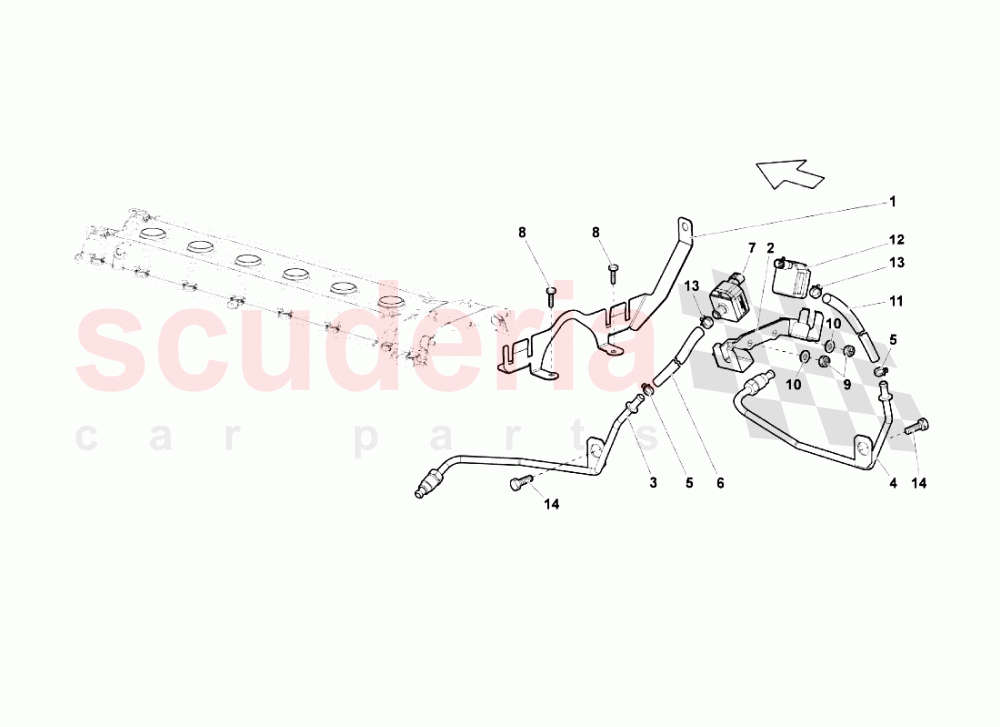

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	410905357A	BRACKET	410905357A BRACKET	$64.91	1
002	410906269	SUPPORT	410906269 SUPPORT	$137.10	1
003	7M906387C	RH PIPE	7M906387C RH PIPE	$266.14	1
004	7M906389D	LH PIPE	7M906389D LH PIPE	$1,170.70	1
005	N90686701	SPRING BAND CLAMP	N90686701 SPRING BAND CLAMP	$1.89 MSRP: ~~7.11~~ (73.4% off)	2
006	7M131893A	PIPE	7M131893A PIPE	$187.50	1
007	7L906261A	SENSOR	7L906261A SENSOR	$1,364.25	1
008	N10454101	SCREW M6X16	N10454101 SCREW M6X16	-	2	Enquire
009	N1118312	NUT M6	N1118312 NUT M6	-	2	Enquire
010	N1152427	WASHER	N1152427 WASHER	-	2	Enquire
011	7M131893A	PIPE	7M131893A PIPE	$187.50	1
012	7L906261A	SENSOR	7L906261A SENSOR	$1,364.25	1
013	400251189D	CLAMP	400251189D CLAMP	$10.76	2
014	N10524202	SCREW M6X16	N10524202 SCREW M6X16	$1.22 MSRP: ~~7.23~~ (83.1% off)	2
