Oil System Radiator of Lamborghini Lamborghini Murcielago LP670

View All

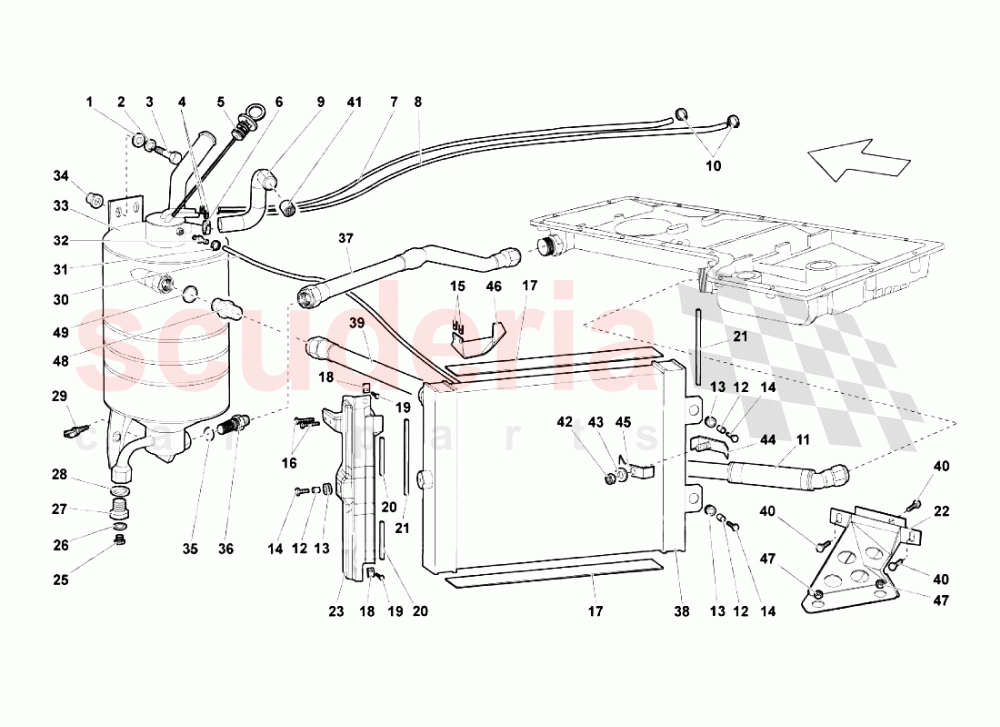

Lamborghini Murcielago LP670 - Oil System Radiator

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N10510291	WASHER	N10510291 WASHER	-	3	Enquire
002	N10510292	WASHER	N10510292 WASHER	-	3	Enquire
003	N10510293	SCREW M8X25	N10510293 SCREW M8X25	-	3	Enquire
004	N10510294	CLAMP	N10510294 CLAMP	-	2	Enquire
005	7M115311D	PLUG	7M115311D PLUG	$1,834.69	1
006	N10510296	CLAMP	N10510296 CLAMP	-	2	Enquire
007	7M115278F	PIPE (LEFT CYLINDER	7M115278F PIPE (LEFT CYLINDER	$35.95	1
008	7M115278E	PIPE (RIGHT CYLINDER	7M115278E PIPE (RIGHT CYLINDER	$45.21	1
009	7M115657	PIPE	7M115657 PIPE	$147.86	1
010	400251189E	CLAMP	400251189E CLAMP	$14.38	2
011	7M117413B	PIPE	7M117413B PIPE	$2,506.74	1
012	400121129A	SPACER HOLDER	400121129A SPACER HOLDER	$15.47	3
013	7L121585	RUBBER BUSHING	7L121585 RUBBER BUSHING	$18.96	3
014	N10510304	SCREW M6X20	N10510304 SCREW M6X20	-	3	Enquire
015	N10510305	CLIP	N10510305 CLIP	-	2	Enquire
016	N10510306	SCREW	N10510306 SCREW	-	2	Enquire
017	7M117025	GASKET	7M117025 GASKET	$11.83	2
018	N10510308	CLIP	N10510308 CLIP	-	2	Enquire
019	N10510309	SCREW M6X16	N10510309 SCREW M6X16	-	2	Enquire
020	410853669	GASKET	410853669 GASKET	$9.08	2
021	7M117070	GASKET	7M117070 GASKET	$11.17	2
022	410117095A	BRACKET	410117095A BRACKET	$592.77	1
023	410853343	BRACKET	410853343 BRACKET	$602.16	1
025	N10510314	PLUG	N10510314 PLUG	-	1	Enquire
026	N10510315	WASHER	N10510315 WASHER	-	1	Enquire
027	7M115707A	CONNECTOR	7M115707A CONNECTOR	$126.35	1
028	WHT003050	WASHER	WHT003050 WASHER	$6.77	1
029	7L919501A	Water Temperature Sensor	7L919501A Water Temperature Sensor	$359.56	1
030	7M115655	PIPE	7M115655 PIPE	$154.58	1
031	N91054301	CLAMP	N91054301 CLAMP	$5.85	2
032	7M115458	CONNECTOR	7M115458 CONNECTOR	$51.88	1
033	7M115373	OIL TANK	7M115373 OIL TANK	$2,170.69	1
034	410814939	BUSHING	410814939 BUSHING	$8.35	3
035	WHT003309	WASHER	WHT003309 WASHER	$30.67	1
036	7M115157	CONNECTOR	7M115157 CONNECTOR	$3,004.05	1
037	7M115688A	PIPE	7M115688A PIPE	$1,095.44	1
038	7M117021A	OIL RADIATOR	7M117021A OIL RADIATOR	$4,112.88	1
039	7M115689A	PIPE	7M115689A PIPE	$904.58	1
040	N10005207	SCREW M8X18	N10005207 SCREW M8X18	$7.53	3
041	7L129793	FLAME TRAP	7L129793 FLAME TRAP	$116.14	1
042	N1118312	NUT M6	N1118312 NUT M6	-	1	Enquire
043	WHT003407	WASHER	WHT003407 WASHER	$0.53 MSRP: ~~7.31~~ (92.7% off)	1
044	7M115633A	BRACKET	7M115633A BRACKET	$29.11	1
045	7M115634A	BRACKET	7M115634A BRACKET	$25.21	1
046	410853595	BRACKET	410853595 BRACKET	$76.08	1
047	WHT003112	NUT M5	WHT003112 NUT M5	$0.70	2
048	400115707	CONNECTOR	400115707 CONNECTOR	$34.14	1
049	WHT000674	WASHER	WHT000674 WASHER	$2.69 MSRP: ~~7.04~~ (61.8% off)	1
