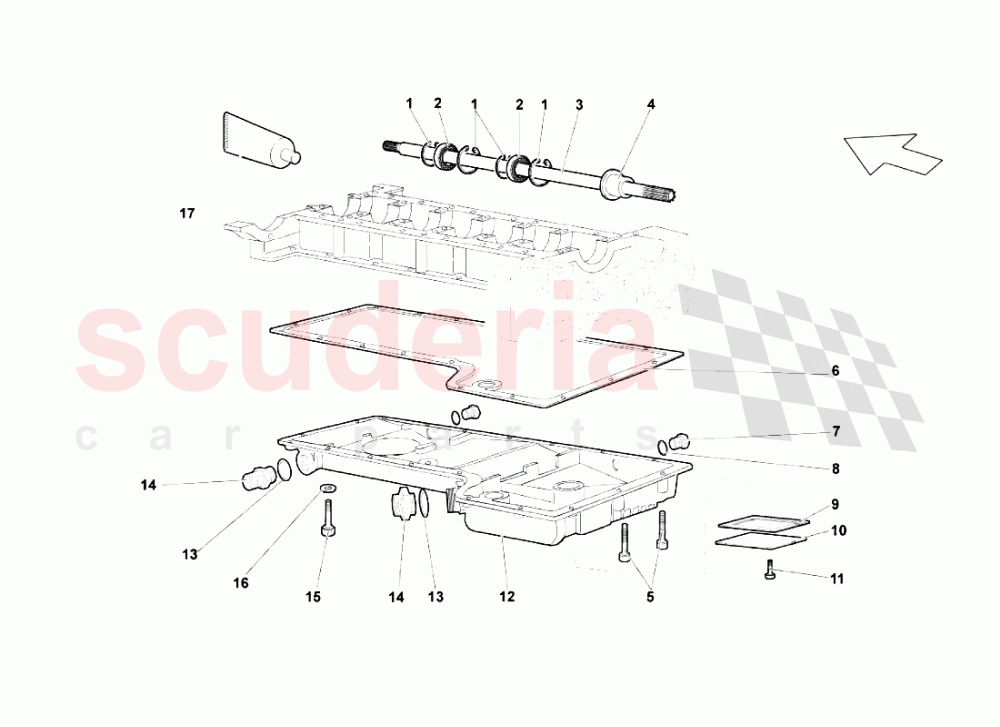

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N122861	RETAINING RING	N122861 RETAINING RING	-	2	Enquire
002	410103520	BEARING	410103520 BEARING	$69.92	1
003	410521311	PROPELLER SHAFT	410521311 PROPELLER SHAFT	$7,681.42	1
004	7M103498	PLUG	7M103498 PLUG	$185.48	1
005	N10554005	ROUND HD. SCREW	N10554005 ROUND HD. SCREW	$2.69	2
006	7M103609	GASKET	7M103609 GASKET	$223.53	1
007	N91155901	SEALING SCREW PLUG M16 X 1.5	N91155901 SEALING SCREW PLUG M16 X 1.5	$13.68	2
008	N138481	WASHER	N138481 WASHER	-	2	Enquire
009	7M103610	GASKET	7M103610 GASKET	$27.10	1
010	7M103525	COVER	7M103525 COVER	$70.57	1
011	WHT002957	SCREW 5X12	WHT002957 SCREW 5X12	$28.90	4
012	7M103601	ENGINE OIL PAN	7M103601 ENGINE OIL PAN	$3,252.67	1
013	WHT000674	WASHER	WHT000674 WASHER	$2.69 MSRP: ~~7.04~~ (61.8% off)	2
014	400115707	CONNECTOR	400115707 CONNECTOR	$34.14	2
015	N91071701	HEXAGON SOCKET FLAT HEAD BOLT	N91071701 HEXAGON SOCKET FLAT HEAD BOLT	$1.68 MSRP: ~~7.22~~ (76.7% off)	17
016	WHT001197A	WASHER	WHT001197A WASHER	$0.30	19
017	900000130	GREASE	900000130 GREASE	$39.88	1
