Crankcase And Lower Mount of Lamborghini Lamborghini Murcielago LP670

View All

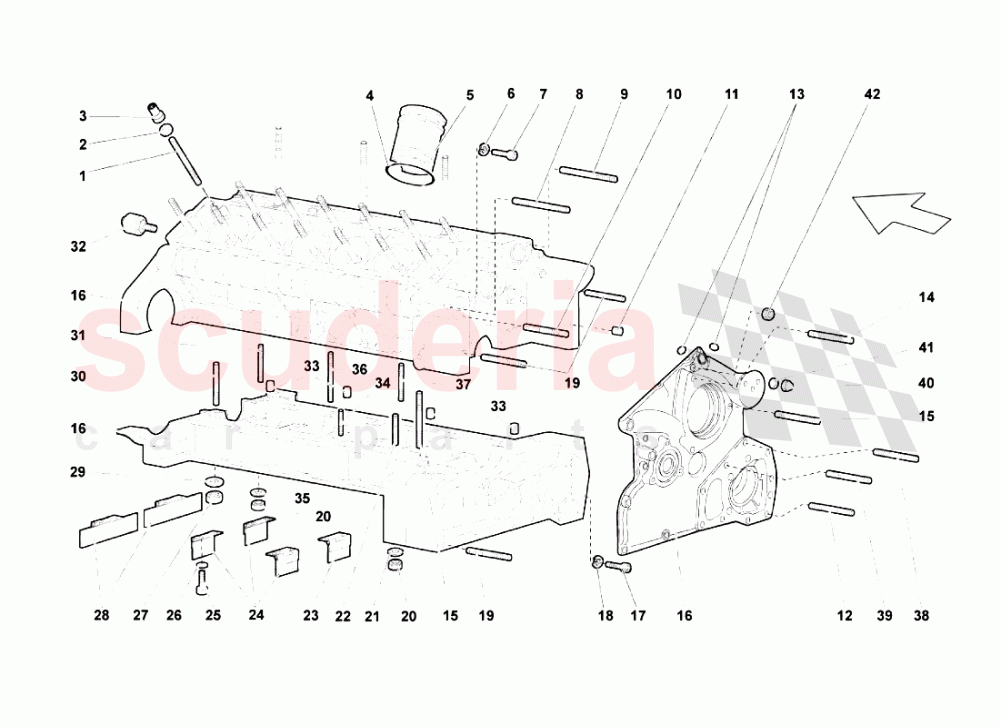

Lamborghini Murcielago LP670 - Crankcase And Lower Mount

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	7M103136A	STUD BOLT MJ10X118	7M103136A STUD BOLT MJ10X118	$223.81	28
002	WHT002599	WASHER	WHT002599 WASHER	$115.34	28
003	7M103448B	NUT M10	7M103448B NUT M10	$85.50	28
004	WHT003085	SEAL RING	WHT003085 SEAL RING	$4.37 MSRP: ~~7.06~~ (38.1% off)	12
005	7M103321	DIAMETER CYLINDER LINER	7M103321 DIAMETER CYLINDER LINER	$728.50	12
006	N1152427	WASHER	N1152427 WASHER	-	2	Enquire
007	N10647601	SCREW M6X45	N10647601 SCREW M6X45	$18.96	2
008	WHT002944	STUD BOLT M8X50	WHT002944 STUD BOLT M8X50	$16.60	2
009	WHT002944	STUD BOLT M8X50	WHT002944 STUD BOLT M8X50	$16.60	2
010	N444416	4 STUD BOLT	N444416 4 STUD BOLT	-	2	Enquire
011	WHT003098	DOWEL	WHT003098 DOWEL	$29.77	2
012	WHT003037	STUD BOLT M10X65	WHT003037 STUD BOLT M10X65	$34.48	7
013	WHT003522	SEAL RING	WHT003522 SEAL RING	$5.51	2
014	WHT003030	STUD BOLT M8X90	WHT003030 STUD BOLT M8X90	$12.03	1
015	WHT003028	THREADED PIN	WHT003028 THREADED PIN	$22.30	2
016	400537001	ENGINE BLOCK	400537001 ENGINE BLOCK	$25,171.41	1
017	N91005902	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N91005902 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$3.37	4
018	WHT000771	WASHER IN STOCK	WHT000771 WASHER IN STOCK	$1.19	4
019	WHT003032	STUD BOLT M8X35	WHT003032 STUD BOLT M8X35	$11.63	5
020	N1100845	NUT M8X1,25X6,5	N1100845 NUT M8X1,25X6,5	-	14	Enquire
021	WHT000771	WASHER IN STOCK	WHT000771 WASHER IN STOCK	$1.19	14
022	WHT003166	STUD BOLT M8X40	WHT003166 STUD BOLT M8X40	$50.26	3
023	7M103729	PANEL	7M103729 PANEL	$46.92	1
024	7M103730	PANEL	7M103730 PANEL	$44.10	3
025	N90455205	SCREW M4X10 IN STOCK	N90455205 SCREW M4X10 IN STOCK	$0.74 MSRP: ~~7.24~~ (89.8% off)	12
026	WHT003052	WASHER 4,3 IN STOCK	WHT003052 WASHER 4,3 IN STOCK	$3.77 MSRP: ~~7.38~~ (48.9% off)	12
027	WHT003024	NUT	WHT003024 NUT	$261.43	14
028	7M103749	PANEL	7M103749 PANEL	$45.76	2
029	WHT003046	WASHER	WHT003046 WASHER	$115.84	14
030	WHT003038	STUD BOLT M12X110	WHT003038 STUD BOLT M12X110	$24.05	14
031	WHT003033	STUD BOLT M8X1,25X95	WHT003033 STUD BOLT M8X1,25X95	$16.40	13
032	7L919561B	Pressure Sensor IN STOCK	7L919561B Pressure Sensor IN STOCK	$892.68	1
033	WHT003097	DOWEL	WHT003097 DOWEL	$11.35	4
034	WHT003031	STUD BOLT	WHT003031 STUD BOLT	$9.61	9
035	WHT003043	WASHER	WHT003043 WASHER	$39.39	14
036	WHT003034	STUD BOLT M8X75	WHT003034 STUD BOLT M8X75	$18.33	1
037	WHT003029	STUD BOLT M8X75 IN STOCK	WHT003029 STUD BOLT M8X75 IN STOCK	$9.61	8
038	WHT003035	STUD BOLT M10X70	WHT003035 STUD BOLT M10X70	$13.59	1
039	WHT003036	STUD BOLT M10X40	WHT003036 STUD BOLT M10X40	$34.48	1
040	N1118410	NUT M8	N1118410 NUT M8	-	8	Enquire
041	WHT002962	WASHER 14X8.4X1.5 IN STOCK	WHT002962 WASHER 14X8.4X1.5 IN STOCK	$0.33 MSRP: ~~7.35~~ (95.5% off)	8
042	N1118410	NUT M8	N1118410 NUT M8	-	2	Enquire
