Find Your Part

REAR FENDER of Lamborghini Lamborghini Huracan LP610 Spyder

View All

Lamborghini Huracan LP610 Spyder - REAR FENDER

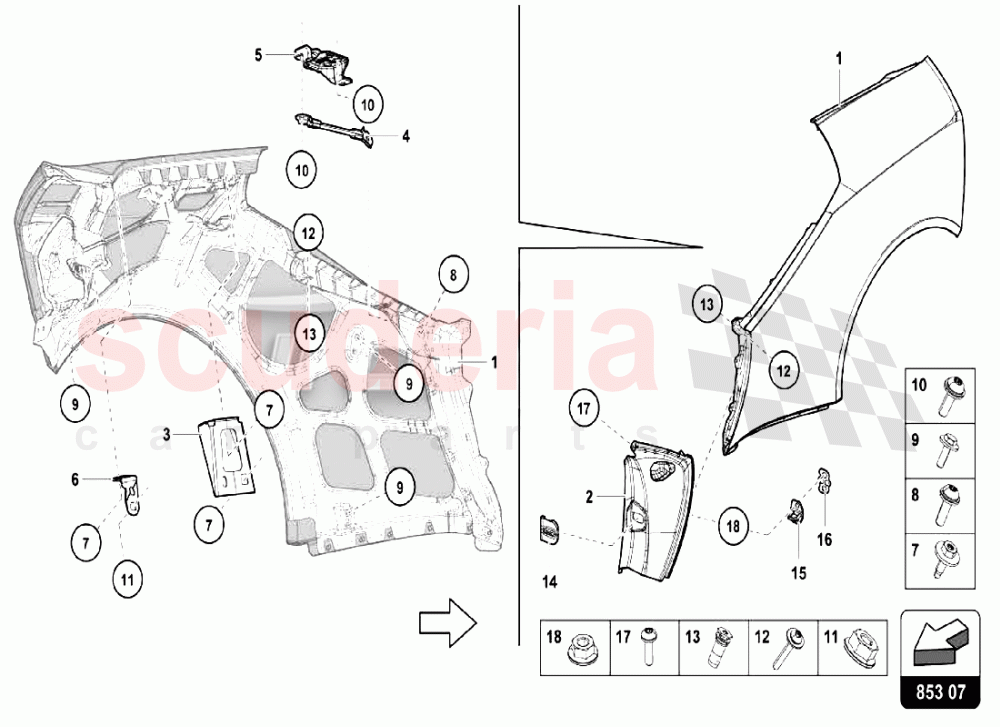

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	N01508210	HEXAGON COLLAR NUT	$1.96	To Order

Photo	Part No	Description	Price (each)	Stock
	N10442204	HEXAGON SOCKET OVAL HEAD BOLT (COMBI)	$2.04	To Order

Photo	Part No	Description	Price (each)	Stock
	8H0806221	COMPENSATING PIECE	$11.16	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0831713	SEAL	$10.49	To Order

Photo	Part No	Description	Price (each)	Stock
	8E0837033	LOCK STRIKER	$24.20	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0807239B	WASHER	$27.62	To Order

Photo	Part No	Description	Price (each)	Stock
	470853883A	SECURING BRACKET	$62.98	To Order

Photo	Part No	Description	Price (each)	Stock
	N91017401	COUNTERSUNK MULTI-POINT SOCKET HEAD BOLT	$1.68	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
01	4T7809601B	LEFT REAR FENDER ASSEMBLY (CONTACT YOUR AREA MANAGER)	4T7809601B LEFT REAR FENDER ASSEMBLY (CONTACT YOUR AREA MANAGER)	$10,322.54	1

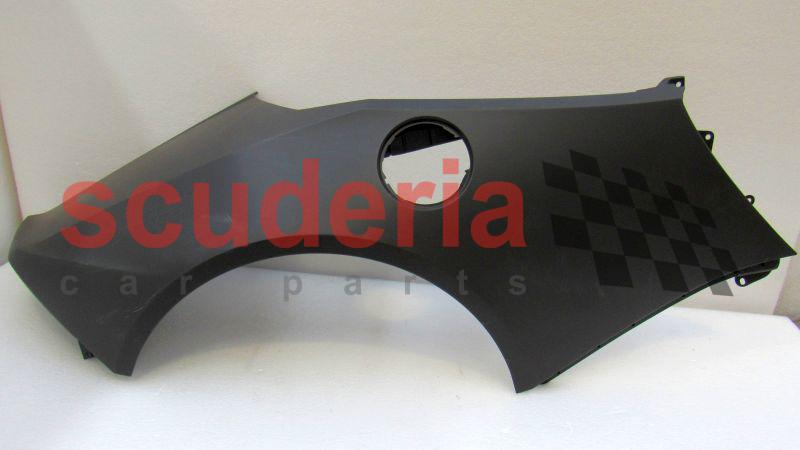

01	4T7809602C	RIGHT REAR FENDER ASSEMBLY (CONTACT YOUR AREA MANAGER)	4T7809602C RIGHT REAR FENDER ASSEMBLY (CONTACT YOUR AREA MANAGER)	$10,322.54	1
02	4T7853174A	TRIM	4T7853174A TRIM	$579.30	1
02	4T7853173	REFERENCE	4T7853173 REFERENCE	$637.08	1
03	4T7809075B	BRACKET	4T7809075B BRACKET	$45.32	2
04	4T7809821B	SUPPORT	4T7809821B SUPPORT	$143.82	1
04	4T7809822B	SUPPORT	4T7809822B SUPPORT	$143.82	1
05	4T7821129C	BRACKET FOR WHEEL HOUSING	4T7821129C BRACKET FOR WHEEL HOUSING	$61.36	1
05	4T7821130C	BRACKET FOR WHEEL HOUSING	4T7821130C BRACKET FOR WHEEL HOUSING	$61.36	1
06	4T0809465B	RETAINING PLATE	4T0809465B RETAINING PLATE	$13.64	1
06	4T0809466B	RETAINING PLATE	4T0809466B RETAINING PLATE	$13.64	1
07	N91034501	SCREW (M6X18)	N91034501 SCREW (M6X18)	$2.29	6
09	N10009209	HEXAGON HEAD BOLT (COMBI)	N10009209 HEXAGON HEAD BOLT (COMBI)	$0.92 MSRP: ~~7.28~~ (87.4% off)	16
11	N01508210	HEXAGON COLLAR NUT	N01508210 HEXAGON COLLAR NUT	$1.96	4
12	N10442204	HEXAGON SOCKET OVAL HEAD BOLT (COMBI)	N10442204 HEXAGON SOCKET OVAL HEAD BOLT (COMBI)	$2.04 MSRP: ~~7.14~~ (71.4% off)	4
13	8H0806221	COMPENSATING PIECE	8H0806221 COMPENSATING PIECE	$11.16	4
14	4T0831713	SEAL	4T0831713 SEAL	$10.49	2
15	8E0837033	LOCK STRIKER	8E0837033 LOCK STRIKER	$24.20	2
16	4T0807239B	WASHER	4T0807239B WASHER	$27.62	2
17	470853883A	SECURING BRACKET	470853883A SECURING BRACKET	$62.98	4
18	N91017401	COUNTERSUNK MULTI-POINT SOCKET HEAD BOLT	N91017401 COUNTERSUNK MULTI-POINT SOCKET HEAD BOLT	$1.68 MSRP: ~~7.19~~ (76.6% off)	2
