HEAT SHIELD of Lamborghini Lamborghini Huracan LP610 Spyder

View All

Lamborghini Huracan LP610 Spyder - HEAT SHIELD

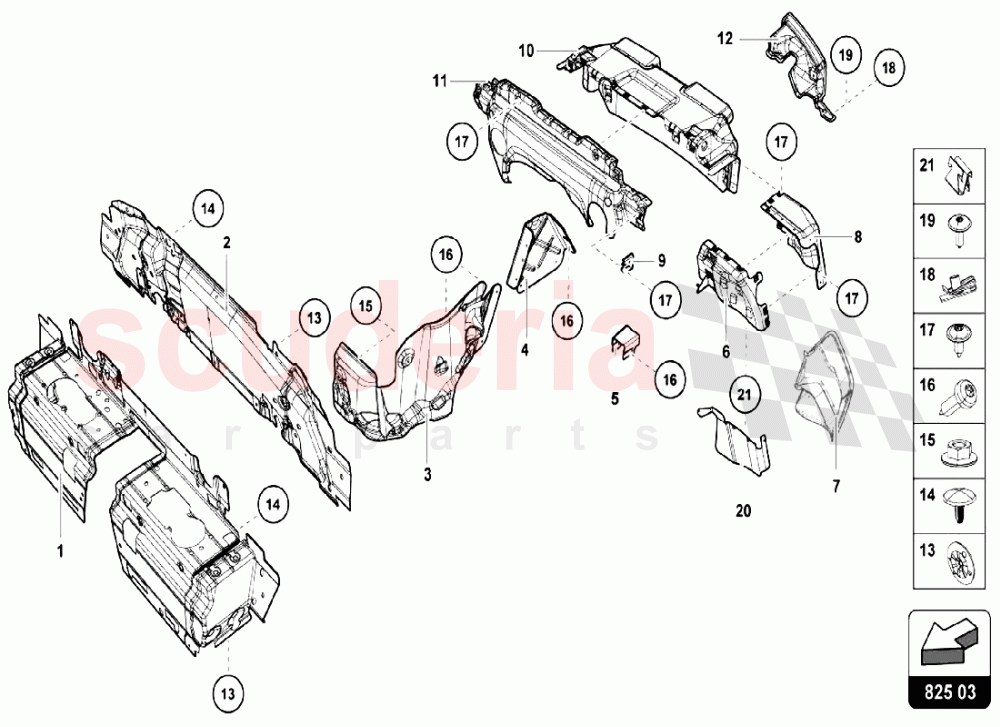

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4T0825709A	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0825613A	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0863777A	LH REAR LAMP PANEL	Enquire	To Order
	4T0863778A	RH REAR LAMP PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90335004	CLAMPING WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0805163	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90708803	SPEED NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT003841	FLAT ROUND HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90775001	HEXAGON SOCKET HEAD PANEL BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91195701	SPEED NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91042302	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0825648	RH PANEL	Enquire	To Order
	4T0825647	LH PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90323501	DOUBLE U-CLAMP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	4S0825249B	HEAT SHIELD	4S0825249B HEAT SHIELD	-	1	Enquire
02	4S7825237A	HEAT SHIELD	4S7825237A HEAT SHIELD	-	1	Enquire
03	4S0825731A	LH HEAT SHIELD	4S0825731A LH HEAT SHIELD	-	1	Enquire
03	4S0825733A	HEAT SHIELD	4S0825733A HEAT SHIELD	-	1	Enquire
04	4S0825742A	GUARD PLATE	4S0825742A GUARD PLATE	-	1	Enquire
04	4S0825741A	LH HEAT SHIELD	4S0825741A LH HEAT SHIELD	-	1	Enquire
05	4S0825708A	HEAT DEFLECTOR PLATE FOR BUMPER	4S0825708A HEAT DEFLECTOR PLATE FOR BUMPER	-	1	Enquire
05	4S0825707A	HEAT DEFLECTOR PLATE FOR BUMPER	4S0825707A HEAT DEFLECTOR PLATE FOR BUMPER	-	1	Enquire
06	4T0825645D	LH HEAT SHIELD	4T0825645D LH HEAT SHIELD	-	1	Enquire
06	4T0825646D	RH HEAT SHIELD	4T0825646D RH HEAT SHIELD	-	1	Enquire
08	4T0825716B	RH HEAT SHIELD	4T0825716B RH HEAT SHIELD	-	1	Enquire
08	4T0825715B	LH HEAT SHIELD	4T0825715B LH HEAT SHIELD	-	1	Enquire
09	4T0825221A	LH SUPPORT	4T0825221A LH SUPPORT	-	1	Enquire
09	4T0825222A	RH SUPPORT	4T0825222A RH SUPPORT	-	1	Enquire
10	4T0825709A	HEAT SHIELD	4T0825709A HEAT SHIELD use : 4T0825709C	-	1	Enquire
11	4S0825613A	HEAT SHIELD	4S0825613A HEAT SHIELD	-	1	Enquire
12	4T0863777A	LH REAR LAMP PANEL	4T0863777A LH REAR LAMP PANEL	-	1	Enquire
12	4T0863778A	RH REAR LAMP PANEL	4T0863778A RH REAR LAMP PANEL	-	1	Enquire
13	N90335004	CLAMPING WASHER	N90335004 CLAMPING WASHER	-	14	Enquire
14	4S0805163	CLIP	4S0805163 CLIP	-	10	Enquire
15	N90708803	SPEED NUT	N90708803 SPEED NUT	-	10	Enquire
16	WHT003841	FLAT ROUND HEAD BOLT	WHT003841 FLAT ROUND HEAD BOLT	-	30	Enquire
17	N90775001	HEXAGON SOCKET HEAD PANEL BOLT	N90775001 HEXAGON SOCKET HEAD PANEL BOLT	-	12	Enquire
18	N91195701	SPEED NUT	N91195701 SPEED NUT	-	10	Enquire
19	N91042302	OVAL HEXAGON SOCKET HEAD BOLT	N91042302 OVAL HEXAGON SOCKET HEAD BOLT	-	10	Enquire
20	4T0825648	RH PANEL	4T0825648 RH PANEL	-	1	Enquire
20	4T0825647	LH PANEL	4T0825647 LH PANEL	-	1	Enquire
21	N90323501	DOUBLE U-CLAMP	N90323501 DOUBLE U-CLAMP	-	1	Enquire
