FRONT FRAME INNER ELEMENTS of Lamborghini Lamborghini Huracan LP610 Spyder

View All

Lamborghini Huracan LP610 Spyder - FRONT FRAME INNER ELEMENTS

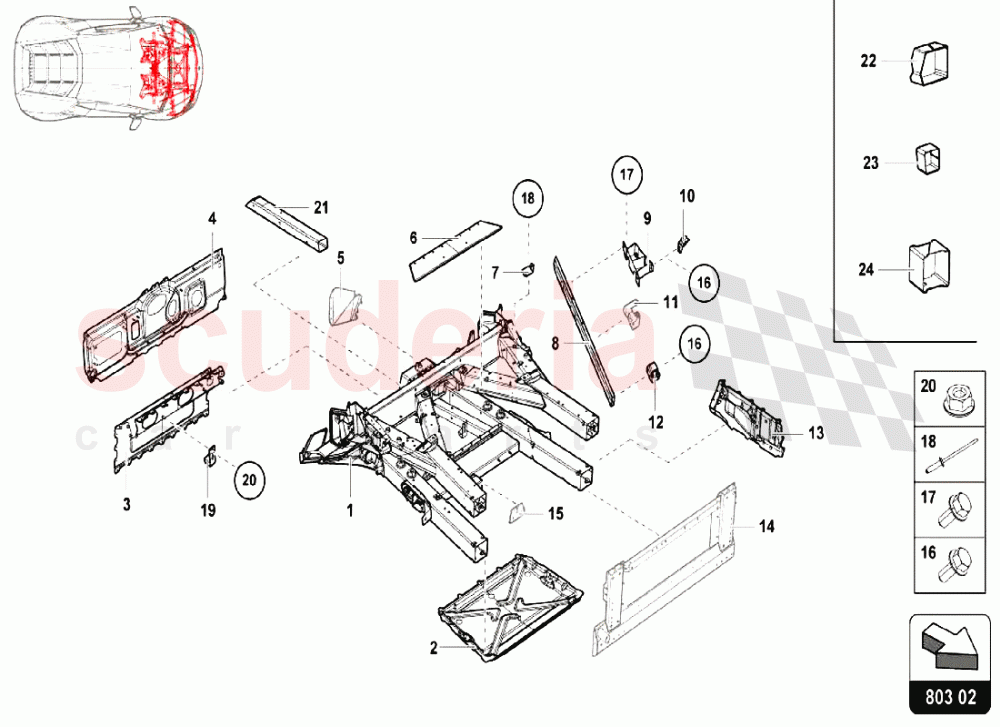

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4T0805816C	RETAINING PLATE	Enquire	To Order
	4T0805815C	RETAINING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0806812B	BRACKET	Enquire	To Order
	4T0806811B	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0805063C	COVER PLATE	Enquire	To Order
	4T0805064C	COVER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90533005	HEXAGON HEAD BOLT (COMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90863802	HEXAGON HEAD BOLT (COMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90692402	POP RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	420805733	RETAINER FOR BATTERY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10609204	HEXAGON COLLAR NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0806217B	REINFORCEMENT FOR SIDE MEMBER	Enquire	To Order
	4S0806218B	REINFORCEMENT FOR SIDE MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0805246K	SLEEVE	Enquire	To Order
	4T0805245K	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0805661K	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0805509K	SLEEVE	Enquire	To Order
	4T0805510K	SLEEVE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	4T0805028K	FRONT END	4T0805028K FRONT END	-	1	Enquire
02	4T0805303C	CONNECTING PLATE	4T0805303C CONNECTING PLATE	-	1	Enquire
03	4S0805081C	SHEET	4S0805081C SHEET	-	1	Enquire
05	4S0805457B	SUPPORT	4S0805457B SUPPORT	-	1	Enquire
05	4S0805458B	SUPPORT	4S0805458B SUPPORT	-	1	Enquire
06	4T0805585D	SHEET	4T0805585D SHEET	-	1	Enquire
07	4T1805914C	RETAINING PLATE	4T1805914C RETAINING PLATE	-	1	Enquire
07	4T0805913B	RETAINING PLATE	4T0805913B RETAINING PLATE	-	1	Enquire
08	4T0805157C	SIDE MEMBER	4T0805157C SIDE MEMBER	-	1	Enquire
08	4T0805158B	SIDE MEMBER	4T0805158B SIDE MEMBER	-	1	Enquire
09	4T0806242E	ARM ARRIVING SOON	4T0806242E ARM ARRIVING SOON	-	1	Enquire
09	4T0806241E	ARM	4T0806241E ARM	-	1	Enquire
10	4T0805816C	RETAINING PLATE	4T0805816C RETAINING PLATE	-	1	Enquire
10	4T0805815C	RETAINING PLATE	4T0805815C RETAINING PLATE	-	1	Enquire
12	4T0806812B	BRACKET	4T0806812B BRACKET	-	1	Enquire
12	4T0806811B	BRACKET	4T0806811B BRACKET	-	1	Enquire
13	4T0805063C	COVER PLATE	4T0805063C COVER PLATE	-	1	Enquire
13	4T0805064C	COVER PLATE	4T0805064C COVER PLATE	-	1	Enquire
16	N90533005	HEXAGON HEAD BOLT (COMBI)	N90533005 HEXAGON HEAD BOLT (COMBI)	-	4	Enquire
17	N90863802	HEXAGON HEAD BOLT (COMBI)	N90863802 HEXAGON HEAD BOLT (COMBI)	-	4	Enquire
18	N90692402	POP RIVET	N90692402 POP RIVET	-	5	Enquire
19	420805733	RETAINER FOR BATTERY	420805733 RETAINER FOR BATTERY	-	1	Enquire
20	N10609204	HEXAGON COLLAR NUT	N10609204 HEXAGON COLLAR NUT	-	1	Enquire
21	4S0806217B	REINFORCEMENT FOR SIDE MEMBER	4S0806217B REINFORCEMENT FOR SIDE MEMBER	-	1	Enquire
21	4S0806218B	REINFORCEMENT FOR SIDE MEMBER	4S0806218B REINFORCEMENT FOR SIDE MEMBER	-	1	Enquire
22	4T0805246K	SLEEVE	4T0805246K SLEEVE	-	1	Enquire
22	4T0805245K	SLEEVE	4T0805245K SLEEVE	-	1	Enquire
23	4T0805661K	SLEEVE	4T0805661K SLEEVE	-	1	Enquire
24	4T0805509K	SLEEVE	4T0805509K SLEEVE	-	1	Enquire
24	4T0805510K	SLEEVE	4T0805510K SLEEVE	-	1	Enquire
